Morel TSCW 636

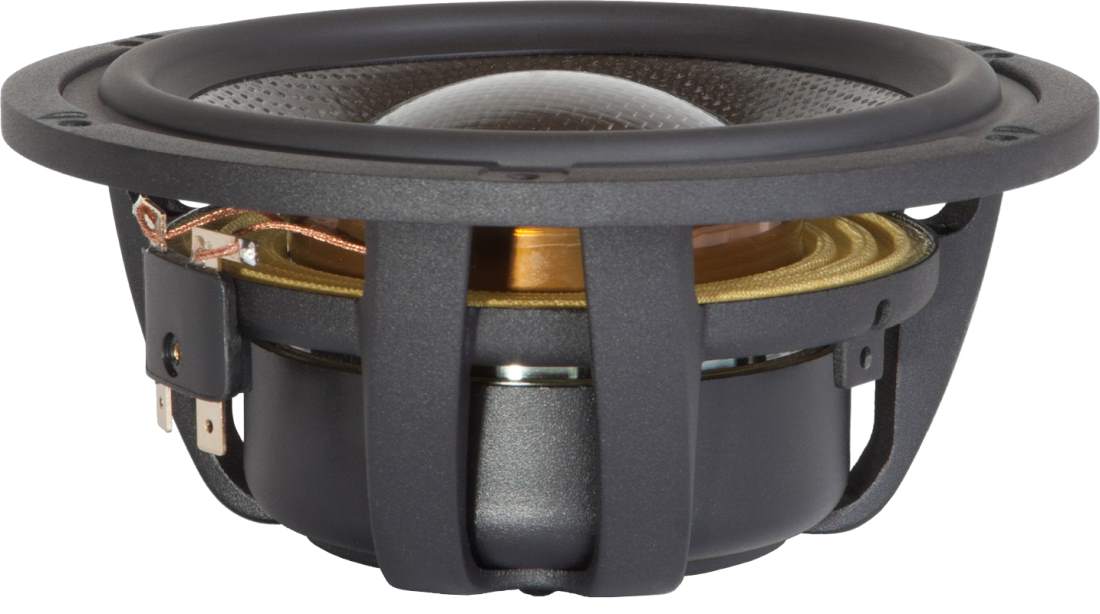

Morel's TSCW634 Supreme Coppersleeve Midrange neodymium/ferrite hybrid motor structure is combined with a cutting-edge cast alloy chassis for maximum performance. This Uniflow frame provides a reflection-free backwave, while virtually eliminating any excursion noise. The composite sandwich cone facilitates smooth, accurate frequency response.

Specifications

• power handling (continuous/programme) = 150 W
• frequency range = 45-6000 Hz
• resonance frequency fs = 43 Hz

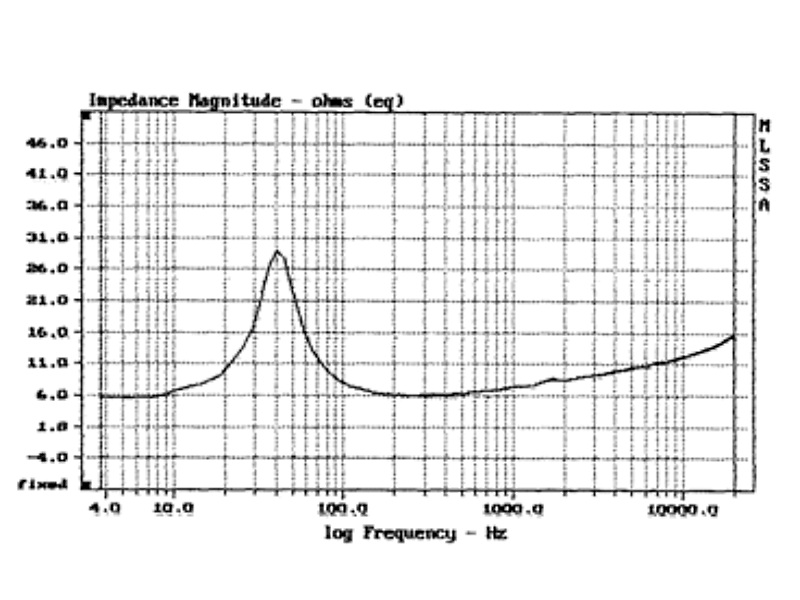

• impedance R = 6 Ohm

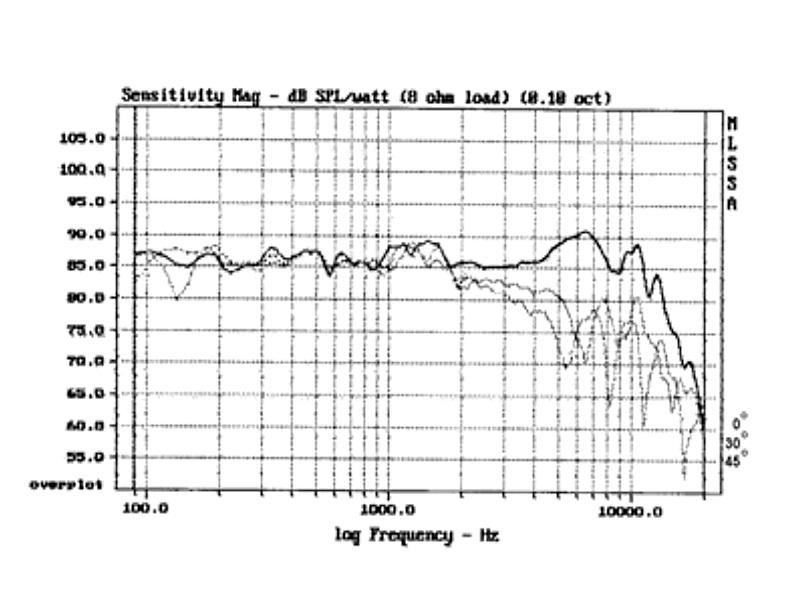

• sound pressure level SPL = 88,5 dB (2,83V; 1m)
• DC resistance Re = 4,5 Ohm
• force factor BL = 7,9 N/A
• voice coil inductance L = 0,26 mH
• effective piston radiating area Sd = 119 cm²
• effective mechanical mass incl. air load mms = 19 g
• equivalent volume of compliance Vas = 13,3 l
• total Q factor Qts = 0,35 (Qms=3,8, Qes=0,39)
• voice coil diameter = 75 mm
• maximum peak linear excursion vibration x_lin = +/- 5 mm

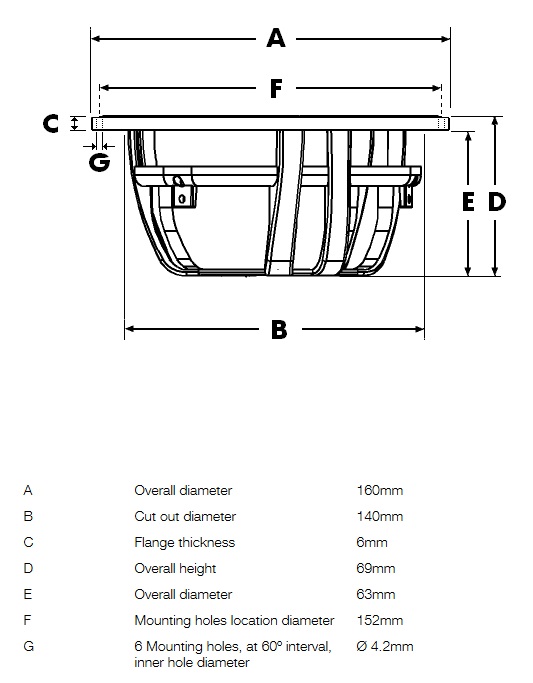

• mounting diameter d = 140 mm
• overall diameter d = 160 mm
• mounting depth (not countersunk) t = 63 mm
