Scan-Speak 18W/8545-01

€160.07 *

Prices incl. VAT plus shipping costs

Delivery time 1-2 Workdays

  • 7385450
The Scan-Speak 18W/8545-01 6.5" Mid Woofer is an improved version of the highly praised... more
Product information "Scan-Speak 18W/8545-01"

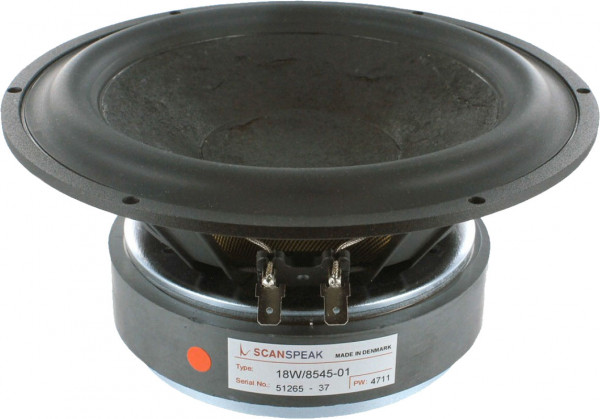

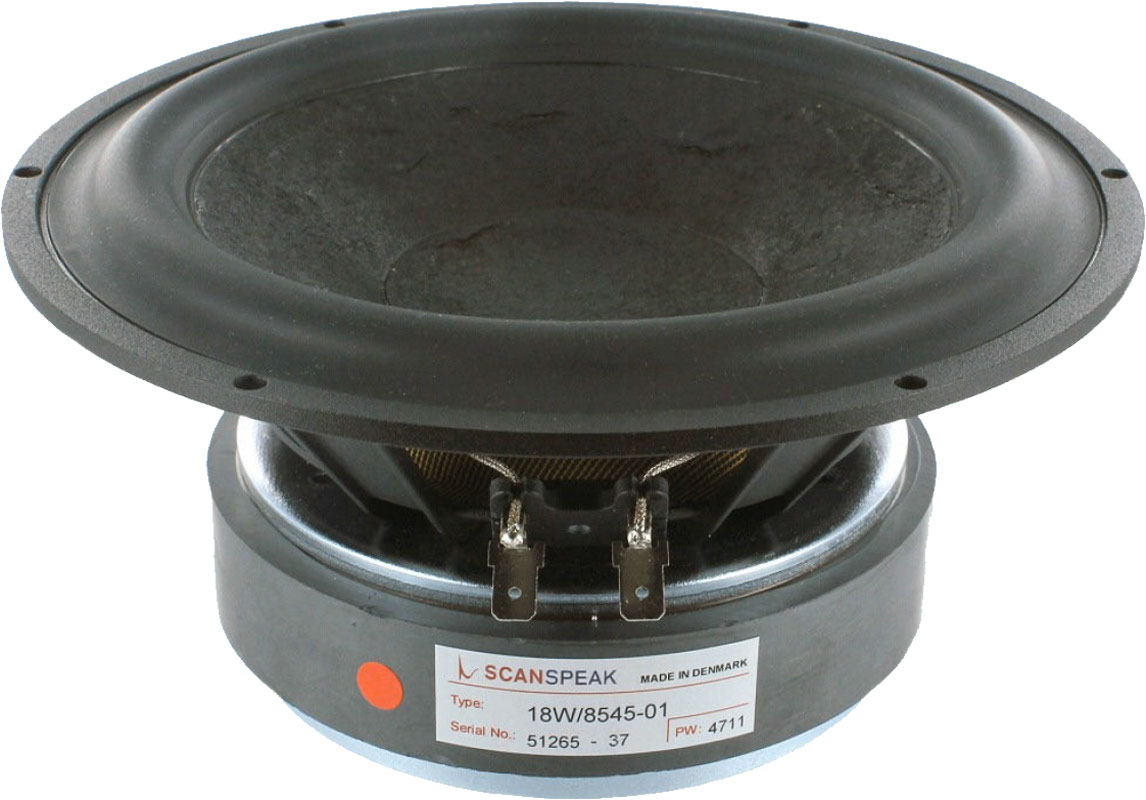

The Scan-Speak 18W/8545-01 6.5" Mid Woofer is an improved version of the highly praised 18W/8545-00 midwoofer, where a new aluminum chassis, an updated cone and a new spider as wells as a few other details are introduced, these updates improves mechanical stability and sound performance. High-quality magnet system design with patented Symmetric Drive (SD-1) continues to be key feature.

  • Patented Symmetrical Drive Motor Design
  • 42mm Voice Coil w. Alu foil
  • Low Damping SBR Rubber Surround
  • Coated Air Dried Paper/Carbon Fibre Cone
  • Low-Loss linear suspension
  • Aluminium Chassis



Specifications

  • power handling (continuous/programme) = 100 W

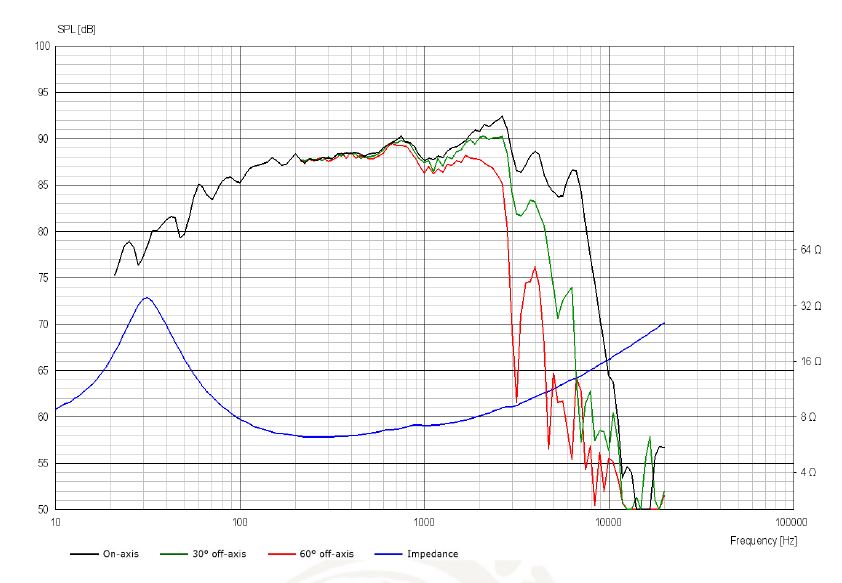

  • frequency range = 25-3000 Hz
  • resonance frequency fs = 25 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 8,4 N/A
  • voice coil inductance L = 0,39 mH
  • effective piston radiating area Sd = 145 cm2
  • effective mechanical mass incl. air load mms = 18 g
  • equivalent volume of compliance Vas = 68,6 l
  • total Q factor Qts = 0,19 (Qms=1,55, Qes=0,22)
  • voice coil diameter = 42 mm
  • maximum peak linear excursion vibration xlin = +/- 6,5 mm

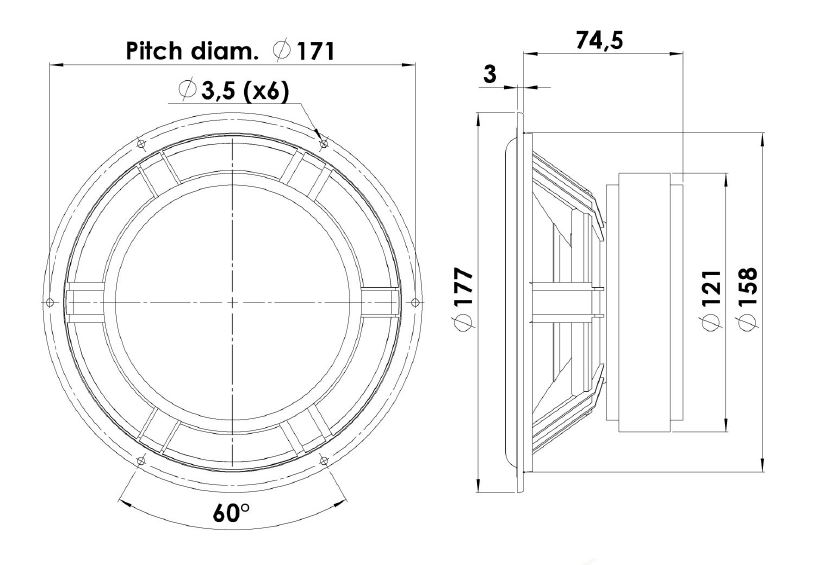

  • mounting diameter d = 158 mm
  • overall diameter d = 177 mm
  • mounting depth (not countersunk) t = 77,5 mm
