Scan-Speak D2904/7100.03

€256.14 *

Prices incl. VAT plus shipping costs

Delivery time 1-2 Workdays

  • 7371003
The Scan-speak D2904/7100.03 tweeter is a 1" soft dome with wide surround, using the same... more
Product information "Scan-Speak D2904/7100.03"

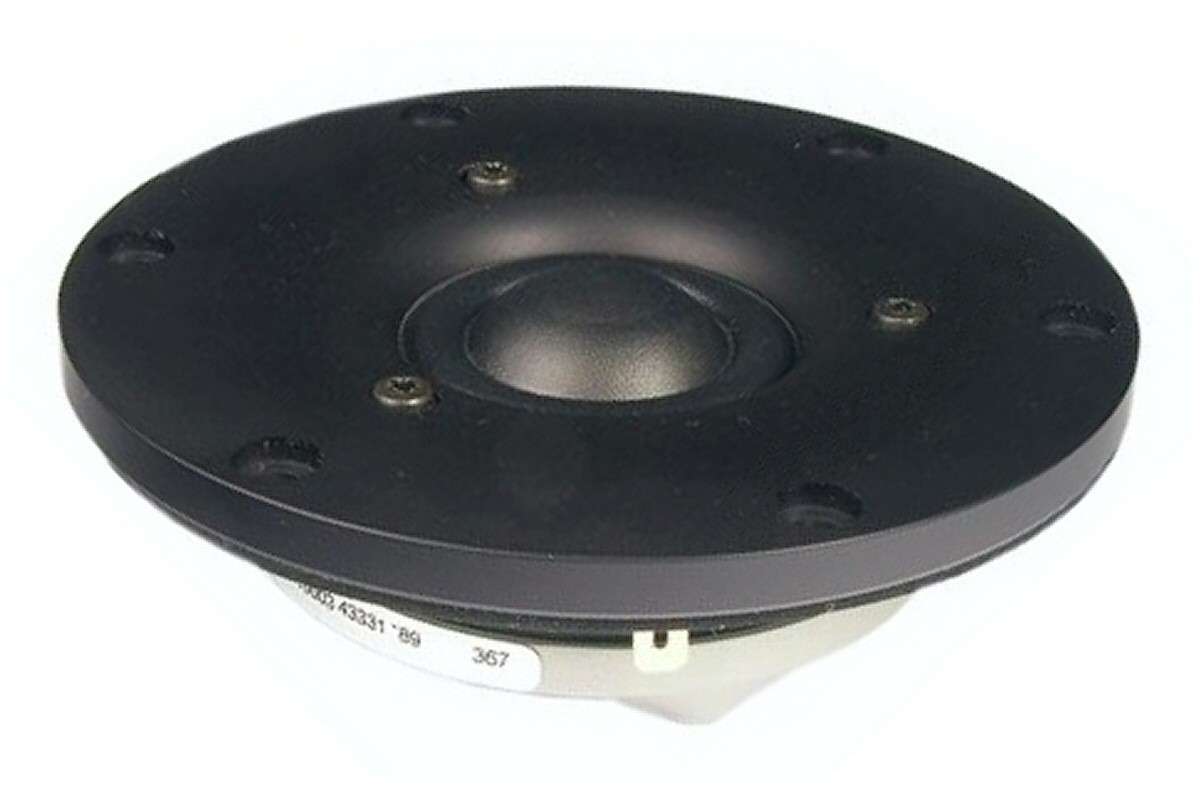

The Scan-speak D2904/7100.03 tweeter is a 1" soft dome with wide surround, using the same chambering as the Ring Radiator.

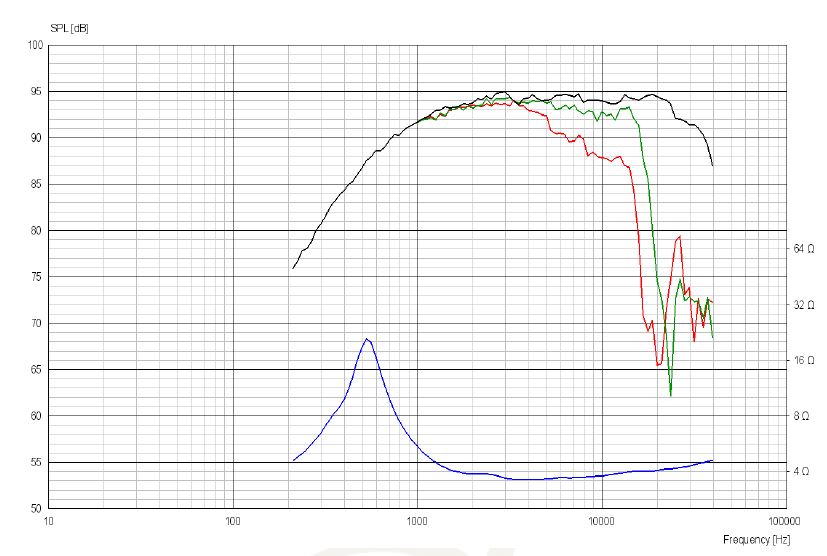

The carefully designed dome and surround result in a linear response and an exceptionally good off axis response. Note the smooth roll off on the low end, making this tweeter a good choice for simple slopes
A specially designed venting system uses a needle to cut down on turbulence in the air cavity. Better dynamics are achieved by not using ferrofluid, voice coil cooling is performed by the venting system and conduction through copper rings. The new SD-2 neodymium magnet system improves transient response.



Specifications

  • power handling (continuous/programme) = 90/150 W
  • frequency range = 1000-30000 Hz
  • resonance frequency fs = 520 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 94,4 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 2,8 N/A
  • voice coil inductance L = 0,01 mH
  • effective piston radiating area Sd = 7 cm2
  • effective mechanical mass incl. air load mms = 0,4 g
  • equivalent volume of compliance Vas = 0,02 l
  • total Q factor Qts = 0,44 (Qms=3,5, Qes=0,5)
  • voice coil diameter = 26 mm
  • maximum peak linear excursion vibration xlin = +/- 0,2 mm

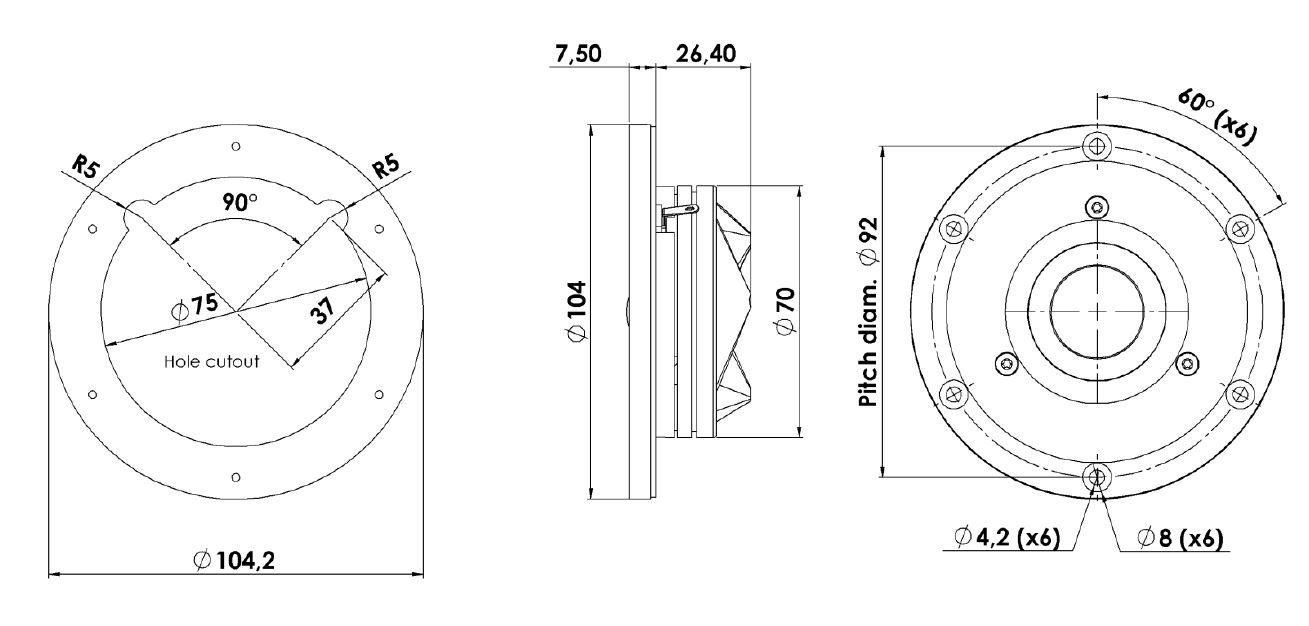

  • mounting diameter d = 70 mm
  • overall diameter d = 104,2 mm
  • mounting depth (not countersunk) t = 33,9 mm
