Seas W22EX001 E0022-08S

€320.81 *

Prices incl. VAT plus shipping costs

Delivery time 1-3 Workdays

  • 1346771
Seas W22EX001 E0022-08S Magnesium Cone Woofer Precision cast and surface treated magnesium... more
Product information "Seas W22EX001 E0022-08S"

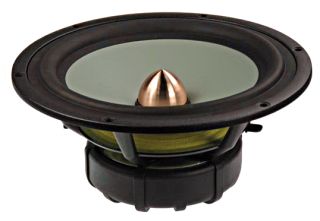

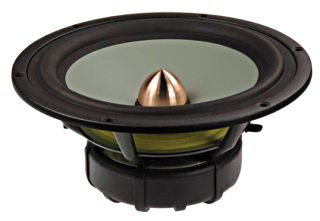

Seas W22EX001 E0022-08S Magnesium Cone Woofer

Precision cast and surface treated magnesium cone coupled to a natural rubber surround showing no sign of midrange (edge) resonances.

Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin.

Extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment.

Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.

A solid copper phase plug enhances the performance of the copper rings and improves heat conduction away from the pole piece.

Gold plated terminals mounted on a glass fibre reinforced plate to reduce contact resistance and improve reliability.

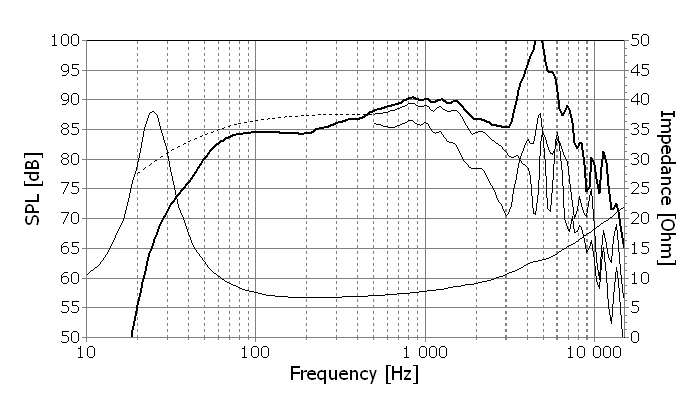

Specifications

  • power handling (continuous/programme) = 120/300 W
  • frequency range = 30-2000 Hz
  • resonance frequency fs = 25 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 6,1 Ohm
  • force factor BL = 8,1 N/A
  • voice coil inductance L = 0,61 mH
  • effective piston radiating area Sd = 220 cm2
  • effective mechanical mass incl. air load mms = 26,2 g
  • equivalent volume of compliance Vas = 98 l
  • total Q factor Qts = 0,34 (Qms=2,14, Qes=0,41)
  • voice coil diameter = 39 mm

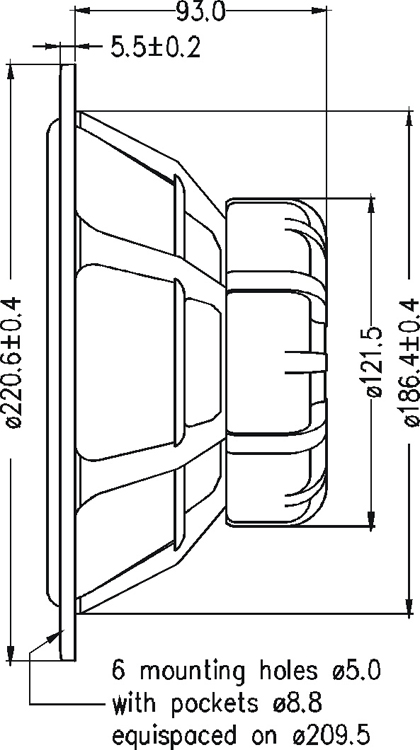

  • mounting diameter d = 186,4 mm
  • overall diameter d = 220,6 mm
  • mounting depth (not countersunk) t = 93 mm
