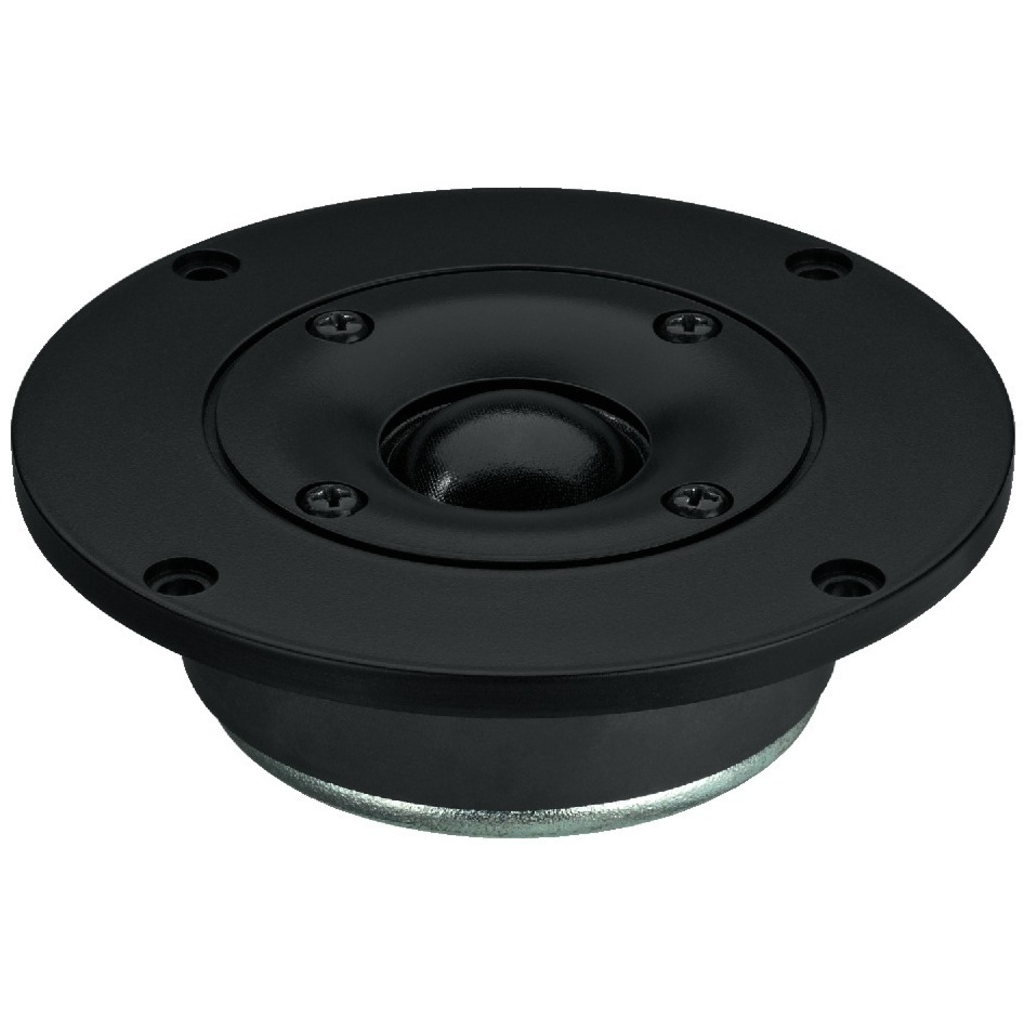

Monacor DTM-104/4

€27.75 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • mon-dtm104-4
Hi-fi dome tweeters, 100W MAX , 8Ω (/8) and 4Ω (/4) Textile dome tweeter with Kapton voice... more
Product information "Monacor DTM-104/4"
Hi-fi dome tweeters, 100WMAX, 8Ω (/8) and 4Ω (/4)
  • Textile dome tweeter with Kapton voice coil former
  • Excellent radiation pattern due to waveguide
  • Very well-suited as a replacement for high-quality hi-fi speakers



Impedance (Z)                       4Ω
Resonant frequency (fs)          1,200Hz
Max. frequency range             fx-19,000Hz
Rec. crossover freq. (12dB)     2,500Hz
Music power                          100WMAX
Power rating                          45WRMS
SPL (1W/m)                          92dB

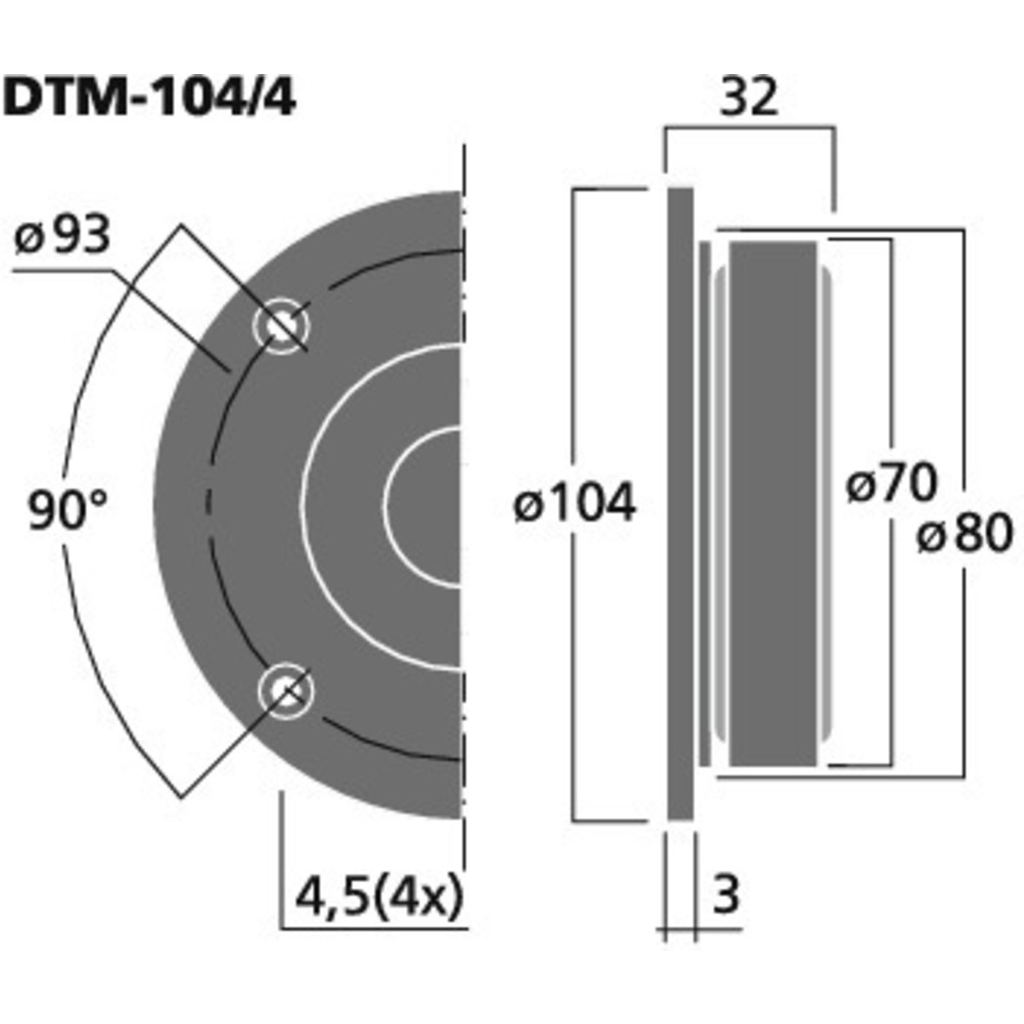

Voice coil diameter                 25mm
Magnet diameter                    70mm
Mounting cutout                     Ø 80mm
Mounting depth                      32mm
Dimensions                           Ø 104mm
Weight                                  520g
