Monacor DT-105

€24.75 *

Prices incl. VAT plus shipping costs

Delivery time 1-3 Workdays

  • SW10138
Hi-fi dome tweeter, 30 W, 8 Ω Classic textile soft dome with coating Very... more
Product information "Monacor DT-105"

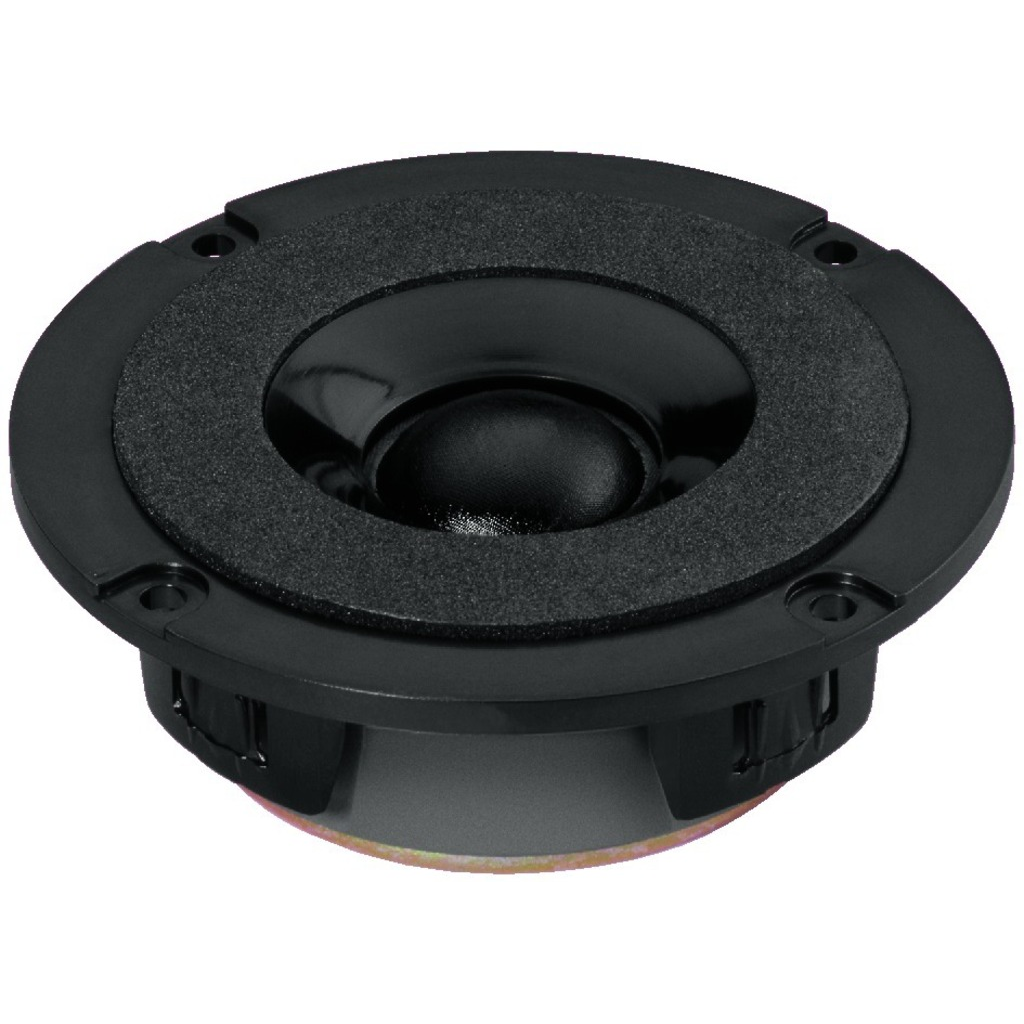

Hi-fi dome tweeter, 30 W, 8 Ω

  • Classic textile soft dome with coating
  • Very high linearity up to the brilliance frequency range
  • Especially soft reproduction of high frequencies
  • 25 mm dome tweeter with fabric dome.

Specifications

  • power handling (continuous/programme) = 30/50 W

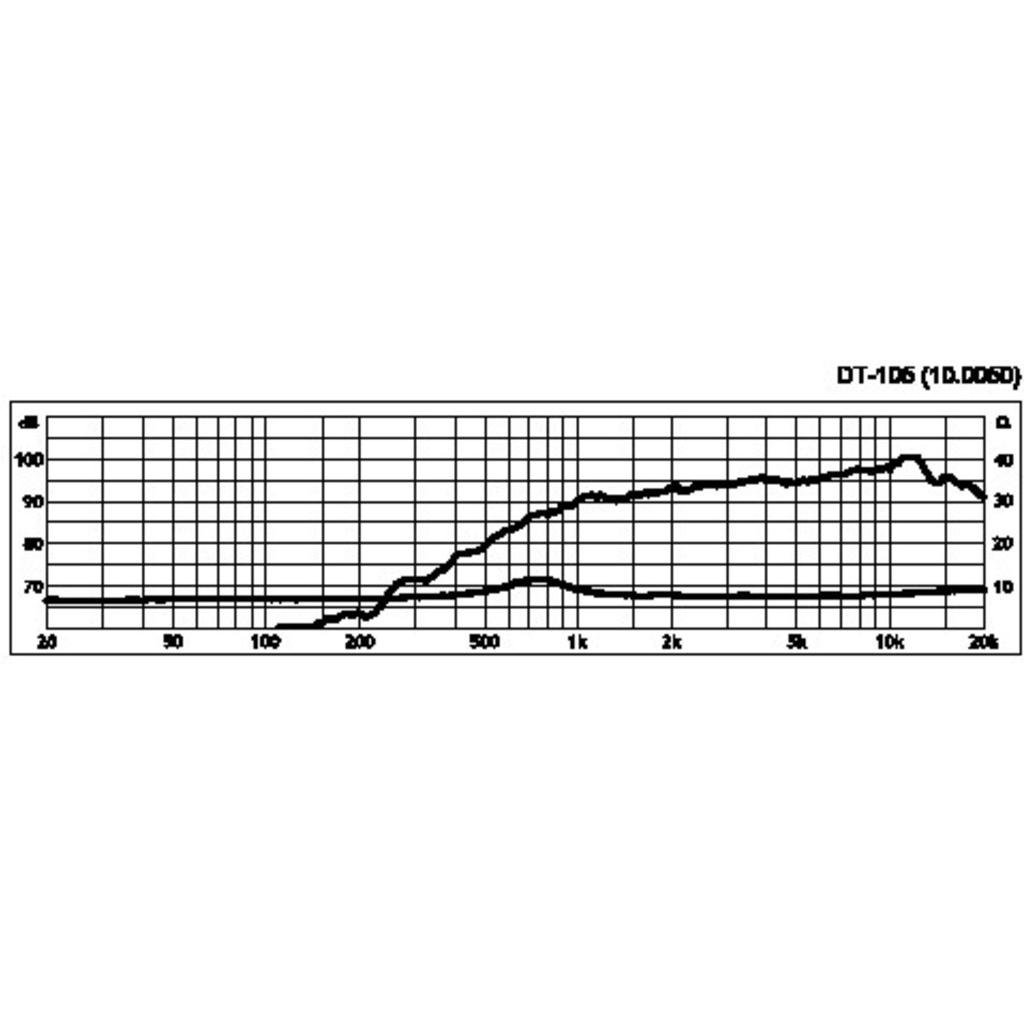

  • frequency range = 2000-20000 Hz
  • resonance frequency fs = 1500 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • voice coil diameter = 25 mm

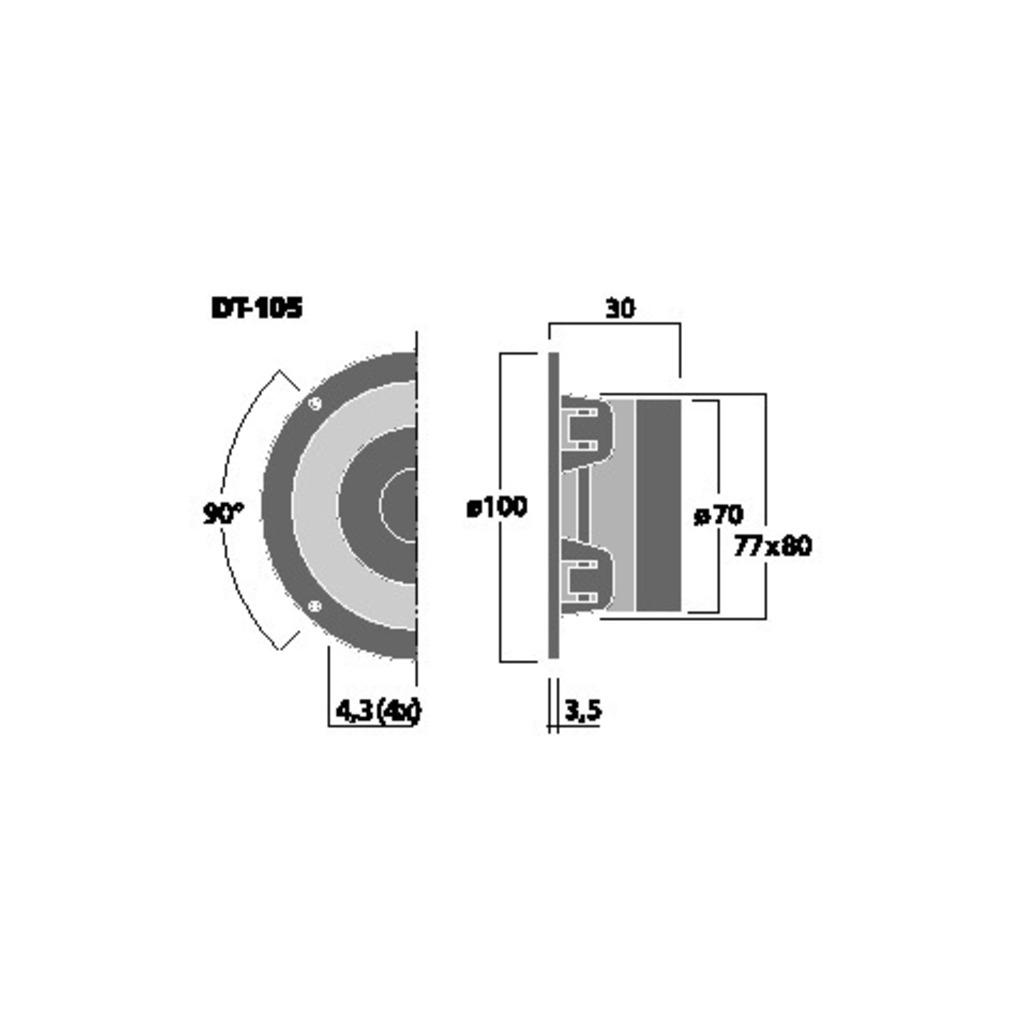

  • mounting diameter d = 80 mm
  • overall diameter d = 100 mm
  • mounting depth (not countersunk) t = 30 mm
  • mass m = 0,5 kg
