SB Acoustics SATORI TW29DN

€149.00 *

Prices incl. VAT plus shipping costs

Delivery time 1-3 Workdays

  • SW10925
SB Acoustics SATORI TW29DN Dome Tweeter Large surround dome for increased acoustic output... more
Product information "SB Acoustics SATORI TW29DN"

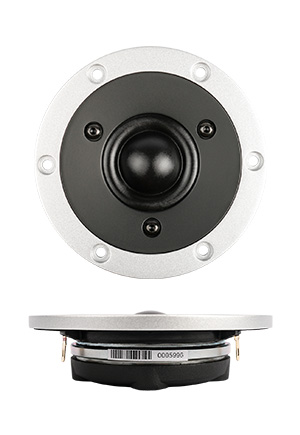

SB Acoustics SATORI TW29DN Dome Tweeter

  • Large surround dome for increased acoustic output
  • Dual balanced compression chamber for improved dynamics
  • Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
  • Two part aluminium faceplate with integrated mechanical decoupling
  • High saturation neodymium motor system with T-shaped pole piece for lower distortion
  • Non-reflective cast aluminium chamber with optimized damping for improved dynamics
  • Shallow flow optimized magnet structure for optimum coupling to rear chamber
  • CCAW voice coil for low moving mass
  • Long life silver lead wires
  • Low resonance frequency for extended range



  • power handling (continuous/programme) = 80 W
  • resonance frequency fs = 650 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 3,1 N/A
  • voice coil inductance L = 0,02 mH
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,45 g
  • total Q factor Qts = 0,43 (Qms=1,66, Qes=0,57)
  • voice coil diameter = 29 mm
  • maximum peak linear excursion vibration xlin = +/- 0,25 mm

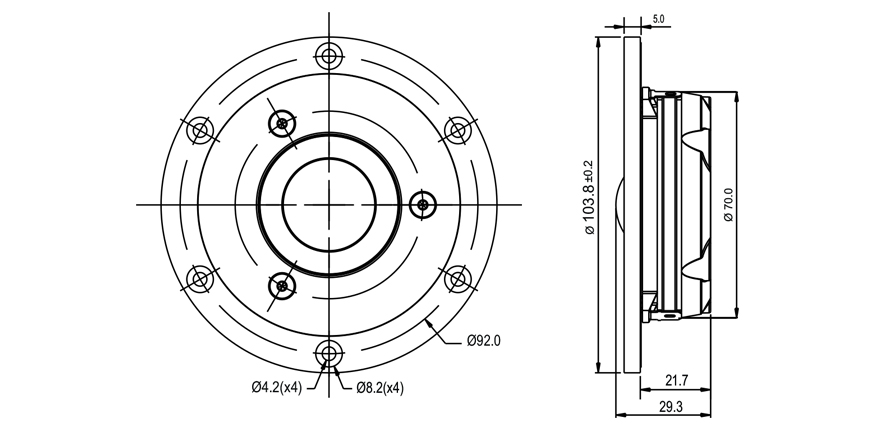

  • mounting diameter d = 70 mm
  • overall diameter d = 103,8 mm
  • mounting depth (not countersunk) t = 29,3 mm
