Visaton DSM 50 FFL

€100.84 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • vi-1163
Visaton DSM 50 FFL   50 mm (2") High-End titanium dome driver for the midrange band... more
Product information "Visaton DSM 50 FFL"

Visaton DSM 50 FFL

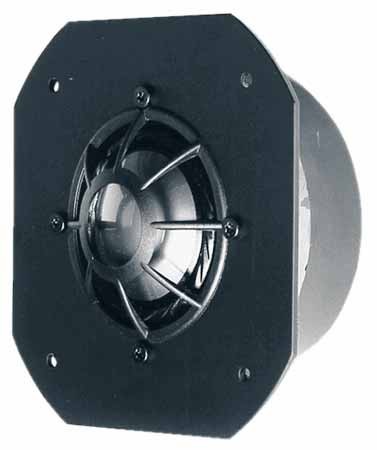

50 mm (2") High-End titanium dome driver for the midrange band between 800 and 5000 Hz. Due to the enormously strong and ultra-light titanium dome and in conjunction with a highly damped surround, linear frequency response and no partial oscillations. Due to the enormously high magnetic flux in the ferrofluid-filled air-gap a high efficiency and high power handling are possible.



Specifications

  • power handling (continuous/programme) = 120/180 W

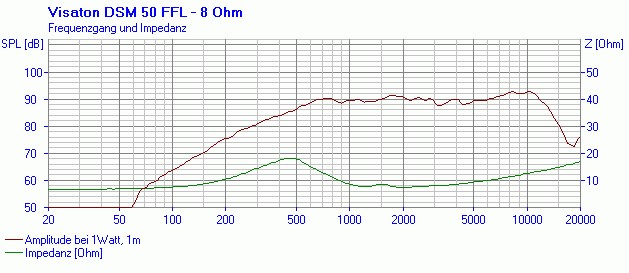

  • frequency range = 400-15000 Hz
  • resonance frequency fs = 600 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • voice coil diameter = 50 mm

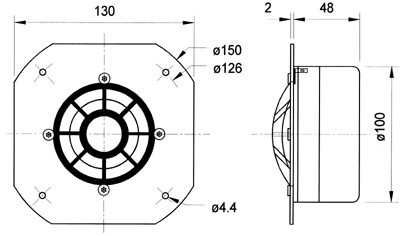

  • mounting diameter d = 106 mm
  • overall diameter d = 150 mm
  • mounting depth (not countersunk) t = 48 mm
