Dayton Audio RS125-4

€65.32 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • da-rs125-4
The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker... more
Product information "Dayton Audio RS125-4"

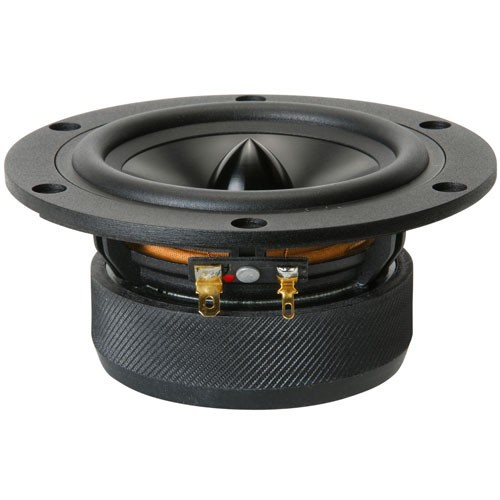

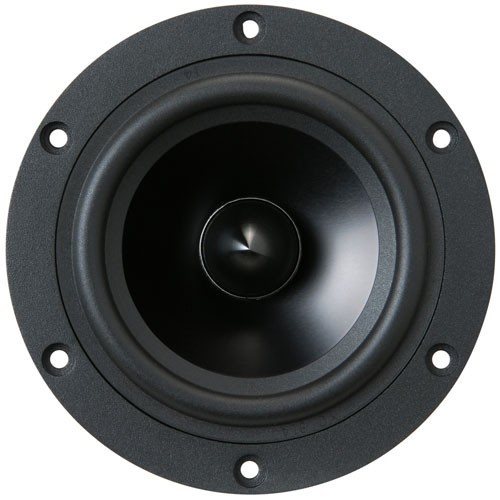

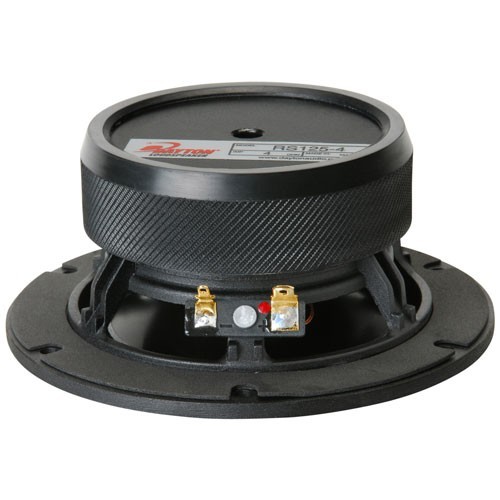

The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminum phase plug, rubber magnet boot, and gold terminals.

Product Highlights

• 4 ohm impedance is perfect for series pairs in MTMs and center channel speakers
• Excellent car audio midrange/midbass
• High-end low-distortion motor with two shorting paths to reduce inductance


  • power handling (continuous/programme) = 30 W
  • frequency range = 65-4500 Hz
  • resonance frequency fs = 76 Hz

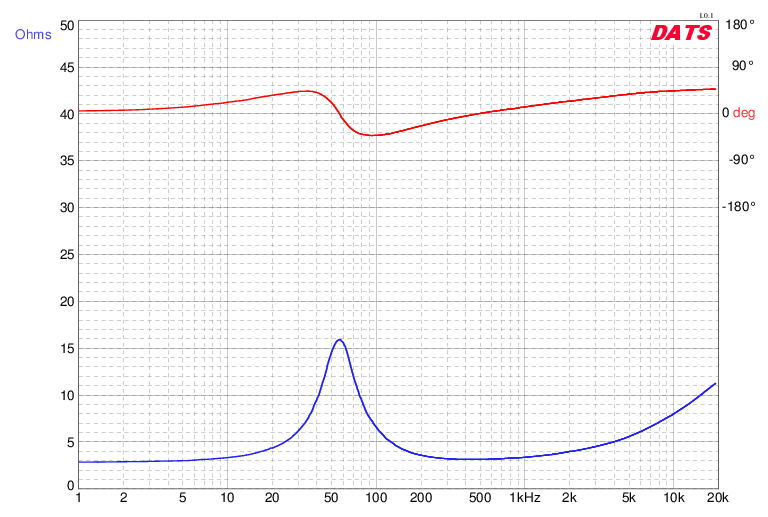

  • impedance R = 4 Ohm
  • DC resistance Re = 3 Ohm
  • force factor BL = 3,35 N/A
  • voice coil inductance L = 0,41 mH
  • effective piston radiating area Sd = 52,8 cm2
  • effective mechanical mass incl. air load mms = 5,93 g
  • equivalent volume of compliance Vas = 2,9 l
  • total Q factor Qts = 0,63 (Qms=3,97, Qes=0,75)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm

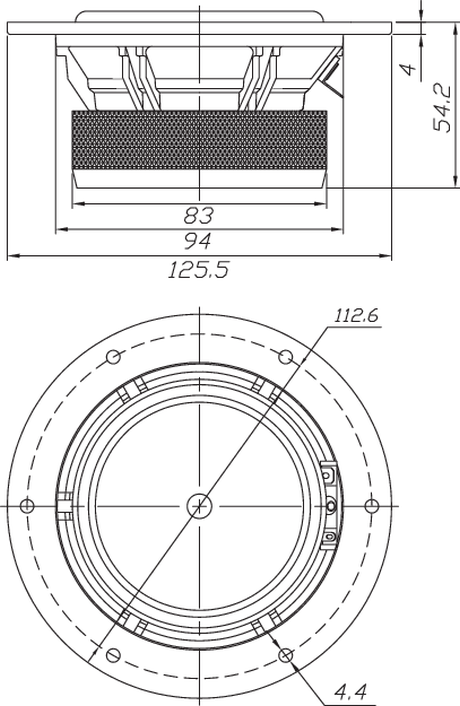

  • mounting diameter d = 94 mm
  • overall diameter d = 125,5 mm
  • mounting depth (not countersunk) t = 54,2 mm
