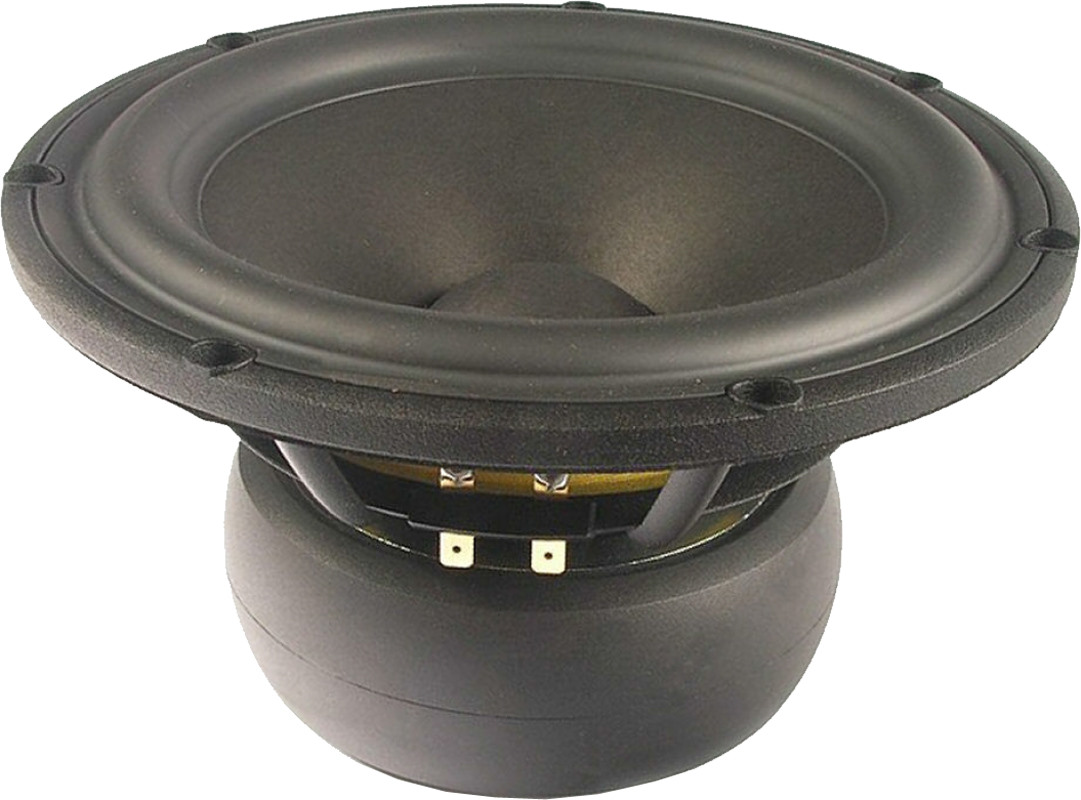

Scan-Speak 22W/4851T00 8" Woofer, Paper Cone, 4 ohm
The Scan-speak 22W/4851T is a new addition to the Revelator line. This robust 8" woofer was designed to provide deep and accurate bass in a small enclosure. This woofer features a 2" voice coil on a titanium former, a low loss linear suspension and symmetric drive motor. The deep set hard paper cone is attached to the frame with a minimal reflection rubber surround. The 9mm X-max ensures good linear travel.
Specifications
power handling (continuous/programme) = 170 W

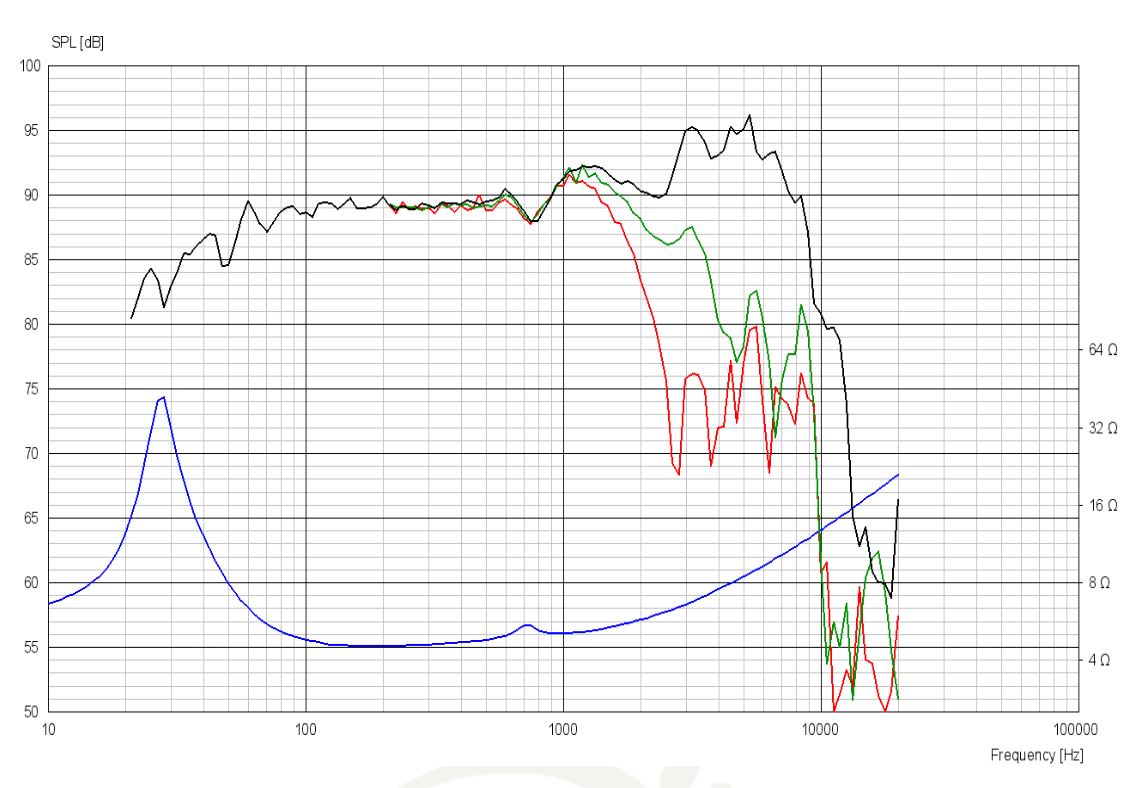

frequency range = 20-1000 Hz
resonance frequency fs = 21 Hz
impedance R = 4 Ohm
sound pressure level SPL = 89 dB (2,83V; 1m)
DC resistance Re = 3,7 Ohm
force factor BL = 8,2 N/A
voice coil inductance L = 0,3 mH
effective piston radiating area Sd = 220 cm2
effective mechanical mass incl. air load mms = 32,5 g
equivalent volume of compliance Vas = 126 l
total Q factor Qts = 0,22 (Qms=5,2, Qes=0,23)
voice coil diameter = 50 mm
maximum peak linear excursion vibration xlin = +/- 9 mm
