Scan-Speak 22W/8857T00

€290.21 *

Prices incl. VAT plus shipping costs

Delivery time 1-2 Workdays

  • 7388570
Scan-Speak 22W/8857T00 8" Woofer, Aluminum Cone Black aluminum cone Cast frame (very... more
Product information "Scan-Speak 22W/8857T00"

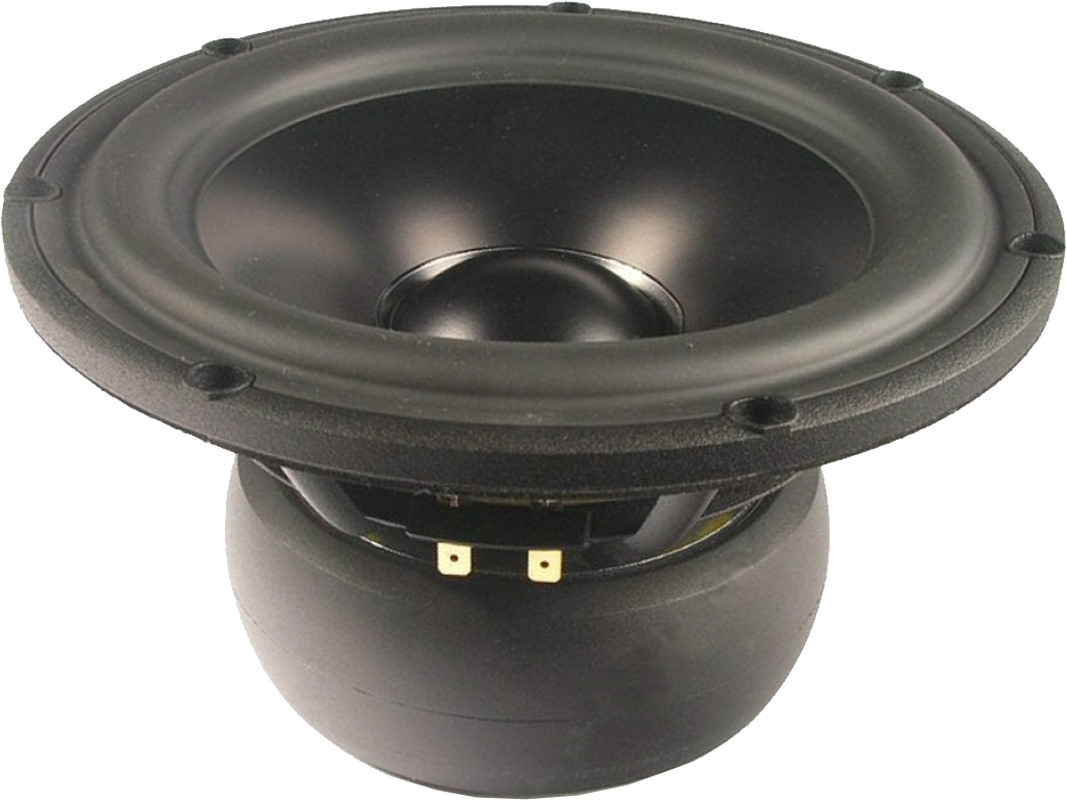

Scan-Speak 22W/8857T00 8" Woofer, Aluminum Cone

  • Black aluminum cone
  • Cast frame (very robust, yet stylish)
  • Large vented pole piece
  • SD-1 motor system

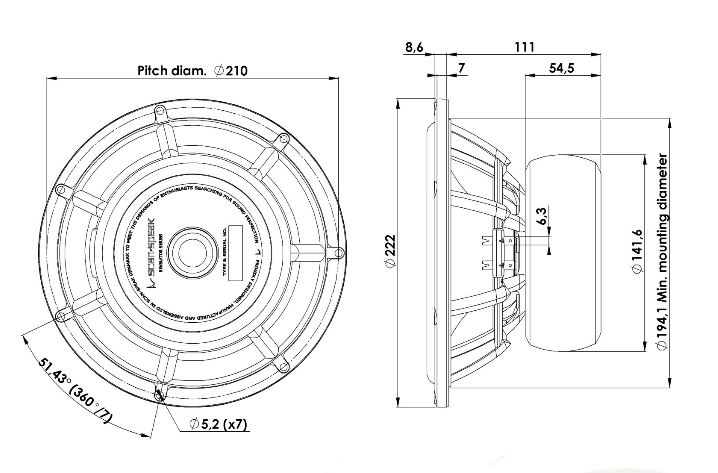

  • Frame diameter 222mm
  • Cut out hole size 194.1mm
  • Flange thickness 7mm
  • Depth 111mm

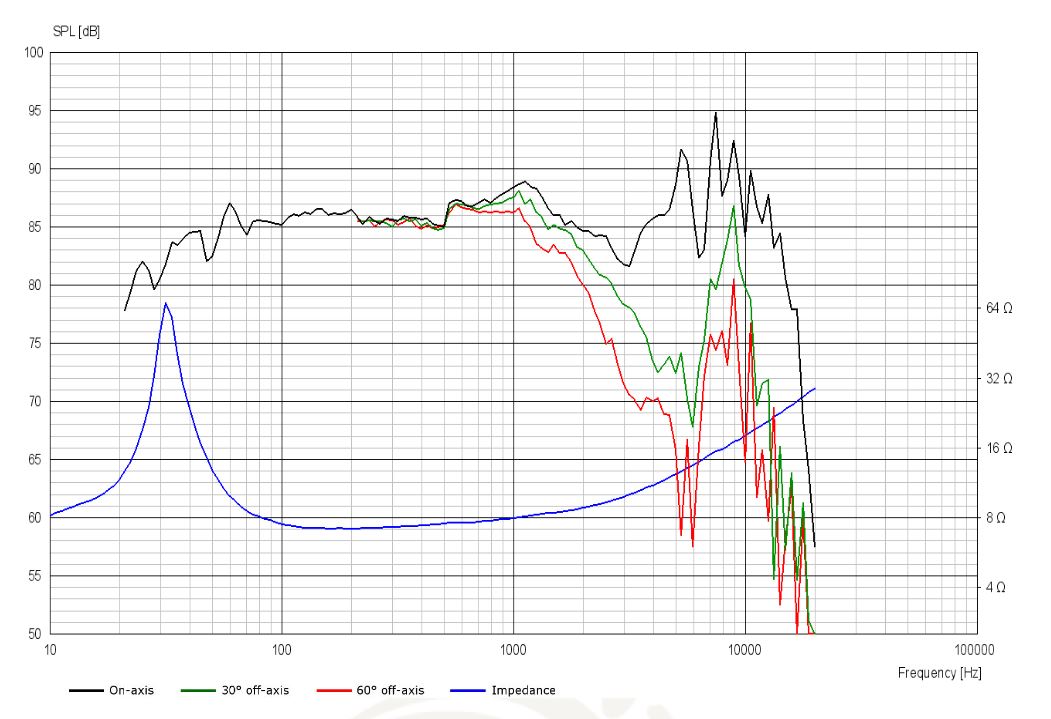

Specifications

  • power handling (continuous/programme) = 170 W
  • frequency range = 20-1000 Hz
  • resonance frequency fs = 23 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 10,1 N/A
  • voice coil inductance L = 0,35 mH
  • effective piston radiating area Sd = 220 cm2
  • effective mechanical mass incl. air load mms = 37 g
  • equivalent volume of compliance Vas = 87,7 l
  • total Q factor Qts = 0,3 (Qms=4,9, Qes=0,32)
  • voice coil diameter = 50 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm
  • mounting diameter d = 194 mm
  • overall diameter d = 222 mm
  • mounting depth (not countersunk) t = 118 mm
