Eton 5-512/C8/25 RP

€105.60 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • 1381373
5“ bass-midrange driver for multiple usage, serrated paper membrane geometry, noncommitted sound... more
Product information "Eton 5-512/C8/25 RP"

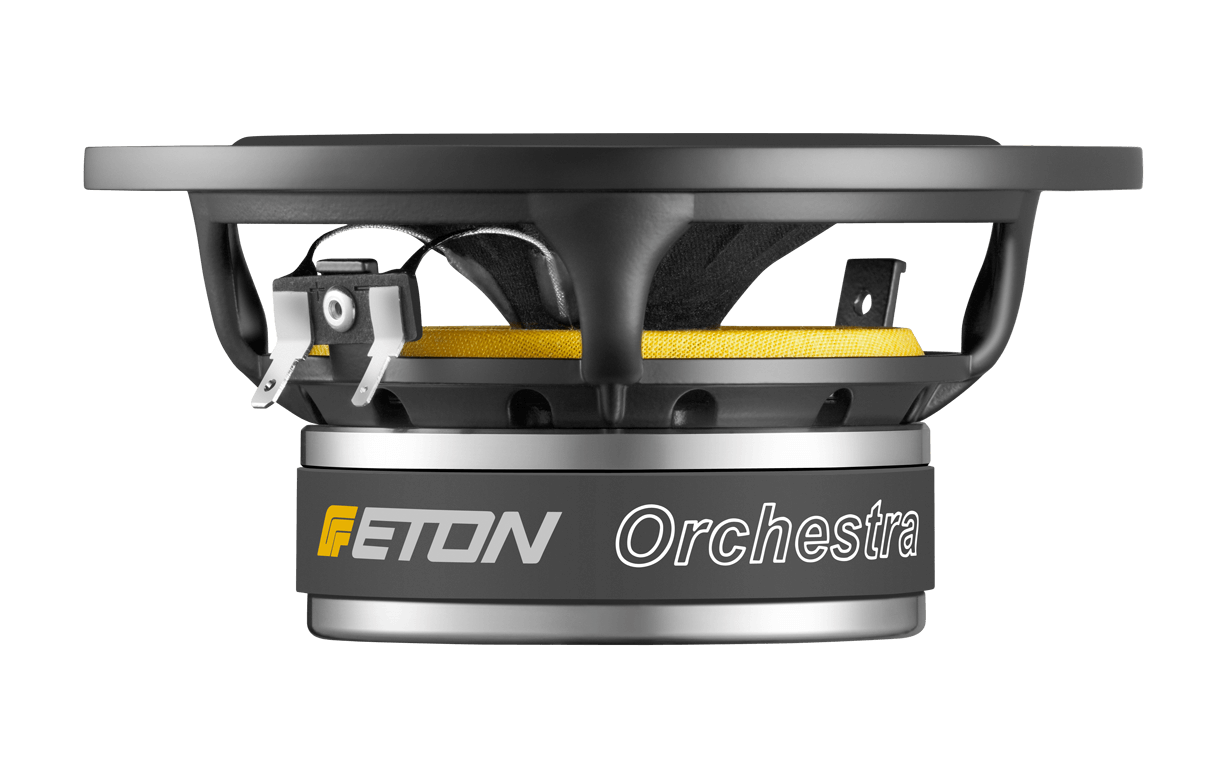

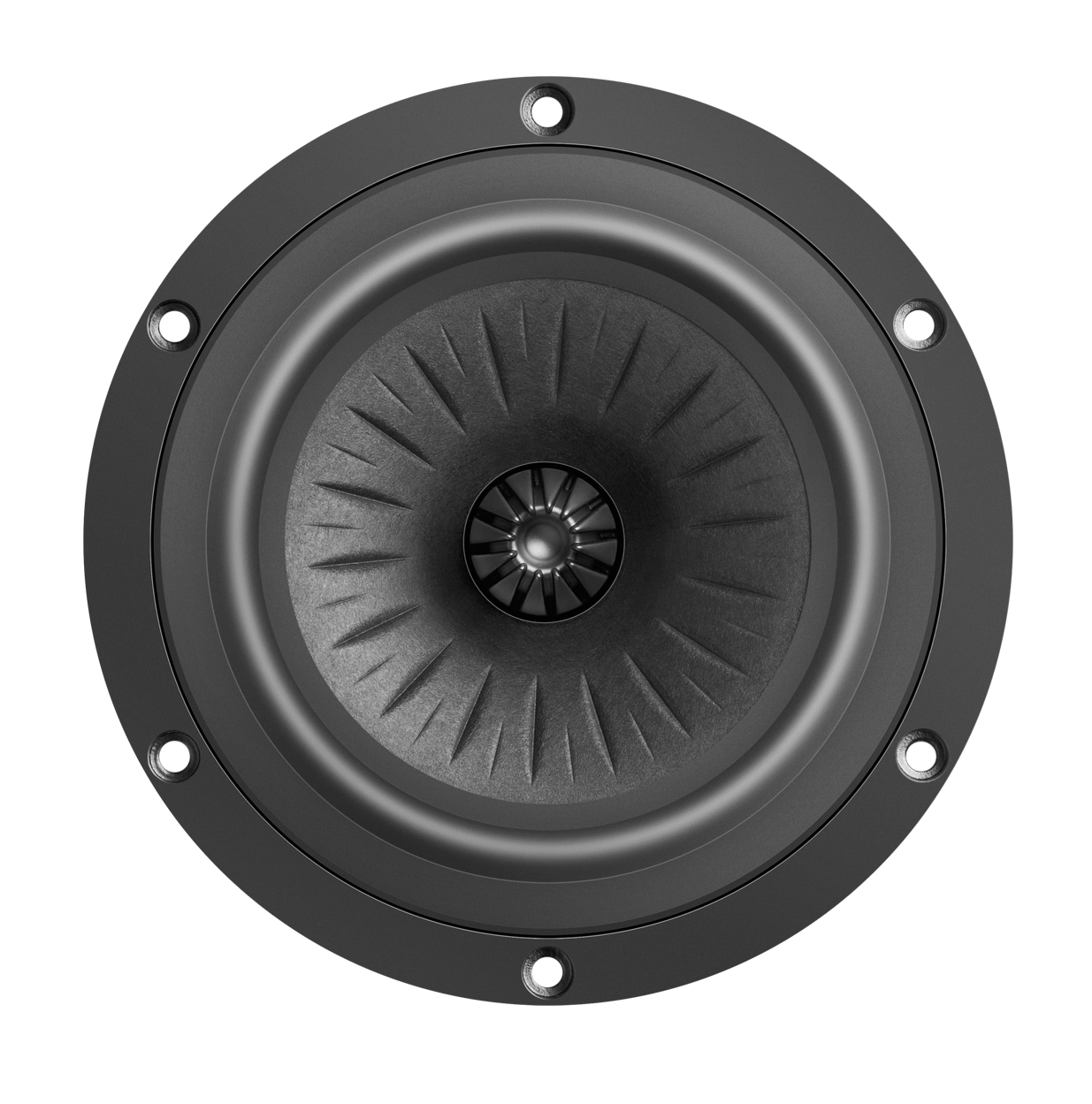

5“ bass-midrange driver for multiple usage, serrated paper membrane geometry, noncommitted sound character with harmonic, warm midrange and a solid bassrange, open reproduction with phase plug.



Specifications

  • power handling (continuous/programme) = 50 W
  • frequency range = 50-4000 Hz
  • resonance frequency fs = 57 Hz
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • impedance R = 8 Ohm
  • DC resistance Re = 5,4 Ohm
  • force factor BL = 5,9 N/A
  • voice coil inductance L = 0,48 mH
  • effective piston radiating area Sd = 80 cm2
  • effective mechanical mass incl. air load mms = 6,7 g
  • equivalent volume of compliance Vas = 10,0 l
  • total Q factor Qts = 0,34 (Qms=8,19, Qes=0,35)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 2,5 mm
  • mounting diameter d = 148 mm
  • overall diameter d = 120 mm
  • mounting depth (not countersunk) t = 62 mm
