Peerless SLS-213

€70.36 *

Prices incl. VAT plus shipping costs

Delivery time 1-3 Workdays

  • 830667
The Peerless SLS-213 8" Woofer P830667 combines high quality performance with an affordable... more
Product information "Peerless SLS-213"

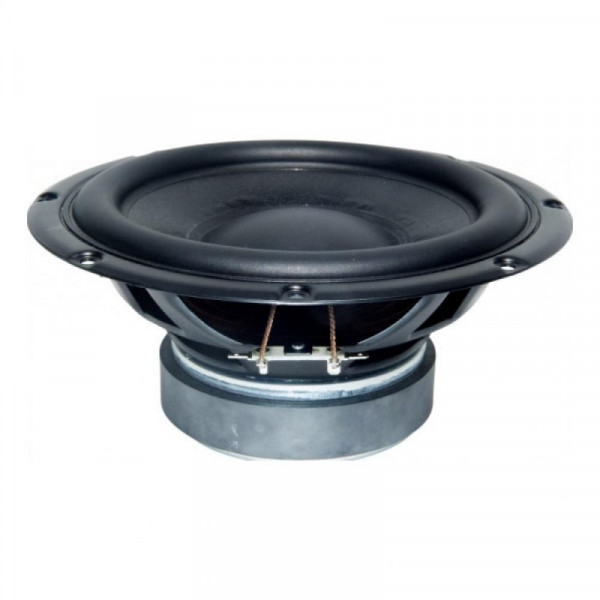

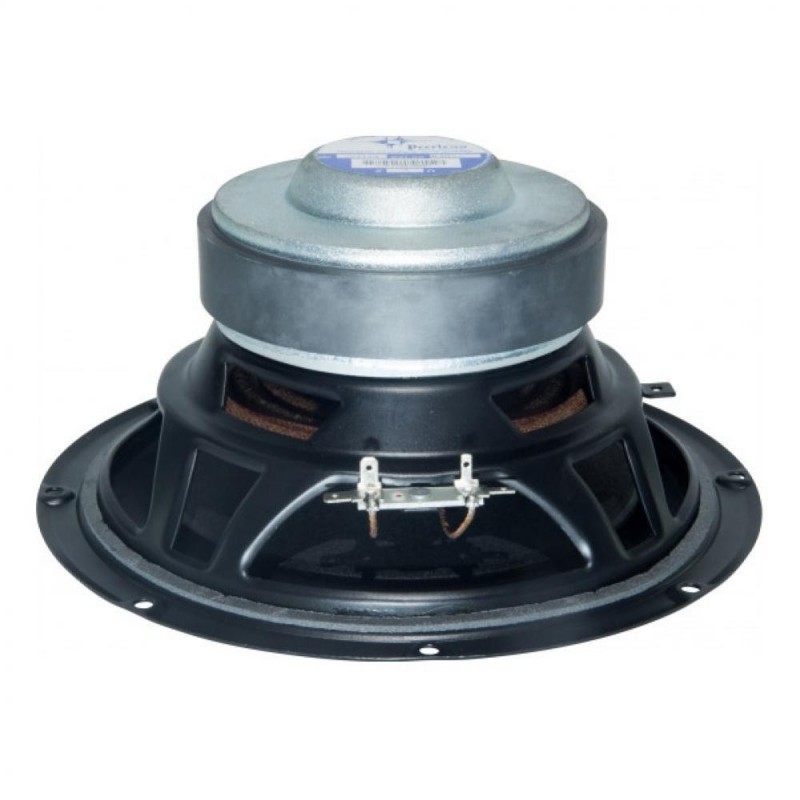

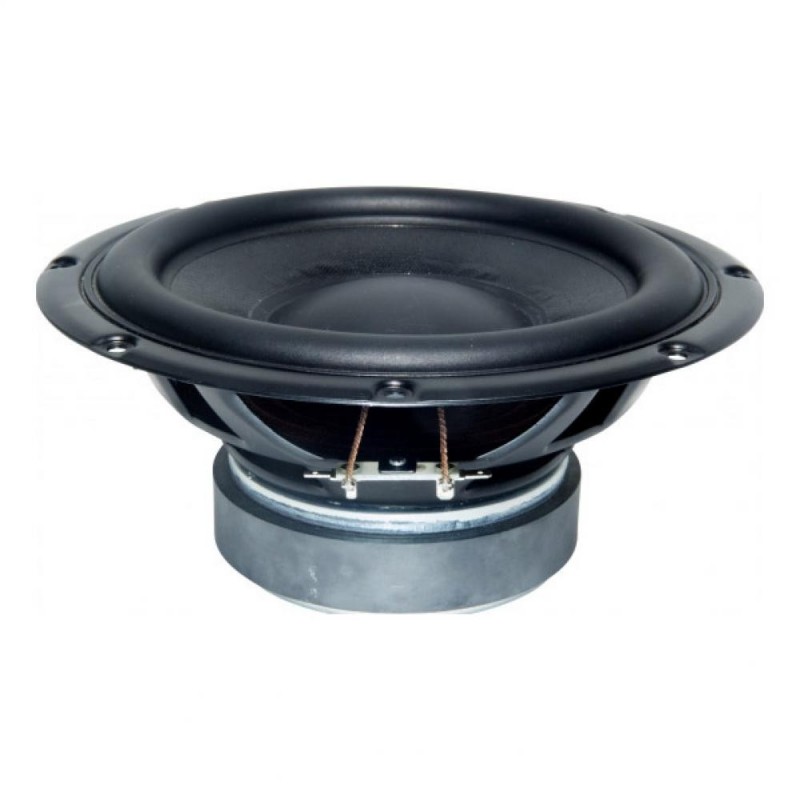

The Peerless SLS-213 8" Woofer P830667 combines high quality performance with an affordable design. This 8 inch 8 ohm member of the SLS family features a rigid steel basket, a coated paper cone, and a ferrite magnet motor with aluminium shorting ring for improved distortion performance.



Specifications

Transducer Size     8 in
DC Resistance     5.53 Ω ±5.0%
Resonant Frequency     42.19 Hz 15%
Half Space Sensitivity @ 2.83V     86.67 dB ±1.01
Sensitivity @ 1W/1m     85.6 dB ±1.01
Rated Noise Power (IEC 268-5 18.1)     90 W
Effective Piston Area     213.8 cm2
Moving Mass     34.8 g
Motor Force Factor     8.26 T•m
Voice Coil Inner Diameter     38.43 mm
Gap Height     8 mm
Maximum Linear Excursion     8.4 mm
Ferrofluid Type
Minimum Impedance     6.21 Ω ±7.5%
Voice Coil Inductance     0.78 mH
Mechanical Q Factor     5.73
Electrical Q Factor     0.75
Total Q Factor     0.66
Ratio     63.83 fs/Qts
Test Spectrum Bandwidth (1300-20000 Hz)     20Hz - 20kHz 12 dB/Oct
Energy Bandwidth Product ((1/Qes)•fs)
Suspension Compliance     409.1 um/N
Effective Cone Diameter     16.5 cm
Motor Efficiency Factor     12.3 (T•m2)/Ω
Voice Coil Former Material     GSV GSV
Transducer Mass     2.52 Kg
Equivalent Volume     26.27 L
