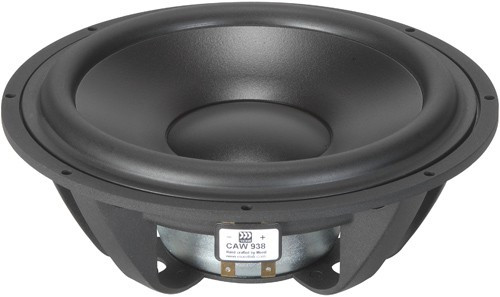

Morel CAW 938

€138.00 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • mo-753066
The Classic Advanced CAW 938 subwoofer is based on Morel’s classic line - the renowned MW... more
Product information "Morel CAW 938"

The Classic Advanced CAW 938 subwoofer is based on Morel’s classic line - the renowned MW series. These products have high power handling due to the aerodynamic Uniflow™ open chassis and large diameter spiders. This woofer has reinforced Ferrite magnets for the double magnet system delivering higher magnetic flux motor, resulting in a low resonance frequency and Qts points. Latest version of Morel's MW-265 and MW-266 woofers.



Features

  • Uniflow™ aluminum diecast chassis
  • Large 3" Hexatech™ aluminum voice coil
  • Shallow profile DPC cone
  • High flux ferrite double magnet system
  • High power handling



Specifications

  • power handling (continuous/programme) = 150 W

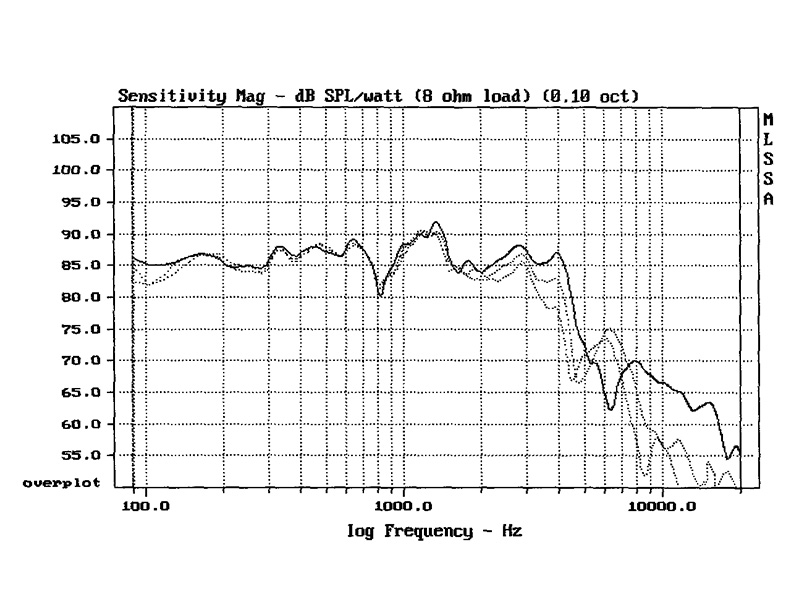

  • frequency range = 20-3000 Hz
  • resonance frequency fs = 31 Hz

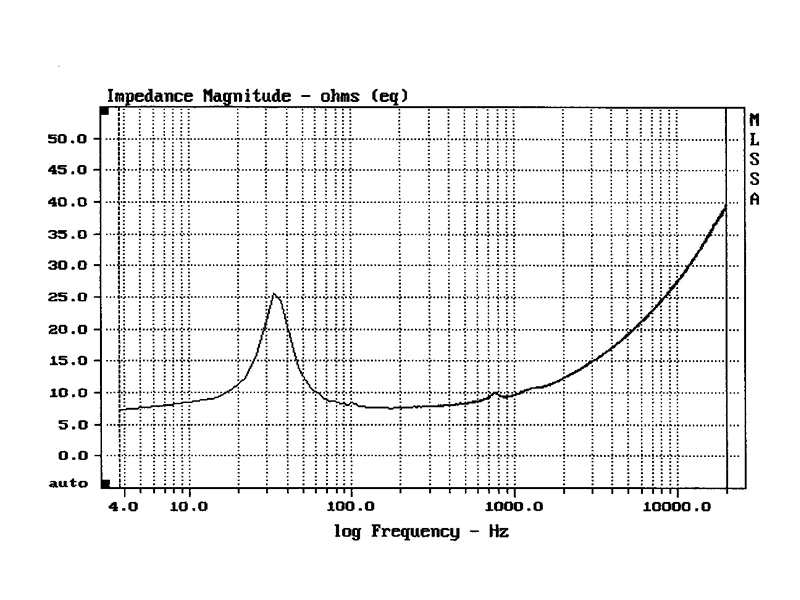

  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 7,05 N/A
  • voice coil inductance L = 0,61 mH
  • effective piston radiating area Sd = 219 cm2
  • effective mechanical mass incl. air load mms = 29 g
  • equivalent volume of compliance Vas = 51 l
  • total Q factor Qts = 0,61 (Qms=2,59, Qes=0,8)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 4,25 mm

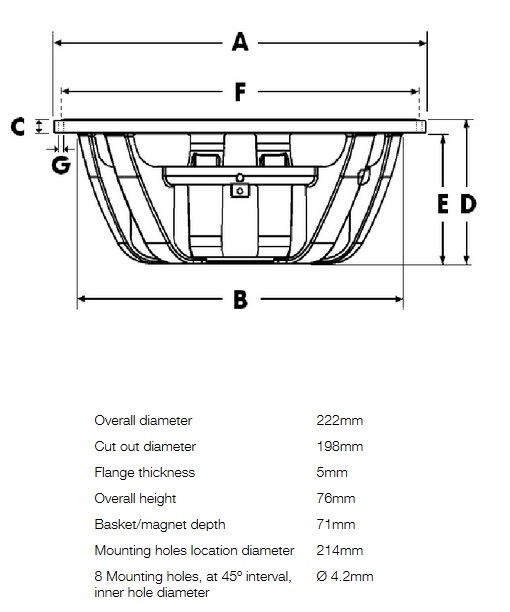

  • mounting diameter d = 198 mm
  • overall diameter d = 222 mm
  • mounting depth (not countersunk) t = 71 mm
