Tangband W3-881SJ

€36.00 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • tbW3-881sj
The Tang Band W3-881SJ is an exceptional 3" driver featuring a PPM cone, rubber surround, cast... more
Product information "Tangband W3-881SJ"

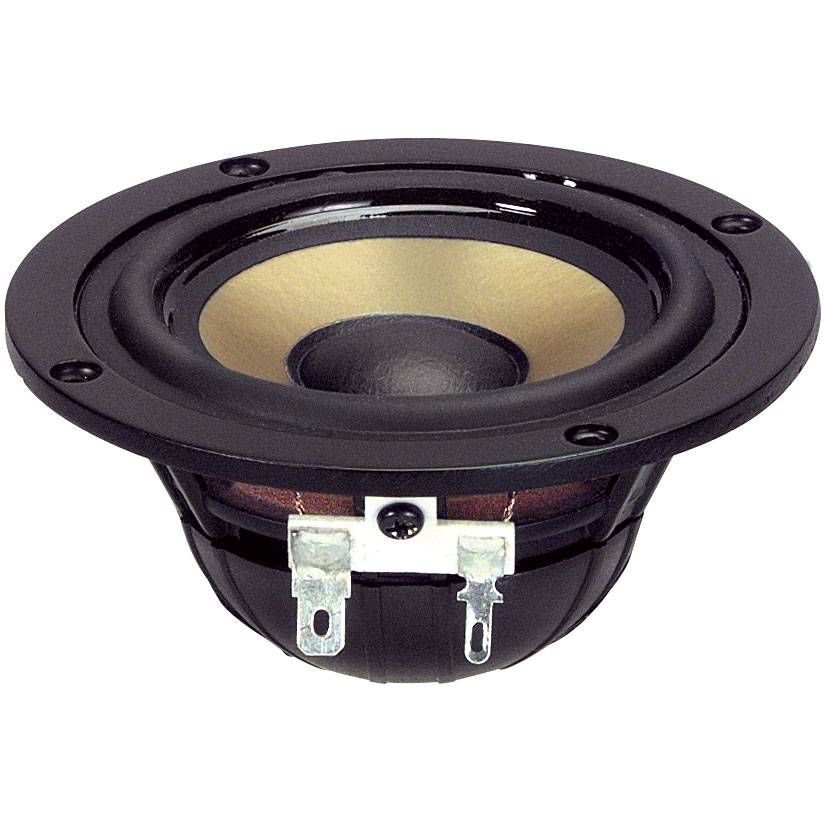

The Tang Band W3-881SJ is an exceptional 3" driver featuring a PPM cone, rubber surround, cast aluminum frame, and self-shielded underhung neodymium motor. The small magnet size reduces harmful reflections behind the cone and makes installation in small enclosures much easier. This is an exceptional little driver, excelling at midrange and full-range applications.



Product Specifications

  • Nominal Diameter 3"
  • Power Handling (RMS)15 Watts
  • Frequency Response100 to 20,000 Hz
  • Sensitivity88 dB 1W/1m
  • Voice Coil Diameter 20.4mm
Thiele-Small Parameters
  • Resonant Frequency (Fs) 100 Hz
  • DC Resistance (Re) 6.6 ohms
  • Voice Coil Inductance (Le) 0.8 mH
  • Mechanical Q (Qms) 3,07
  • Electromagnetic Q (Qes) 0.8
  • Total Q (Qts) 0.63
  • Compliance Equivalent Volume (Vas) 2.31 l.
  • Mechanical Compliance of Suspension (Cms) 1.31 mm/N
  • BL Product (BL) 2.9 Tm
  • Diaphragm Mass Inc. Airload (Mms) 1.6g
  • Maximum Linear Excursion (Xmax) 0.5 mm
  • Surface Area of Cone (Sd) 32 cm²
