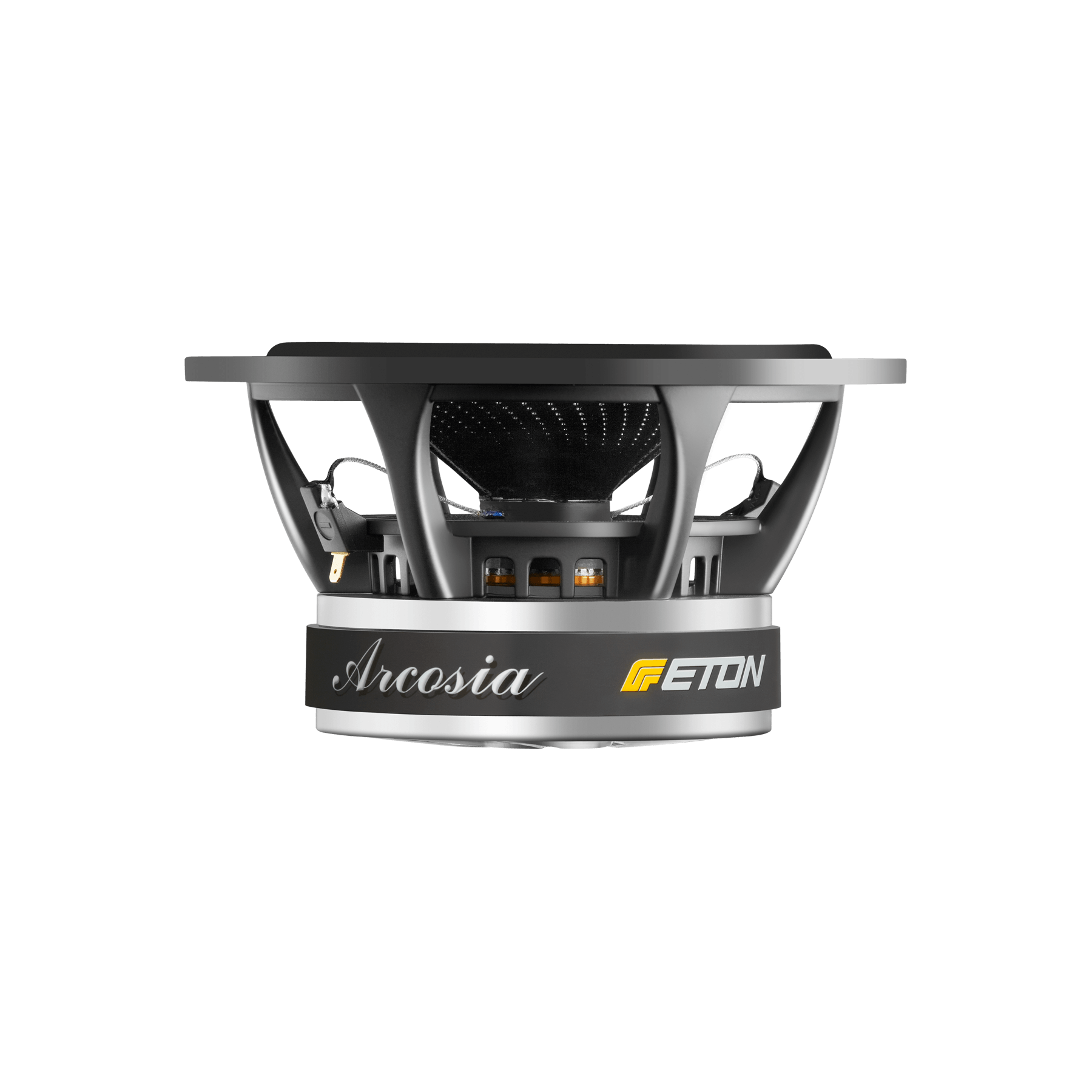

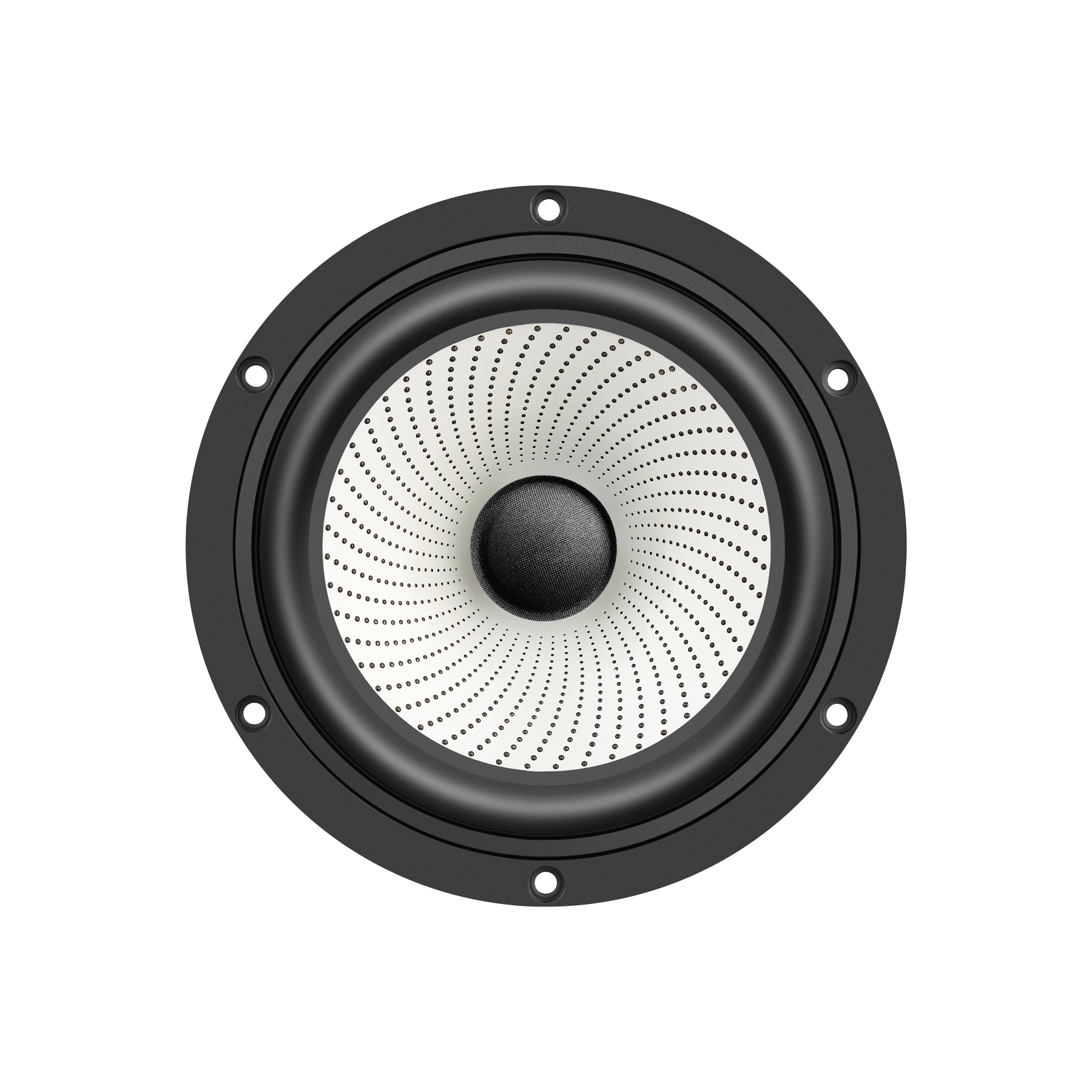

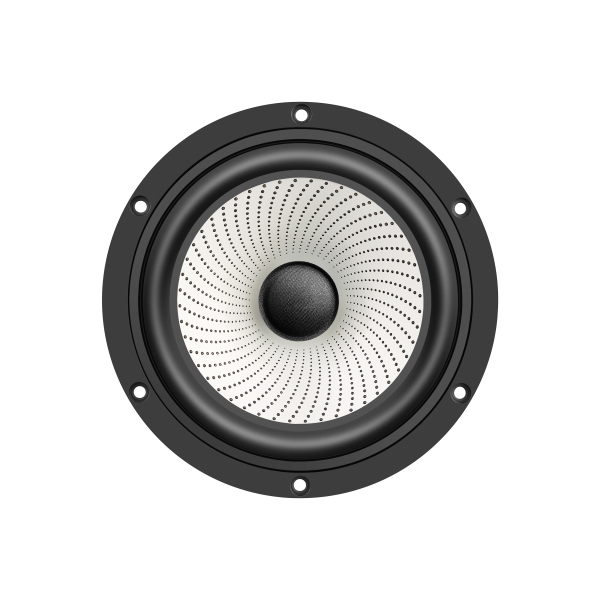

Eton 7-218 Arcosia

€709.98 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • 1381364
7" Bass/midrange driver for multiple usage. The dynamical cone geo-metry built with Magnesium... more
Product information "Eton 7-218 Arcosia"

7" Bass/midrange driver for multiple usage. The dynamical cone geo-metry built with Magnesium composite materials createsan authentical sound. The hand coated dustcap plus the airflow optimized motor design supportsthe balanced and detailed sound impression.



Specifications

  • power handling (continuous/programme) = 100 W
  • frequency range = 50-3000 Hz
  • resonance frequency fs = 31 Hz
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • impedance R = 8 Ohm
  • DC resistance Re = 6,5 Ohm
  • force factor BL = 8,0 N/A
  • voice coil inductance L = 0,87 mH
  • effective piston radiating area Sd = 137 cm2
  • effective mechanical mass incl. air load mms = 16,3 g
  • equivalent volume of compliance Vas = 32,9 l
  • total Q factor Qts = 0,32 (Qms=5,88, Qes=0,34)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 150 mm
  • overall diameter d = 181 mm
  • mounting depth (not countersunk) t = 90,5 mm
