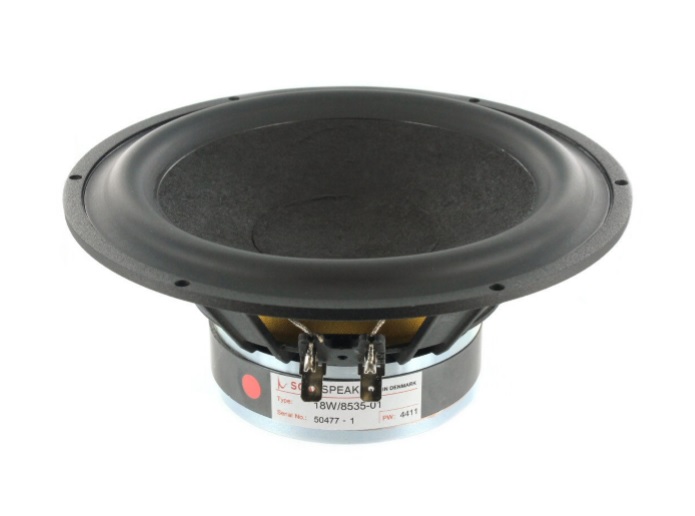

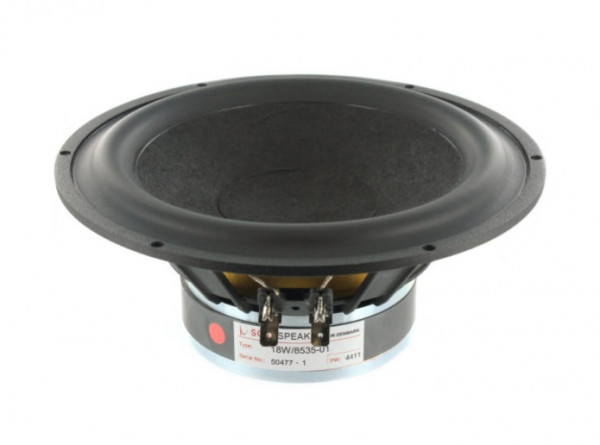

Scan-Speak 18W/8535.01

€167.32 *

Prices incl. VAT plus shipping costs

Delivery time 1-2 Workdays

  • 7385351
The Scan-Speak 18W/8535-01 is an improved version of the highly praised 18W/8535-00 midwoofer,... more
Product information "Scan-Speak 18W/8535.01"

The Scan-Speak 18W/8535-01 is an improved version of the highly praised 18W/8535-00 midwoofer, where a new aluminum chassis and an updated cone as wells as a few other details are introduced, these updates improves mechanical stability and sound performance. Highquality magnet system design with patented Symmetric Drive(SD-1) continues to be key feature.



Specifications

  • power handling (continuous/programme) = 70/190 W

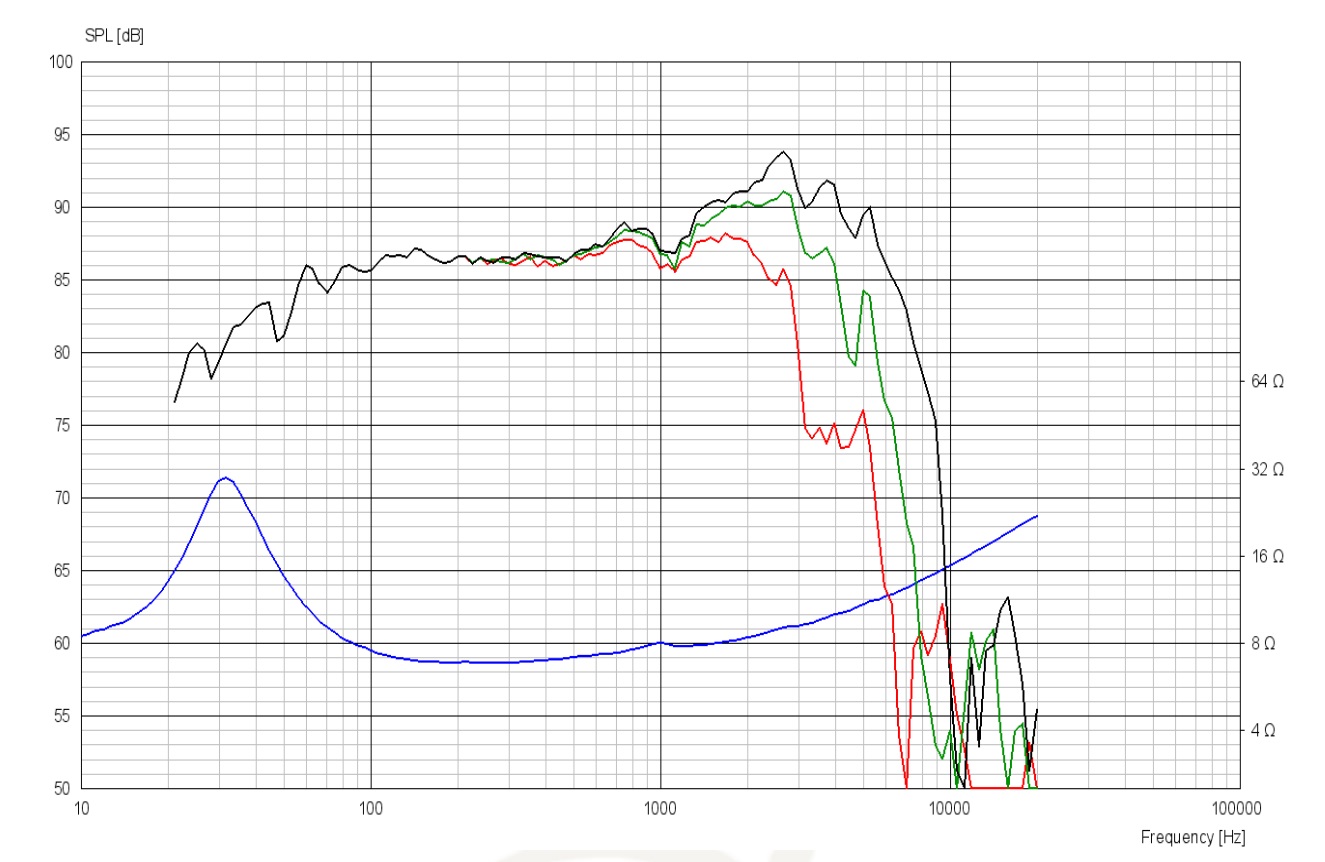

  • frequency range = 30-3000 Hz
  • resonance frequency fs = 25 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87,2 dB (2,83V; 1m)
  • DC resistance Re = 5,85 Ohm
  • force factor BL = 5,9 N/A
  • voice coil inductance L = 0,33 mH
  • effective piston radiating area Sd = 145 cm2
  • effective mechanical mass incl. air load mms = 17,2 g
  • equivalent volume of compliance Vas = 68,9 l
  • total Q factor Qts = 0,38 (Qms=2,1, Qes=0,46)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm

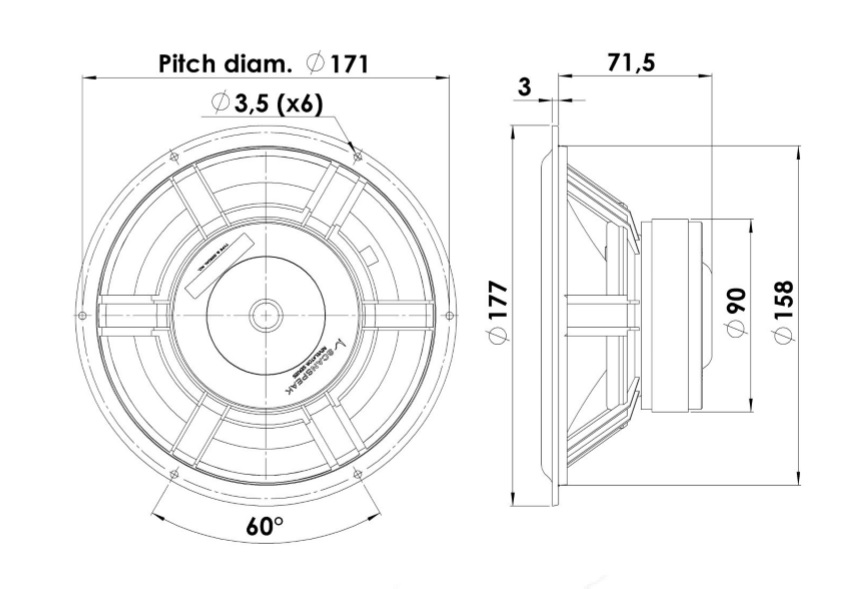

  • mounting diameter d = 158 mm
  • overall diameter d = 177 mm
  • mounting depth (not countersunk) t = 74,5 mm
