Morel TiCW 634Nd

€233.10 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • 754071
Morel TiCW 634Nd 160mm DPC Cone Woofer   Open Uniflow aluminum diecast chassis for... more
Product information "Morel TiCW 634Nd"

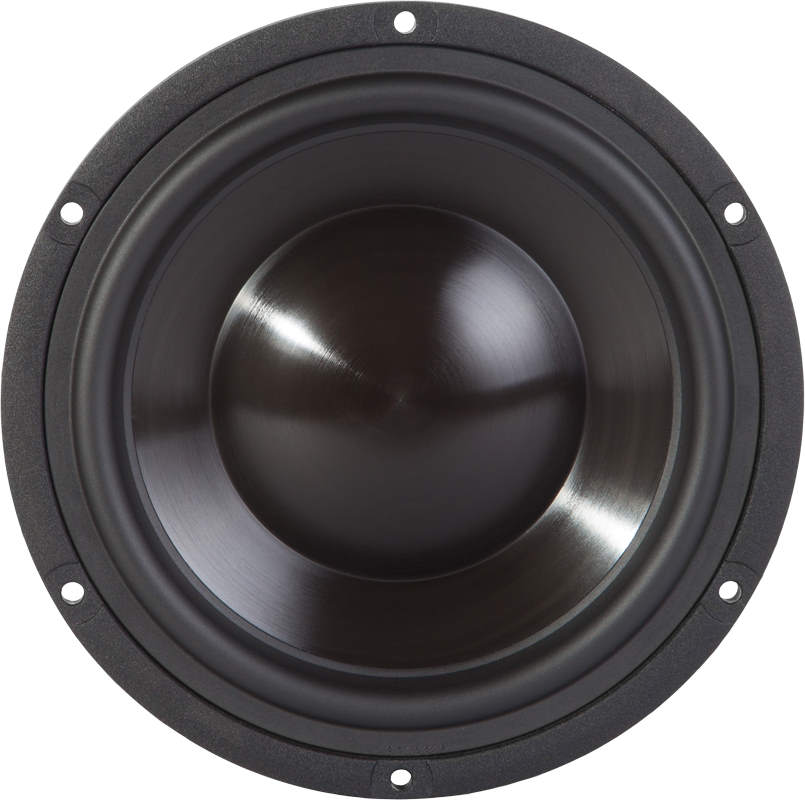

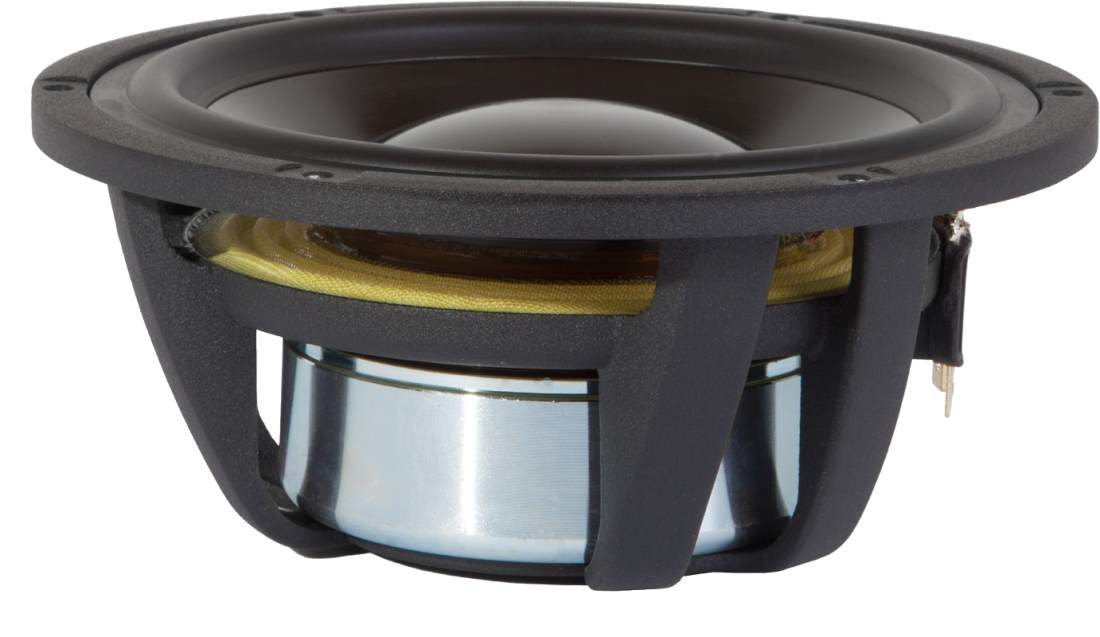

Morel TiCW 634Nd 160mm DPC Cone Woofer



  • Open Uniflow aluminum diecast chassis for reduced reflections
  • Hybrid neodymium/ferrite magnet ferrite system
  • Titanium coil bobbin for low energy storage
  • 3" Hexatech aluminum voice coil
  • High 1,000W instantaneous power handling
  • Coppersleeve Neolin motor



Specifications

  • power handling (continuous/programme) = 150 W
  • frequency range = 40-4000 Hz
  • resonance frequency fs = 40 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 3,7 Ohm
  • force factor BL = 6,6 N/A
  • voice coil inductance L = 0,29 mH
  • effective piston radiating area Sd = 119 cm2
  • effective mechanical mass incl. air load mms = 17,7 g
  • equivalent volume of compliance Vas = 17,3 l
  • total Q factor Qts = 0,34 (Qms=4,98, Qes=0,37)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 140 mm
  • overall diameter d = 160 mm
  • mounting depth (not countersunk) t = 63 mm
