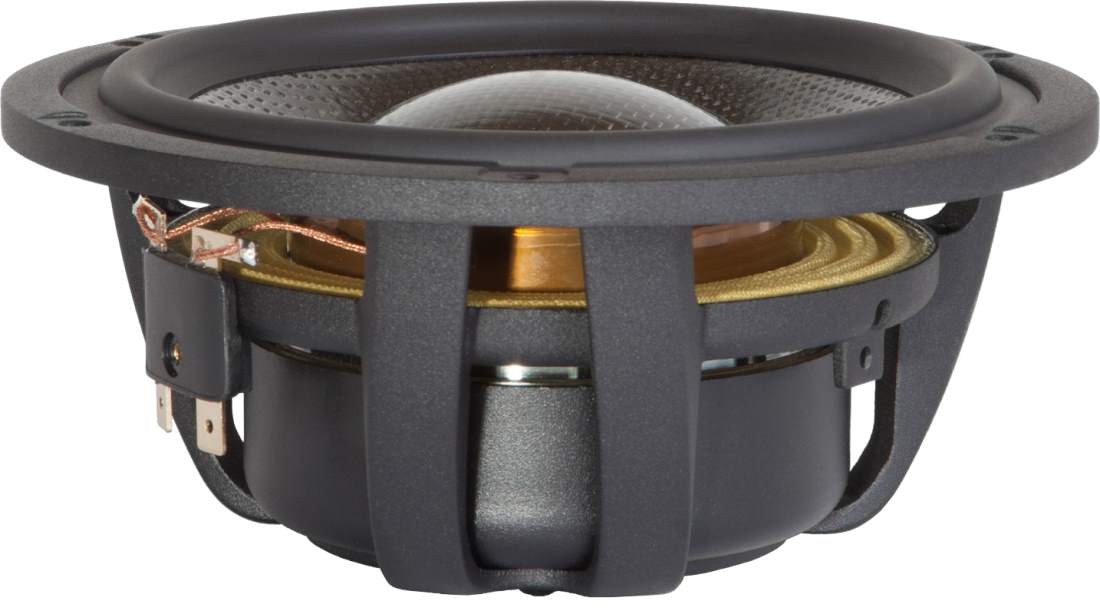

Morel SCW 636

Morel's SCW636 Supreme Coppersleeve Midrange neodymium/ferrite hybrid motor structure is combined with a cutting-edge cast alloy chassis for maximum performance. This Uniflow frame provides a reflection-free backwave, while virtually eliminating any excursion noise. The composite sandwich cone facilitates smooth, accurate frequency response.s.

Features

• Carbon fiber/Rohacell/Carbon fibercomposite sandwich cone
• Uniflow™ Aluminum diecast chassis
• Hybrid™ Neodymium/Ferrite magnet
• 3″ Large Hexatech™ Aluminum voice coil
• Copper insulated center pole
• High power handling

Specifications

• power handling (continuous/programme) = 150 W
• frequency range = 40-15000 Hz
• resonance frequency fs = 40 Hz

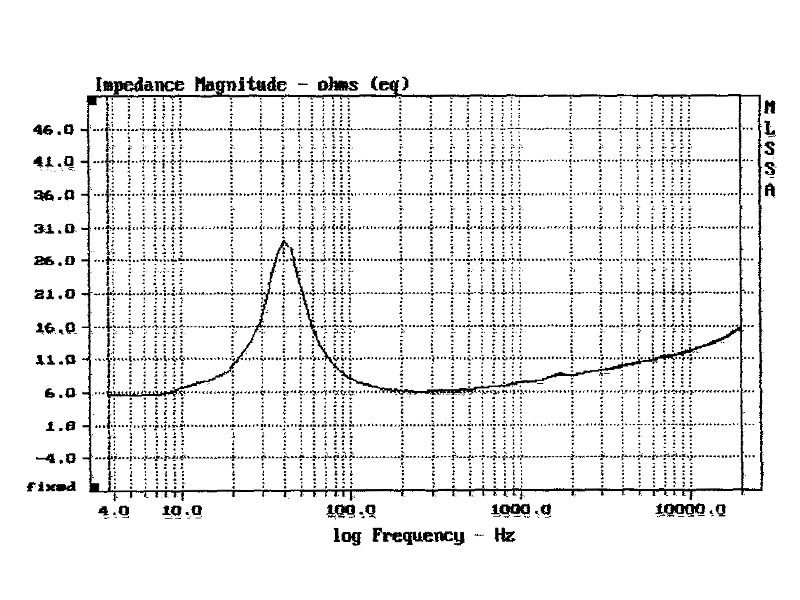

• impedance R = 6 Ohm

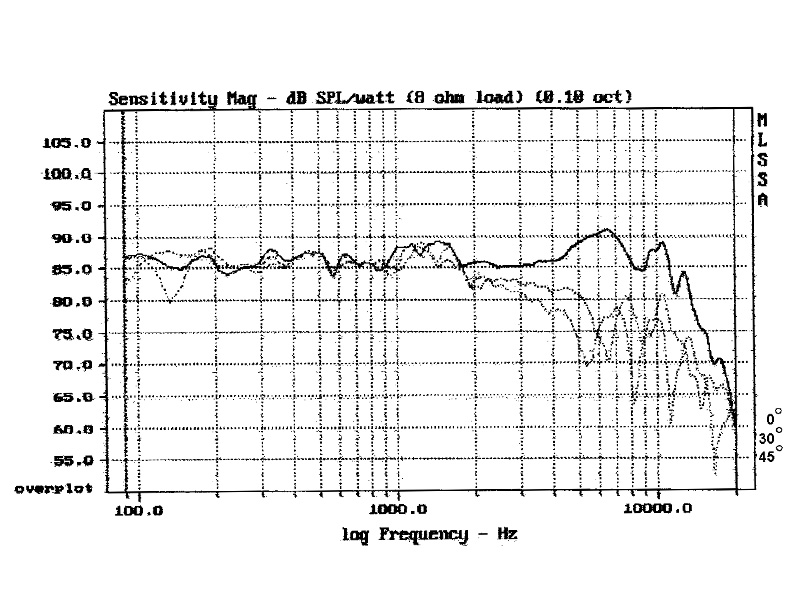

• sound pressure level SPL = 87 dB (2,83V; 1m)
• DC resistance Re = 4,5 Ohm
• force factor BL = 7,2 N/A
• voice coil inductance L = 0,29 mH
• effective piston radiating area Sd = 119 cm²
• effective mechanical mass incl. air load mms = 16 g
• equivalent volume of compliance Vas = 18,5 l
• total Q factor Qts = 0,29 (Qms=1,76, Qes=0,35)
• voice coil diameter = 75 mm
• maximum peak linear excursion vibration x_lin = +/- 5 mm

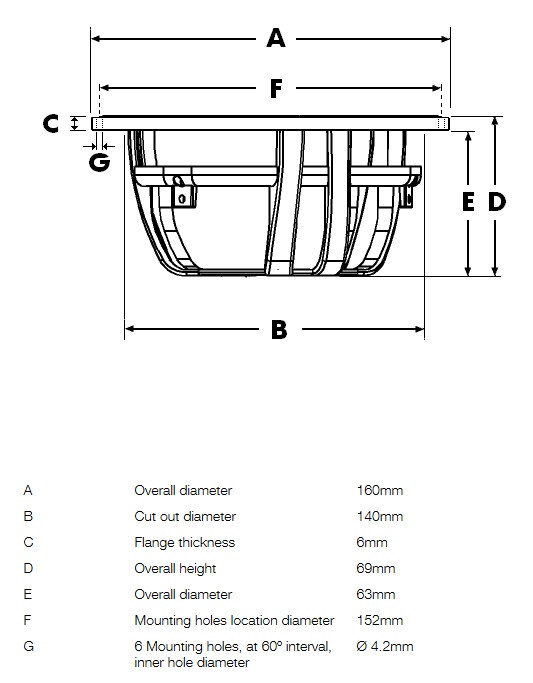

• mounting diameter d = 140 mm
• overall diameter d = 160 mm
• mounting depth (not countersunk) t = 63 mm
