Wavecor WF152BD04

€120.00 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • wf152bd04
Wavecor WF152BD04 6" die cast, paper cone mid/woofer 8 Ohm   The 6” transducers... more
Product information "Wavecor WF152BD04"

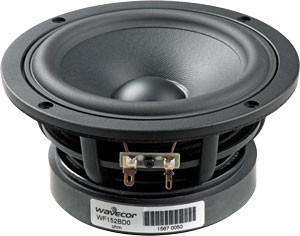

Wavecor WF152BD04 6" die cast, paper cone mid/woofer 8 Ohm



The 6” transducers WF152BD03 (4 ohm) and WF152BD04 (8 ohm) were designed as high performance bass and midrange units for compact monitors and high-end hi-fi speakers.

.

FEATURES

  • Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced even order harmonic distortion
  • Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position
  • Black coated semi-air-dried paper cone
  • Rigid die cast alu chassis with extensive venting for lower air flow speed reducing audible distortion
  • Vented voice coil former for reduced distortion and compression
  • Vented center pole with dual flares for reduced noise level at large cone excursions
  • Heavy-duty black fiber glass voice coil former to reduce mechanical losses resulting in better dynamic performance and low-level details
  • Large motor with 1¼” voice coil diameter for better control and power handling
  • Built-in alu field-stabilizing ring for reduced distortion at high levels
  • Low-loss suspension (high Qm) for better reproduction of details and dynamics
  • Black motor parts for better heat transfer to the surrounding air
  • Conex spider for better durability under extreme conditions
  • Gold plated terminals to ensure long-term trouble free connection



SPECIFICATIONS

  • power handling (continuous/programme) = 70 W

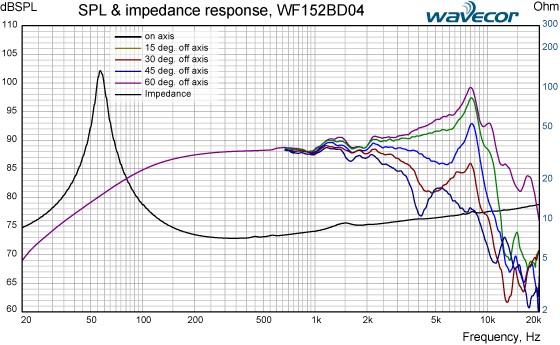

  • frequency range = 50-4000 Hz
  • resonance frequency fs = 51 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88,5 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 7,3 N/A
  • voice coil inductance L = 0,15 mH
  • effective piston radiating area Sd = 93 cm2
  • effective mechanical mass incl. air load mms = 10,5 g
  • equivalent volume of compliance Vas = 11,4 l
  • total Q factor Qts = 0,32 (Qms=7,3, Qes=0,33)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm

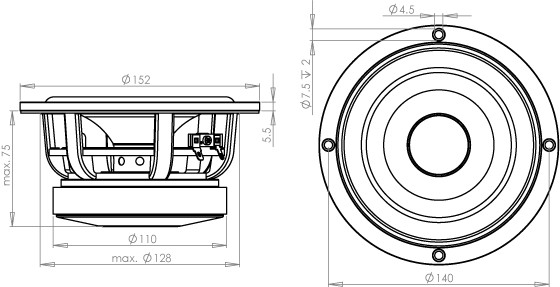

  • mounting diameter d = 128 mm
  • overall diameter d = 152 mm
  • mounting depth (not countersunk) t = 80,5 mm
  • mass m = 1,46 kg
