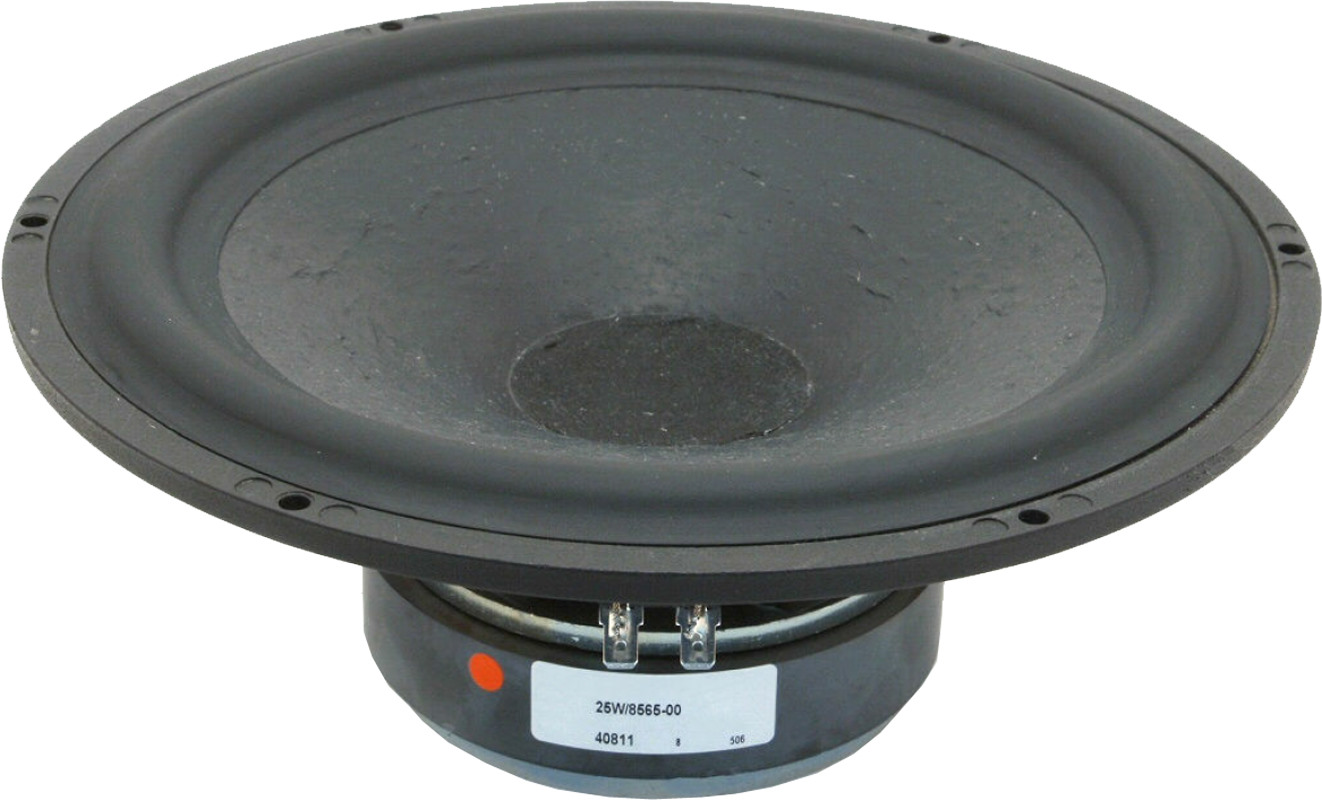

Scan-Speak 25W/8565-00 The Symmetric Drive (SD-1) concept with copper in the magnet system was... more
Product information "Scan-Speak 25W/8565.00"
The Symmetric Drive (SD-1) concept with copper in the magnet system was invented by Scan-Speak. High-quality magnet system design has thus been a key feature of Scan-Speak design since the companys inception. The Classic woofers are highly praised, and are used in some of the worlds most exceptional high-end Loudspeakers. Some feature Kevlar cones, others have the innovative Carbon fibre/Paper cones.
- power handling (continuous/programme) = 100 W
- frequency range = 20-600 Hz
- resonance frequency fs = 20 Hz
- impedance R = 8 Ohm
- sound pressure level SPL = 88 dB (2,83V; 1m)
- DC resistance Re = 5,5 Ohm
- force factor BL = 8,2 N/A
- voice coil inductance L = 0,4 mH
- effective piston radiating area Sd = 330 cm2
- effective mechanical mass incl. air load mms = 43 g
- equivalent volume of compliance Vas = 225 l
- total Q factor Qts = 0,41 (Qms=5,4, Qes=0,44)
- voice coil diameter = 42 mm
- maximum peak linear excursion vibration xlin = +/- 6,5 mm

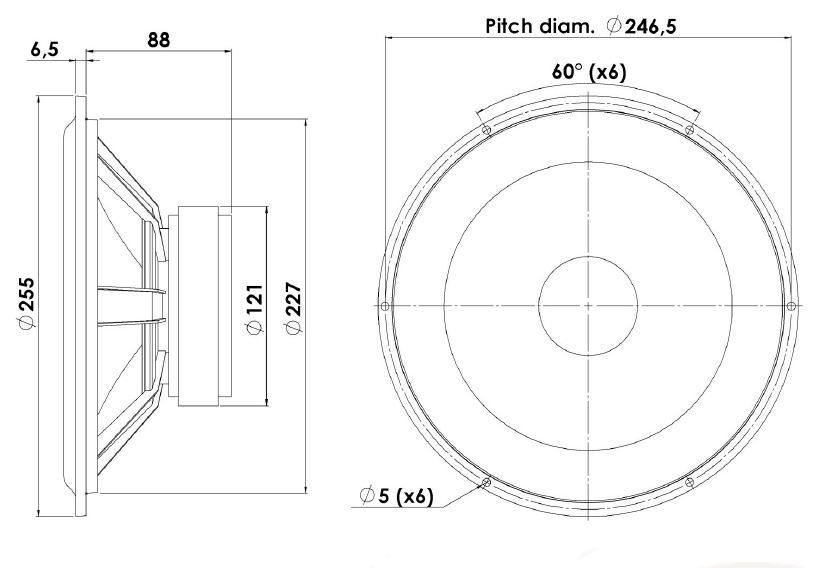

- mounting diameter d = 227 mm
- overall diameter d = 255 mm
- mounting depth (not countersunk) t = 94,5 mm
