SB Acoustics SW26DBAC76-8

€228.15 *

Prices incl. VAT plus shipping costs

Delivery time 1-3 Workdays

  • 1382428
SB-Acoustics SW26DBAC76-8 10" Woofer Unique patented long through shallow design Vented... more
Product information "SB Acoustics SW26DBAC76-8"

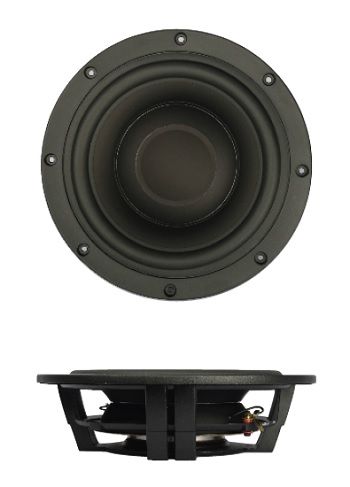

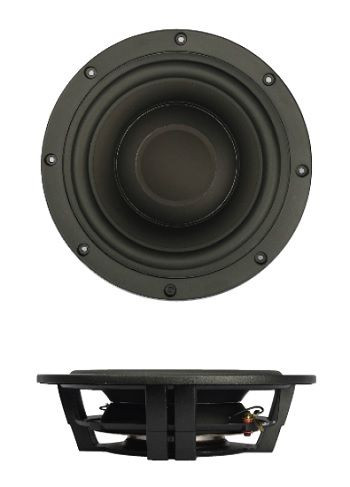

SB-Acoustics SW26DBAC76-8 10" Woofer

  • Unique patented long through shallow design
  • Vented cast aluminum chassis for optimum strength and low compression
  • Dual rigid aluminum cone structure
  • Non-conducting fiber glass coil former for minimum damping
  • Shorting ring in motor system for reduced distortion
  • Copper voice coil for improved power handling
  • Long life insulated silver lead wires
  • Powerful neodymium motor system

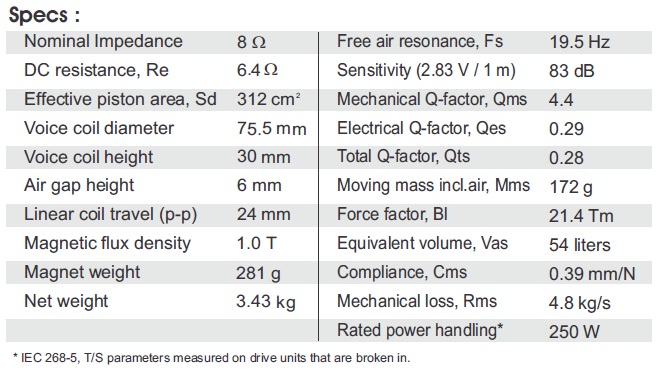

Specifications

  • power handling (continuous/programme) = 250 W
  • resonance frequency fs = 19,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 83 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 21,4 N/A
  • effective piston radiating area Sd = 312 cm2
  • effective mechanical mass incl. air load mms = 172 g
  • equivalent volume of compliance Vas = 54 l
  • total Q factor Qts = 0,28 (Qms=4,4, Qes=0,29)
  • voice coil diameter = 75,5 mm

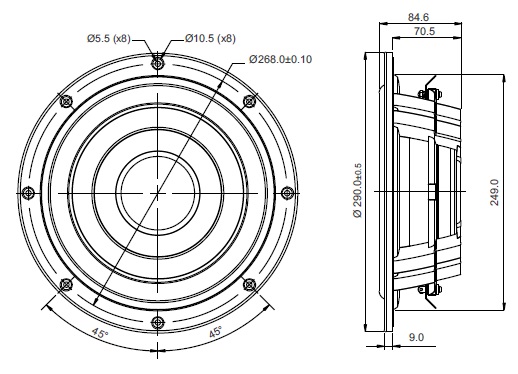

  • mounting diameter d = 244 mm
  • overall diameter d = 290 mm
  • mounting depth (not countersunk) t = 70,5 mm
