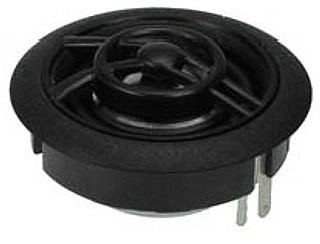

Seas 27TAFNC/D H1397-04 Magnesium Dome Tweeter
Compact neodymium magnet tweeter for high quality speaker design in small cabinets and automobiles. Aluminium/magnesium alloy diaphragm with pistonic behaviour throughout the audible frequency range, resulting in a good dispersion also above 10kHz.
Wide roll Sonomex surround together with a double chamber magnet system results in a low resonance frequency. The critically designed diffusor compensates for a slight axial roll off towards 20 kHz and reduces resonances above 20kHz.
Very low magnetic stray fields makes this unit suitable for A/V systems. Voice coil immersed in magnetic fluid, allowing high power handling capacity and simplified crossover design.
- power handling (continuous/programme) = 90/220 W

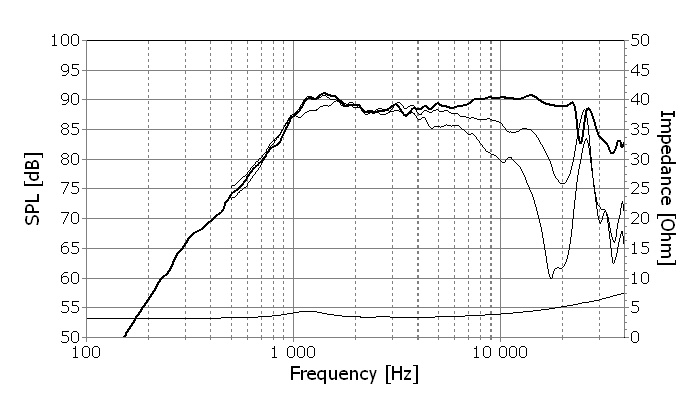

- frequency range = 2500-30000 Hz
- resonance frequency fs = 1170 Hz
- impedance R = 4 Ohm
- sound pressure level SPL = 90 dB (2,83V; 1m)
- DC resistance Re = 2,7 Ohm
- force factor BL = 1,9 N/A
- voice coil inductance L = 0,03 mH
- effective piston radiating area Sd = 7,5 cm2
- effective mechanical mass incl. air load mms = 0,3 g
- voice coil diameter = 26 mm
- maximum peak linear excursion vibration xlin = +/- 0,55 mm

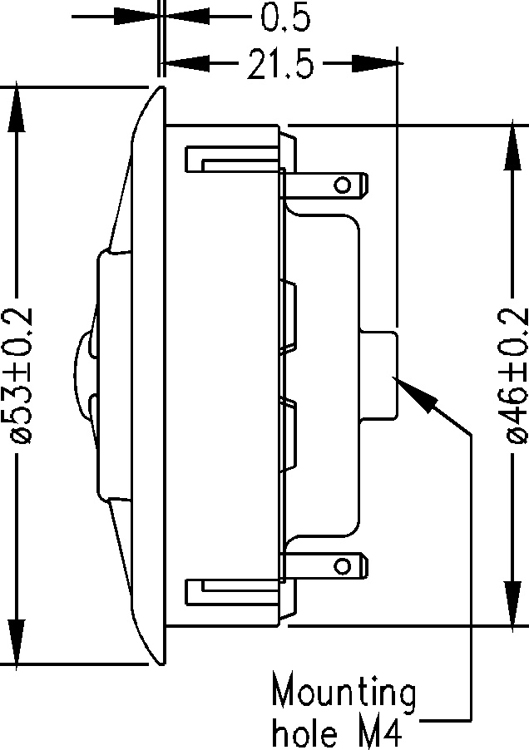

- mounting diameter d = 46 mm
- overall diameter d = 53 mm
- mounting depth (not countersunk) t = 21,5 mm
