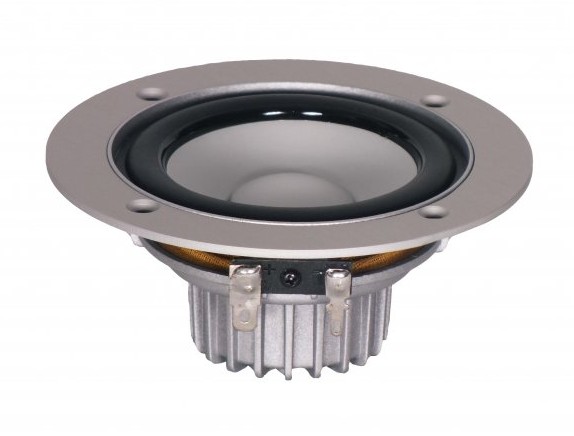

Omnes Audio BB3.AL

€28.50 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • oa-bb3al
The Omnes Audio BB3.AL 3" Fullrange from Omnes Audio is a well-thought-full-range speaker with... more
Product information "Omnes Audio BB3.AL"

The Omnes Audio BB3.AL 3" Fullrange from Omnes Audio is a well-thought-full-range speaker with excellent acoustic properties.



Specifications

  • frequency range = 80-20000 Hz
  • resonance frequency fs = 94 Hz
  • impedance R = 6 Ohm
  • sound pressure level SPL = 83 dB (2,83V; 1m)
  • DC resistance Re = 4,7 Ohm
  • force factor BL = 3,3 N/A
  • voice coil inductance L = 0,07 mH
  • effective piston radiating area Sd = 29,2 cm2
  • effective mechanical mass incl. air load mms = 2,1 g
  • equivalent volume of compliance Vas = 1,6 l
  • total Q factor Qts = 0,5 (Qms=6,2, Qes=0,54)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 1 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 80 mm
  • mounting depth (not countersunk) t = 39 mm
