- Order number: alpair5a-g2-grey

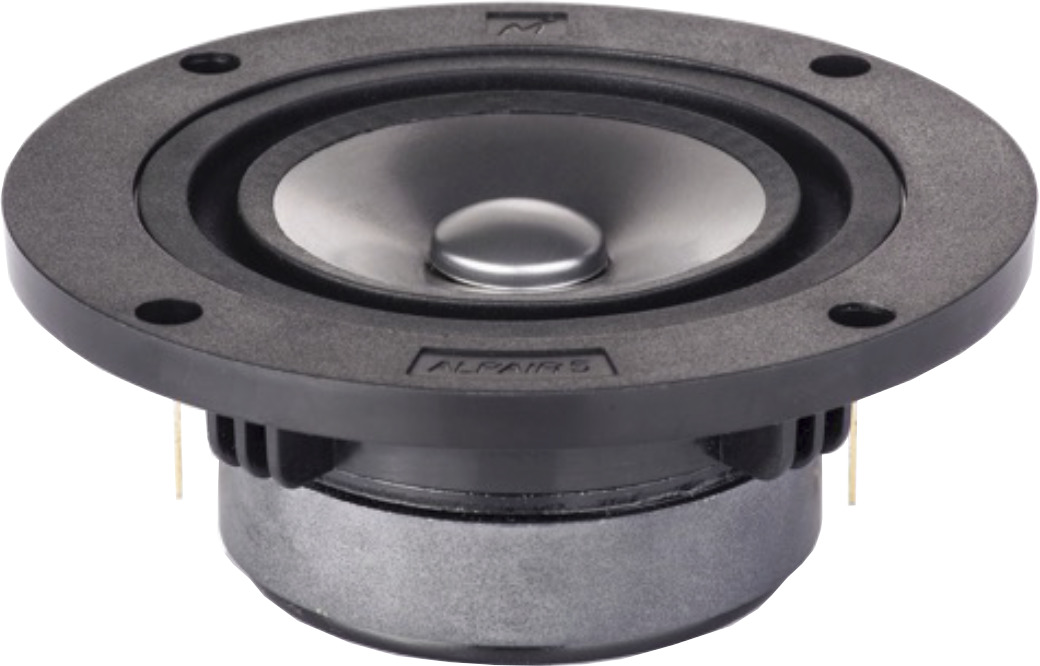

The Alpair 5 Generation 2 is a pure Free-to-air Single Suspension Full-Range audio driver. This new Alpair 5 is more advanced than its first generation version. The new 5 operates only using its all-new single front suspension.
This design retains designer Mark Fenlon’s classical mechanical engineering approach to reduce mass and extend long throw operating capacity. Mark, along with Evan Yu and the engineering team spent several months of research removing mechanical restriction from the ultra thin coil body.
Traditional driver designs use a “spider”, a suspension device located behind the driver’s cone. Bonded to the coil, it physically restricts a coils ability to transfer mechanical-acoustic signals to the cone. Some other drivers use damping fluid, springs or other devices, all of which produce losses. This new Alpair 5 design completely removes all these restrictions; Its coil locates cleanly between the driver’s cone and motor sub-assembly, making the new 5 a pure free-to-air mechanical design.
The accuracy requirement for the Alpair 5 component design, engineering and detailed assembly goes well beyond typical commercial audio-driver manufacturing. The front suspension operating tolerance is measured in milli-newtons. Production Alpair 5 drivers are within +/- 2.5Hz @ F Zero. All new 5’s are then pair matched to with +/- 1Hz @ F Zero.
The result is a detailed balanced sound representation across an ultra wide frequency band for this class of small driver. A typical box bass-reflex box application with an internal volume of 3 litres can be port tuned to below 80Hz while the driver retains is high range output up to 25kHz. The outcome is a very easy to use versatile driver suitable for many smaller applications where higher-end sound quality is desired from a mini-sized audio driver.
- power handling (continuous/programme) = 20 W
- frequency range = 80-24000 Hz
- resonance frequency fs = 101 Hz
- impedance R = 4 Ohm
- sound pressure level SPL = 84,6 dB (2,83V; 1m)
- DC resistance Re = 3,6 Ohm
- force factor BL = 2,5 N/A
- voice coil inductance L = 0,039 mH
- effective piston radiating area Sd = 28,3 cm2
- effective mechanical mass incl. air load mms = 2,1 g
- equivalent volume of compliance Vas = 1,3 l
- total Q factor Qts = 0,5 (Qms=1,49, Qes=0,76)
- maximum peak linear excursion vibration xlin = +/- 3 mm
- mounting diameter d = 78 mm
- overall diameter d = 100 mm
- mounting depth (not countersunk) t = 39 mm
Price is for one pair
