Visaton WS 13 E 8Ohm

€16.79 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • 1053
Visaton WS 13 E 8Ohm   13 cm (5") fullrange driver with paper cone and elastic rubber... more
Product information "Visaton WS 13 E 8Ohm"

Visaton WS 13 E 8Ohm

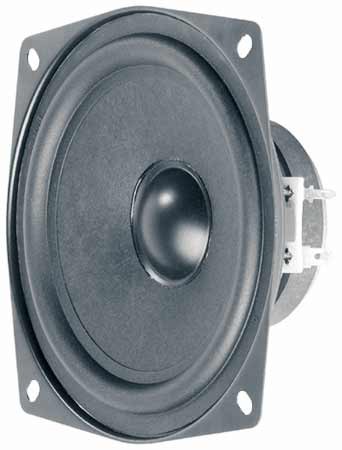

13 cm (5") fullrange driver with paper cone and elastic rubber surround. Can be used as a low-midrange driver too. Due to the special basket design especially suitable as replacement driver for many HiFi speakers.



Specifications

  • power handling (continuous/programme) = 40/60 W

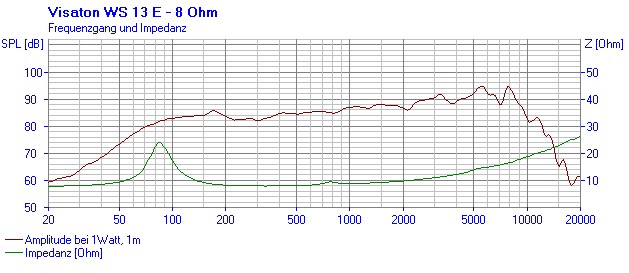

  • frequency range = 80-12000 Hz
  • resonance frequency fs = 83 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 7,7 Ohm
  • force factor BL = 3,6 N/A
  • effective piston radiating area Sd = 86,5 cm2
  • effective mechanical mass incl. air load mms = 5,1 g
  • equivalent volume of compliance Vas = 7,7 l
  • total Q factor Qts = 1,08 (Qms=3,52, Qes=1,56)
  • voice coil diameter = 20 mm
  • maximum peak linear excursion vibration xlin = +/- 7,5 mm

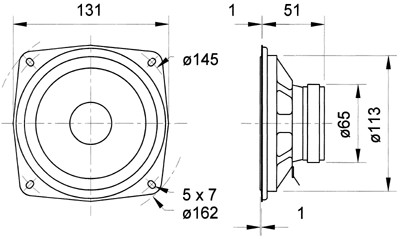

  • mounting diameter d = 113 mm
  • overall diameter d = 131/162 mm
  • mounting depth (not countersunk) t = 51 mm
