Visaton W 130 S 8Ohm

€26.40 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • 9023
Visaton W 130 S 8Ohm   13 cm (5") HiFi low-midrange driver with coated paper cone,... more
Product information "Visaton W 130 S 8Ohm"

Visaton W 130 S 8Ohm

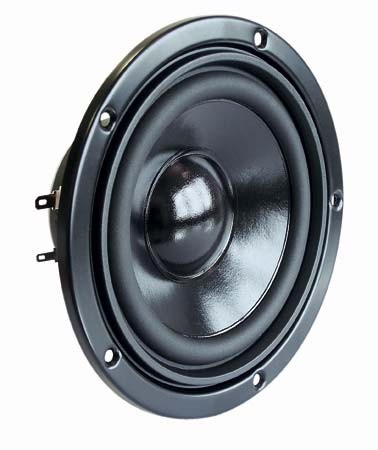

13 cm (5") HiFi low-midrange driver with coated paper cone, elastic rubber surround and 25 mm voice-coil. Suitable as woofer and due to the very balanced frequency response also as low-midrange driver especially in large 3-way speaker systems.

Specifications

  • power handling (continuous/programme) = 50/80 W

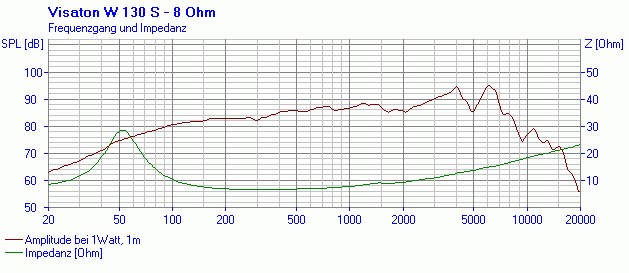

  • frequency range = 55-12000 Hz
  • resonance frequency fs = 49 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 3,7 Ohm
  • force factor BL = 3,6 N/A
  • voice coil inductance L = 0,55 mH
  • effective piston radiating area Sd = 79 cm2
  • effective mechanical mass incl. air load mms = 6,2 g
  • equivalent volume of compliance Vas = 16 l
  • total Q factor Qts = 0,37 (Qms=2,58, Qes=0,43)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 2,3 mm

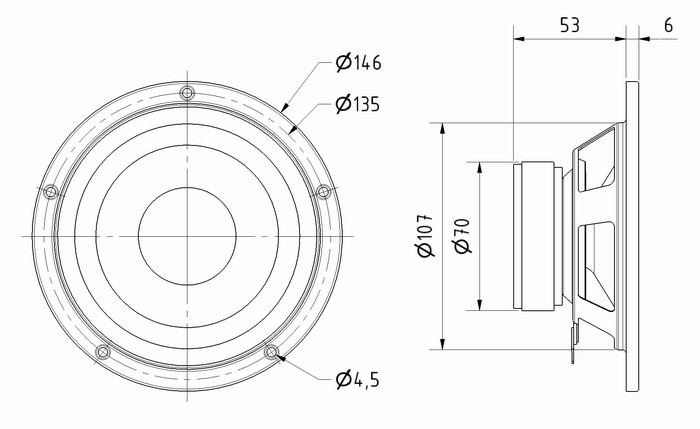

  • mounting diameter d = 108 mm
  • overall diameter d = 146 mm
  • mounting depth (not countersunk) t = 54 mm



Recommended cabinets:

Volume/Principle BR-Channel fb fc/QTC
7 l/closed  -  - 86 Hz/0,75
20 l/bass reflex BR 6.8 (length 4 cm) 44 Hz  -
