Visaton Waveguide WG 220x150

€14.16 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • 5175
Waveguide WG 220x150   15 x 22 cm Waveguide of high-quality plastic for 25 mm... more
Product information "Visaton Waveguide WG 220x150"

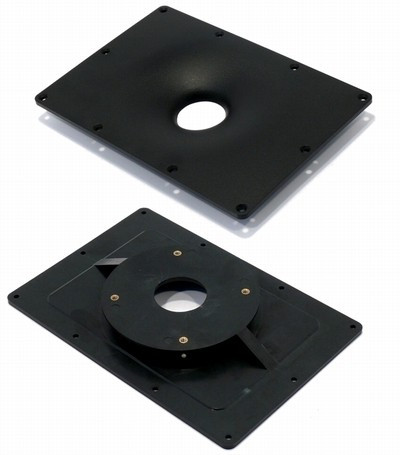

Waveguide WG 220x150



15 x 22 cm Waveguide of high-quality plastic for 25 mm tweeters. The exponential enlargement provides a high sound pressure level gain in the lower high frequency range, which discharges the tweeter. In addition, the focus and the coupling to a woofer are improved, because the sound generation planes move closer together.

This Waveguide was adjusted in width and length to 13 cm (e.g., AL 130 8 Ohm) and 20 cm (e.g., AL 200 8 Ohm) loudspeakers.

For the connection of the tweeter 4 pieces M4 screws (length approx. 10 mm) are added.

This waveguide is suitable for: G 25 FFL 8 Ohm; KE 25 SC 8 Ohm; DSM 25 R 8 Ohm

Packing unit: 1 pc.

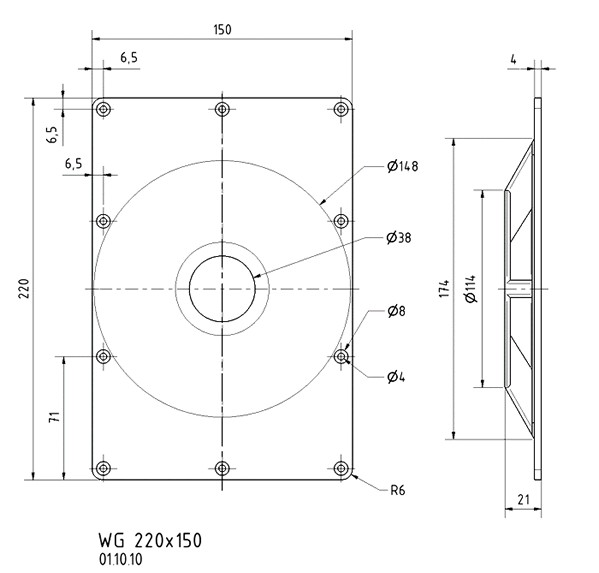

Specifications

  • Cutout diameter = 125 x 185 mm
  • Net weight = 190 g
  • Cutout diameter D = 38 mm
