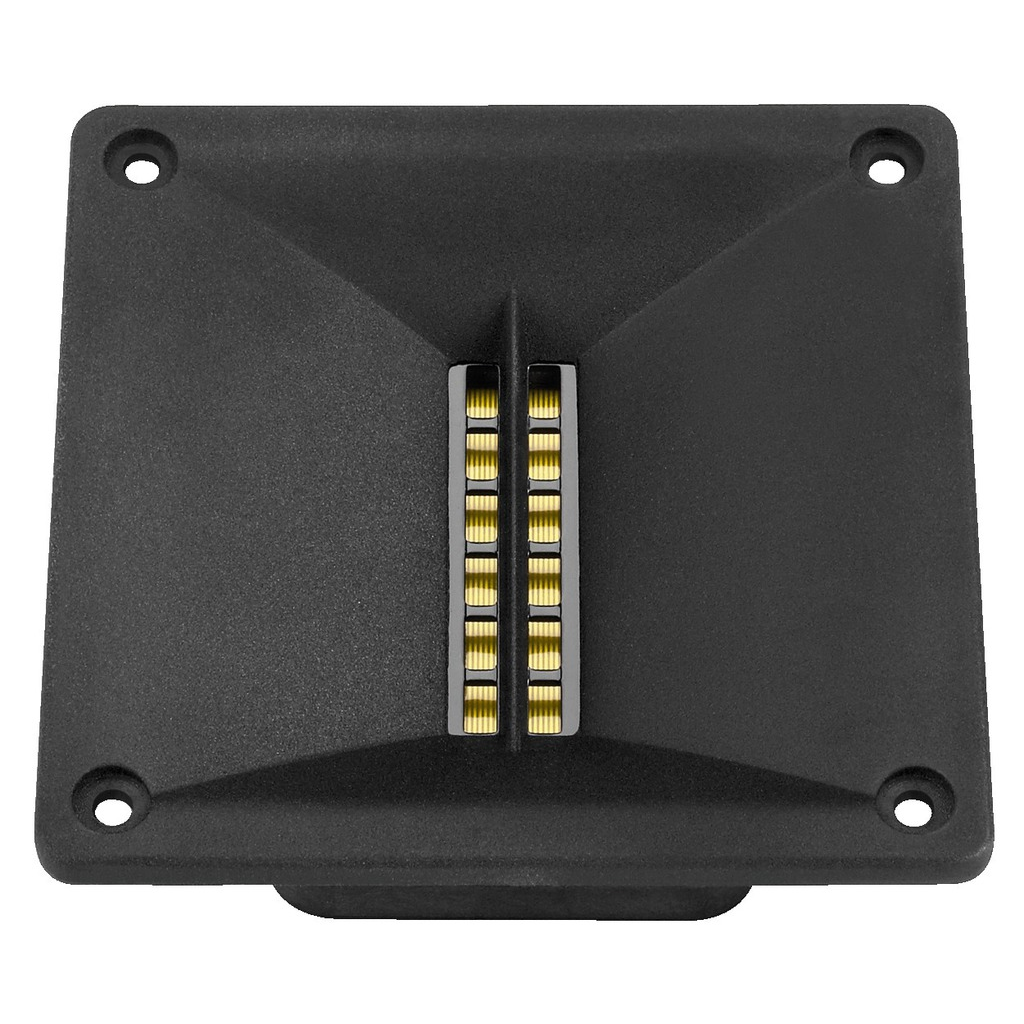

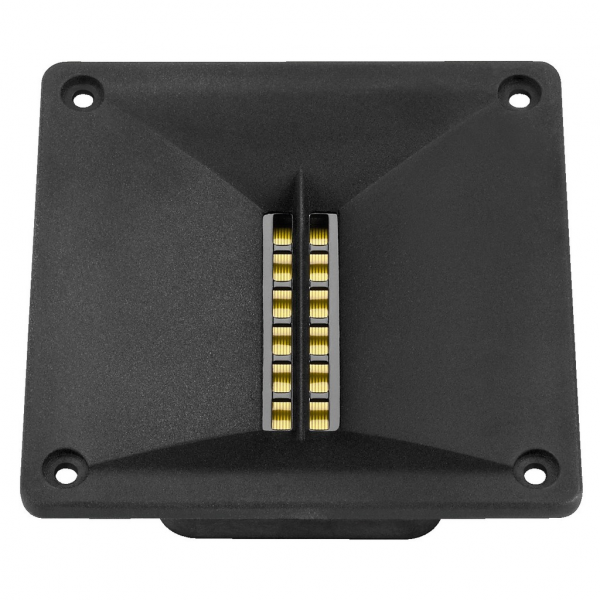

Monacor RBT-1000

Ribbon tweeter for PA and hi-fi, 40 W, 6 Ω

• Magnetostatic speaker with waveguide
• Tweeter system from the L-RAY/1000
• Fine and brilliant reproduction of the high range
• For use from 3,000 Hz (hi-fi) or 4,000 Hz (PA) on via 18 dB filter
• Diecast aluminium horn front attachment, neodymium magnet
• Vertical or horizontal mounting possible due to square front panel

Specifications

• power handling (continuous/programme) = 40/80 W

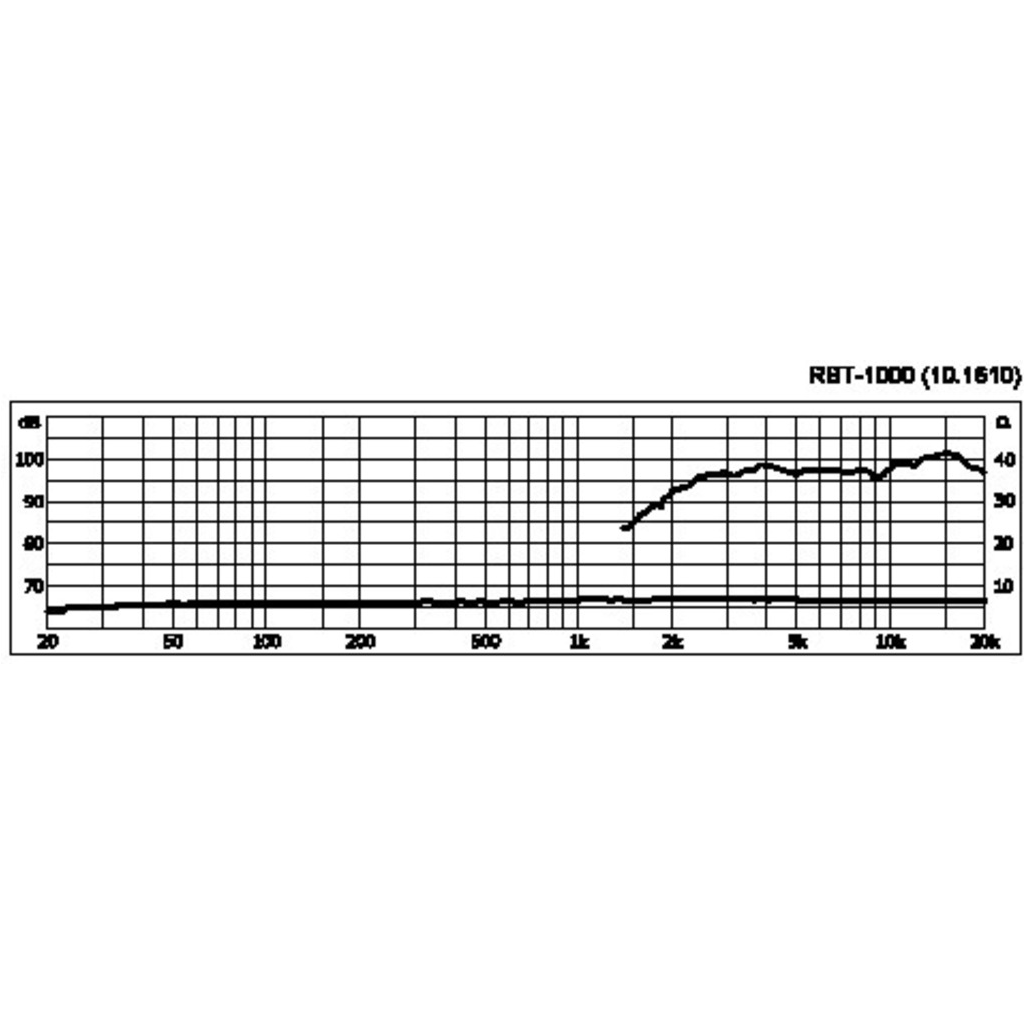

• frequency range = 2000-22000 Hz
• resonance frequency fs = 1600 Hz
• impedance R = 6 Ohm
• sound pressure level SPL = 96 dB (2,83V; 1m)

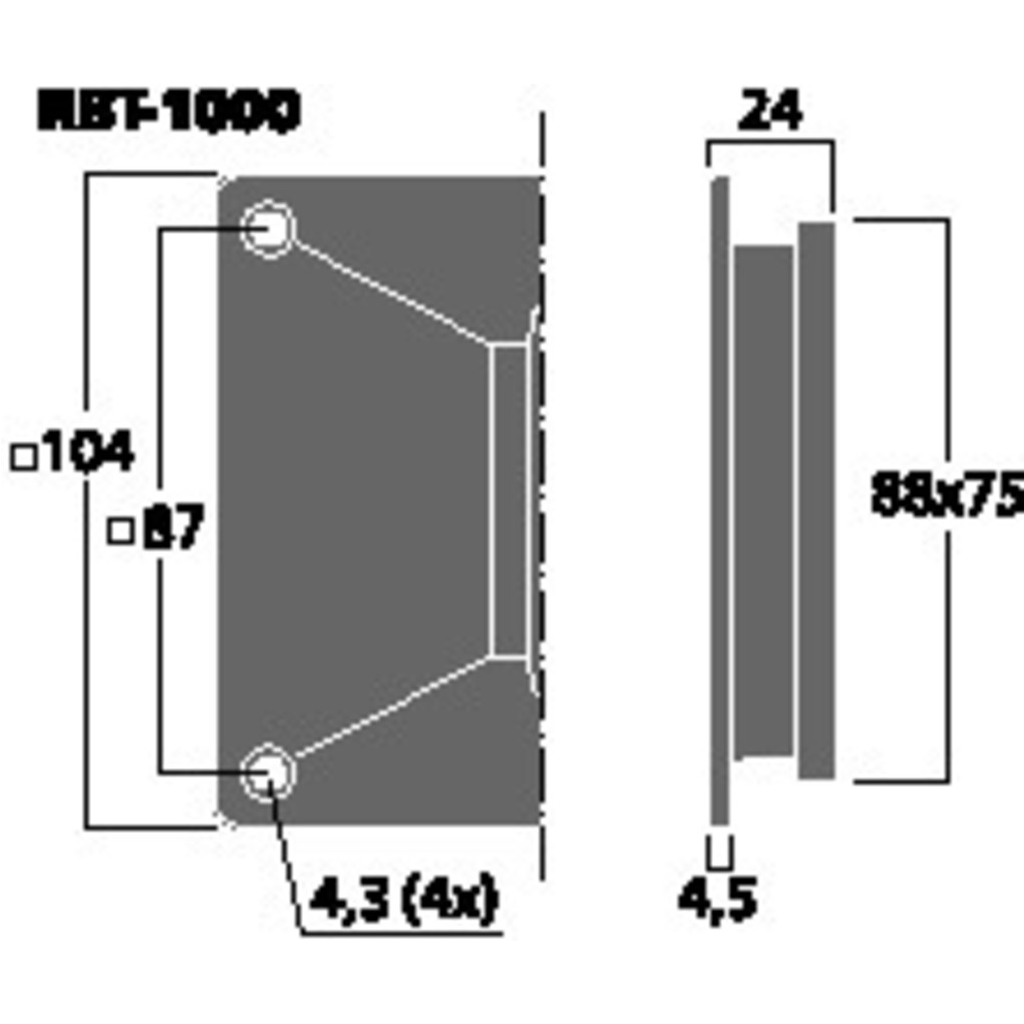

• mounting diameter d = 94x94 mm
• overall diameter d = 104x104 mm
• mounting depth (not countersunk) t = 34 mm
• mass m = 0,175 kg
