Seas L12RE/XFC H1602-04/6

€152.94 *

Prices incl. VAT plus shipping costs

Delivery time 1-3 Workdays

  • 1381721
The Seas L12RE/XFC H1602-04/6 is a coaxial loudspeaker providing high quality sound in a very... more
Product information "Seas L12RE/XFC H1602-04/6"

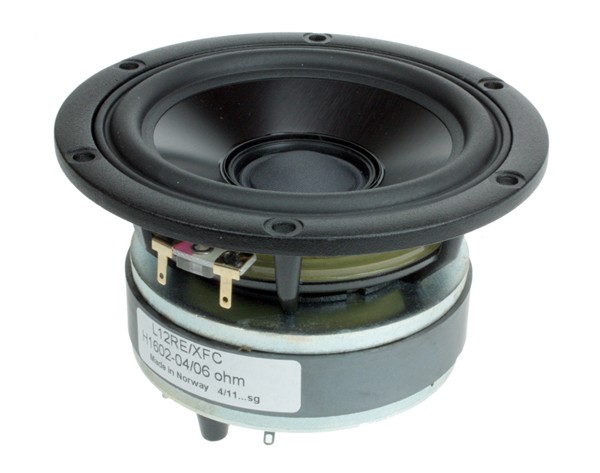

The Seas L12RE/XFC H1602-04/6 is a coaxial loudspeaker providing high quality sound in a very compact format.

The coaxially arranged precoated fabric dome high frequency unit has a low resonance frequency, and integrates with the cone driver to a point source. Voice coil windings immersed in magnetic fluid increase short term power handling capacity and reduce the compression at high power levels

The cone of the woofer acts as a moderate horn loading for the tweeter, and the chassis of the dome unit represents the throat of this horn.

The stiff, yet light aluminum cone acts as a piston throughout the recommended frequency range.



Parameters L12RE/XFC

Woofer

  • power handling (continuous/programme) = 80/250 W

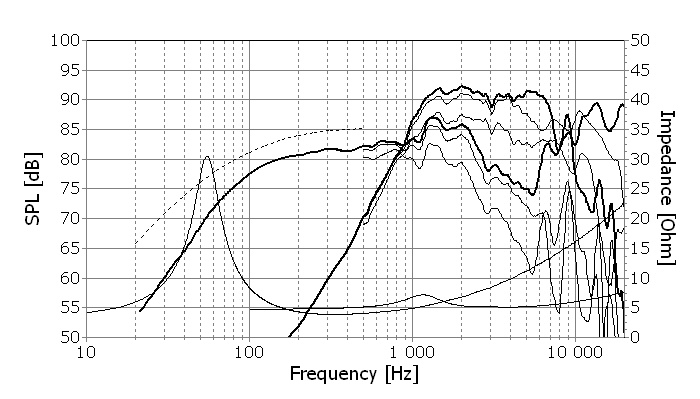

  • frequency range = 60-2200 Hz
  • resonance frequency fs = 55 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 5,5 N/A
  • voice coil inductance L = 0,48 mH
  • effective piston radiating area Sd = 47 cm2
  • effective mechanical mass incl. air load mms = 9,2 g
  • equivalent volume of compliance Vas = 3 l
  • total Q factor Qts = 0,3 (Qms=2,99, Qes=0,33)
  • voice coil diameter = 39 mm

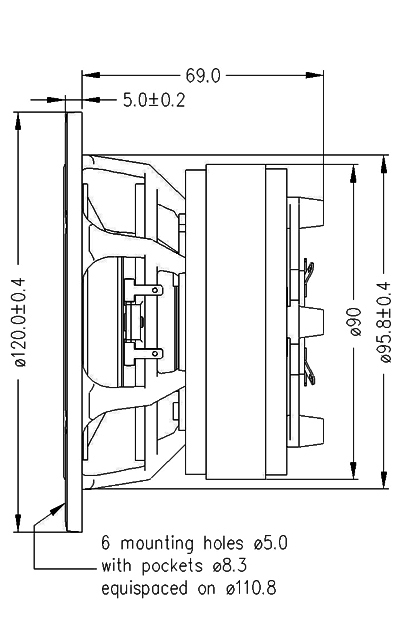

  • mounting diameter d = 95,8 mm
  • overall diameter d = 120 mm
  • mounting depth (not countersunk) t = 69 mm



Tweeter

  • power handling (continuous/programme) = 90/220 W
  • frequency range = 2000-25000 Hz
  • resonance frequency fs = 1200 Hz
  • impedance R = 6 Ohm
  • sound pressure level SPL = 88,5 dB (2,83V; 1m)
  • DC resistance Re = 4,8 Ohm
  • voice coil inductance L = 0,05 mH
  • effective piston radiating area Sd = 7 cm2
  • voice coil diameter = 26 mm
