Mundorf AMT19CM1.1-C Airmotion Tweeter High End AMT for 2-way systems. The 1.1... more

Product information "Mundorf AMT19CM1.1-C"

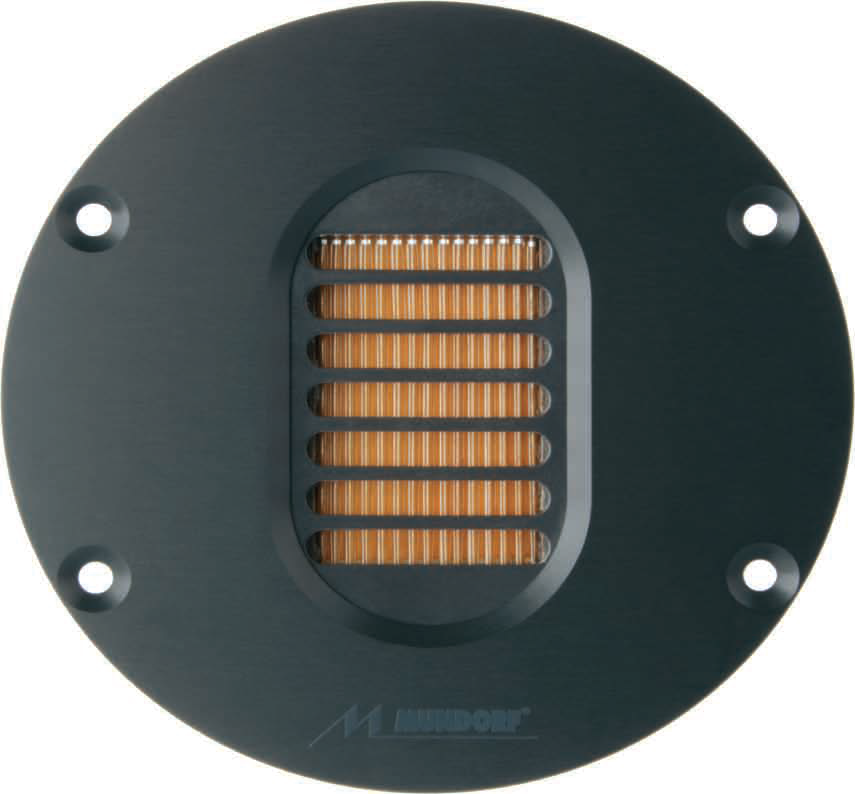

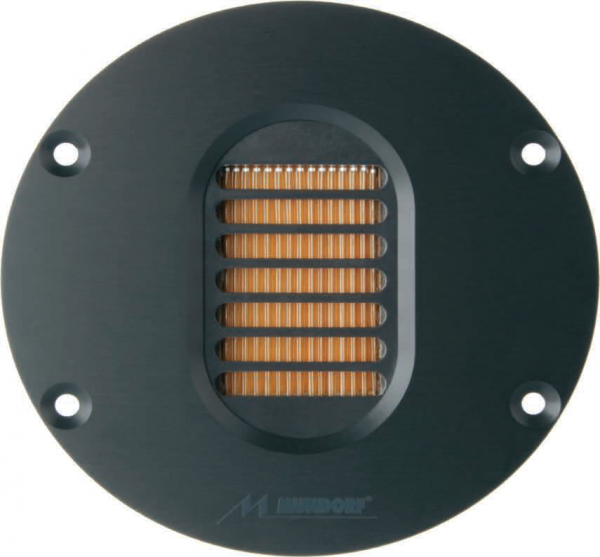

Mundorf AMT19CM1.1-C Airmotion Tweeter

High End AMT for 2-way systems. The 1.1 version is optimized for use with a 12dB crossover, allowing a particularly low crossover frequency.

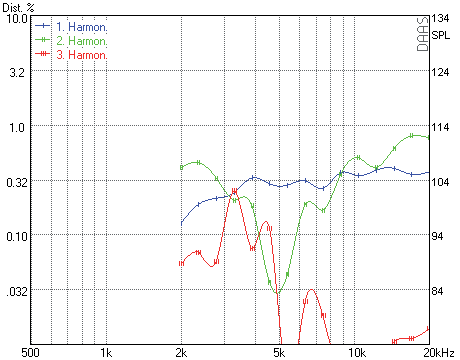

Very low distortion
Very flat impedance curve
Wide spread directivity

Specifications

power handling (continuous/programme) = 120 W
frequency range = 1500-38000 Hz
resonance frequency fs = 2300 Hz
impedance R = 8 Ohm
sound pressure level SPL = 91 dB (2,83V; 1m)
DC resistance Re = 8,1 Ohm
effective piston radiating area Sd = 126 cm²

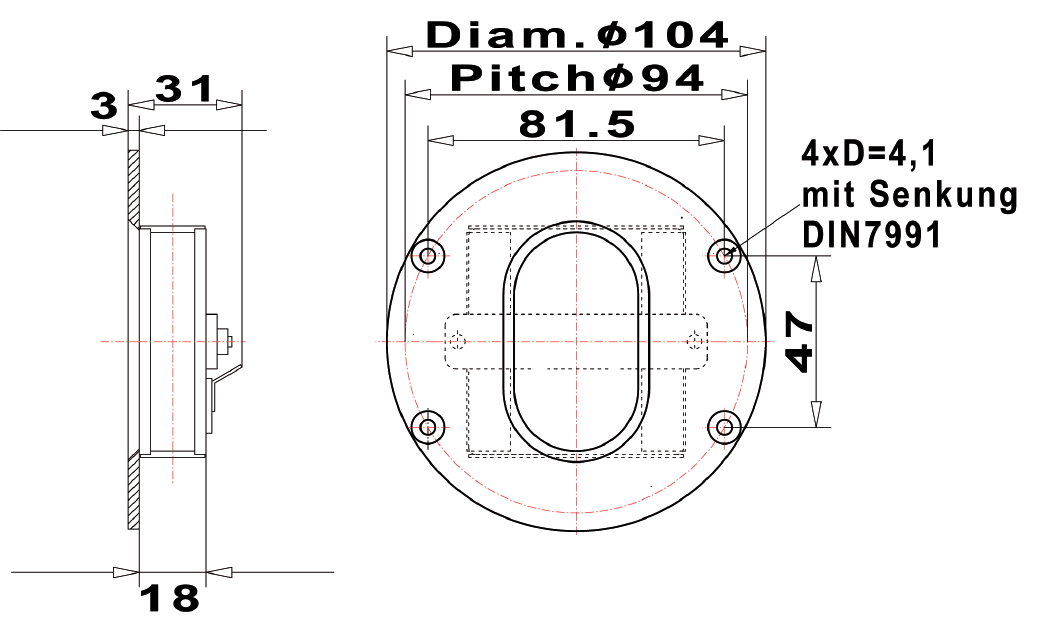

overall diameter d = 104 mm
