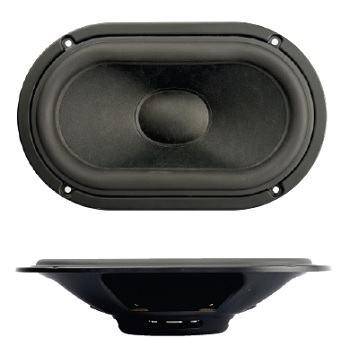

SB Acoustics SB15SFCR-00

€29.87 *

Prices incl. VAT plus shipping costs

Delivery time 1-3 Workdays

  • 1382463
SB Acoustics SB15SFCR-00 Racetrack design Hard paper cone (made in-house) Low damping... more
Product information "SB Acoustics SB15SFCR-00"

SB Acoustics SB15SFCR-00

  • Racetrack design
  • Hard paper cone (made in-house)
  • Low damping rubber surround
  • Symmetric suspension
  • Easily adjustable moving mass

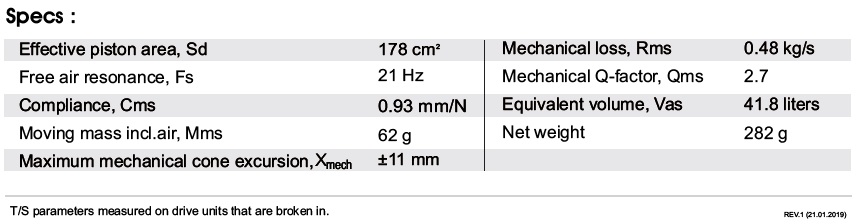

Specifications

  • resonance frequency fs = 21 Hz
  • effective piston radiating area Sd = 178 cm2
  • effective mechanical mass incl. air load mms = 62 g
  • equivalent volume of compliance Vas = 41,8 l
  • mechanical loss, Rms = 0,48 kg/s
  • excursions (xmech) = +/- 11mm

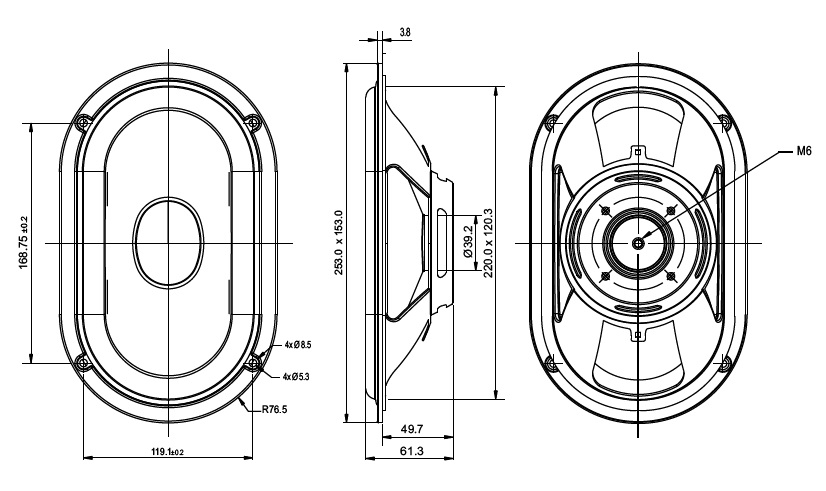

  • mounting diameter d = 220 x 120,3 mm
  • overall diameter d = 253 x 153 mm
  • mounting depth (not countersunk) t = 49,7 mm
