Monacor SPH-30X/8SW

€52.50 *

Prices incl. VAT plus shipping costs

Delivery time 1-3 Workdays

  • mon-sph-30x-8sw
High-quality hi-fi full range speakers, 20 W, 8 Ω (/8) or 4 Ω (/4),... more
Product information "Monacor SPH-30X/8SW"

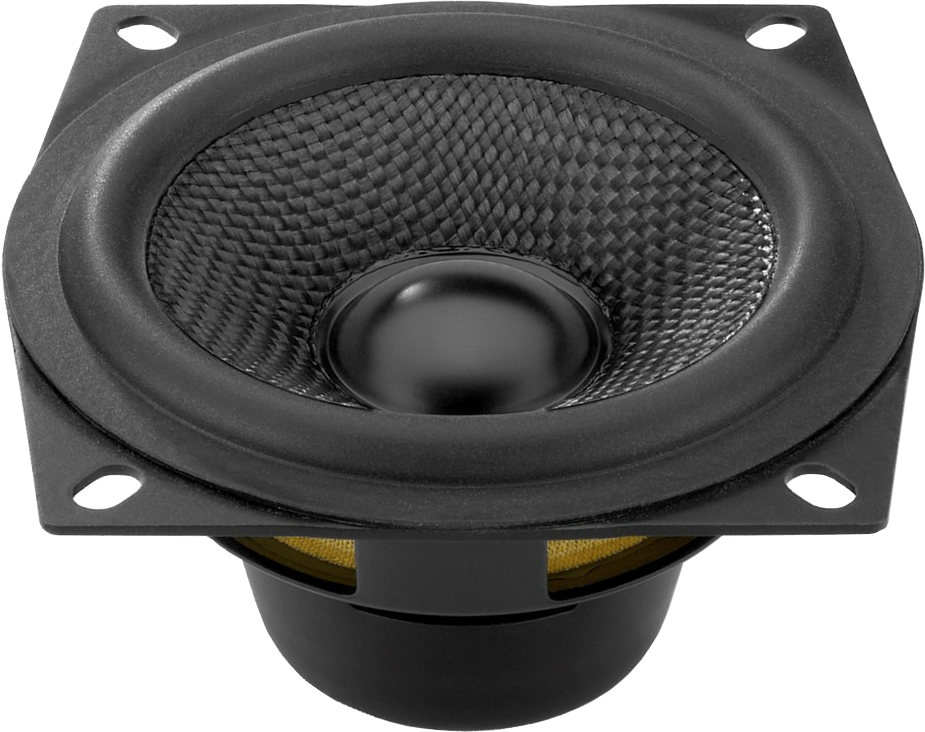

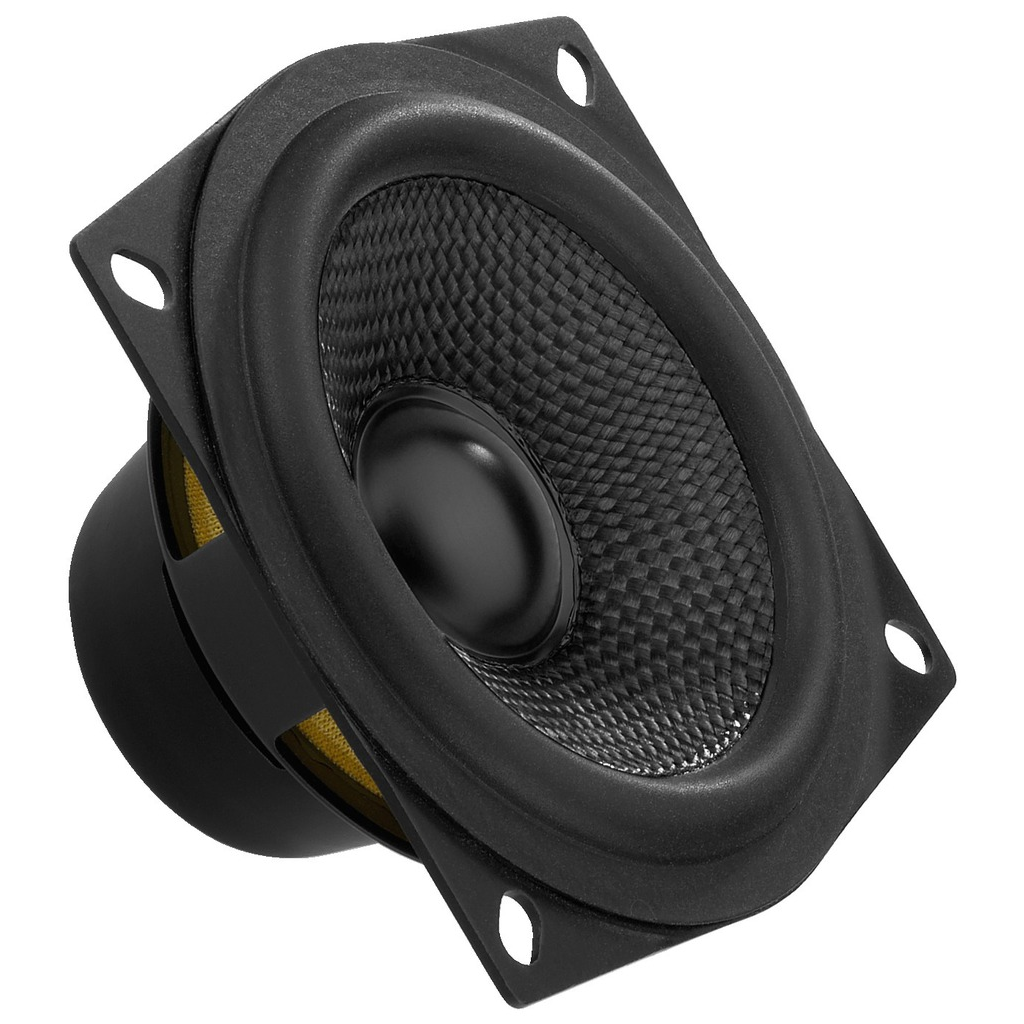

High-quality hi-fi full range speakers, 20 W, 8 Ω (/8) or 4 Ω (/4), with black Kevlar cone

  • Well dampened Kevlar cone of extra low weight
  • Drive system with full air ventilation
  • High-quality NEODYMIUM magnet system with double magnet
  • Specially developed basket also for multiple arrangements
  • High efficiency
  • Small speakers for background PA applications or e.g. rear speakers in home cinema systems
  • Suitable for applications from mid-high range speakers or full range midrange speakers in high-end hi-fi speaker systems to multiple arrangements in column speakers



Specifications

  • power handling (continuous/programme) = 20/50 W

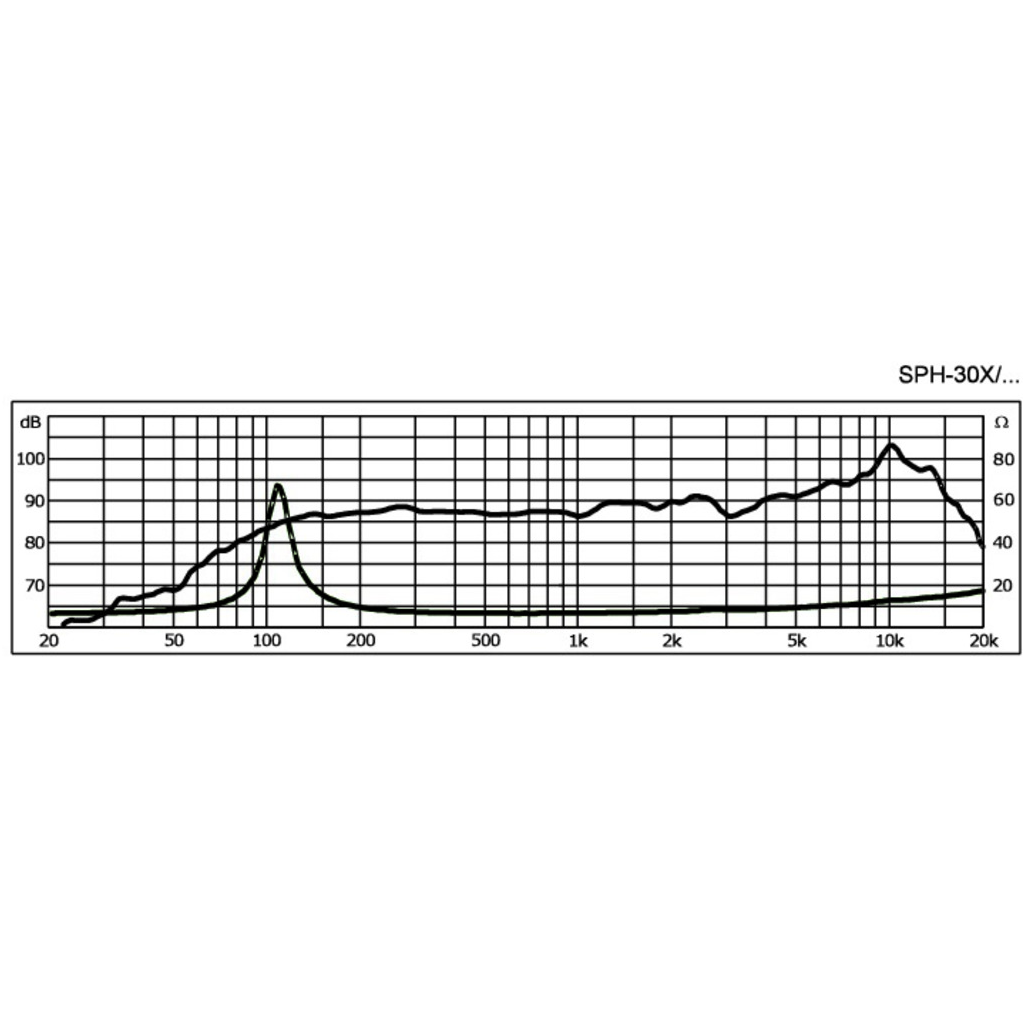

  • frequency range = 200-17000 Hz
  • resonance frequency fs = 105 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 4,48 N/A
  • voice coil inductance L = 0,5 mH
  • effective piston radiating area Sd = 30 cm2
  • effective mechanical mass incl. air load mms = 2,65 g
  • equivalent volume of compliance Vas = 1,3 l
  • total Q factor Qts = 0,46 (Qms=8,59, Qes=0,49)
  • voice coil diameter = 21 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm

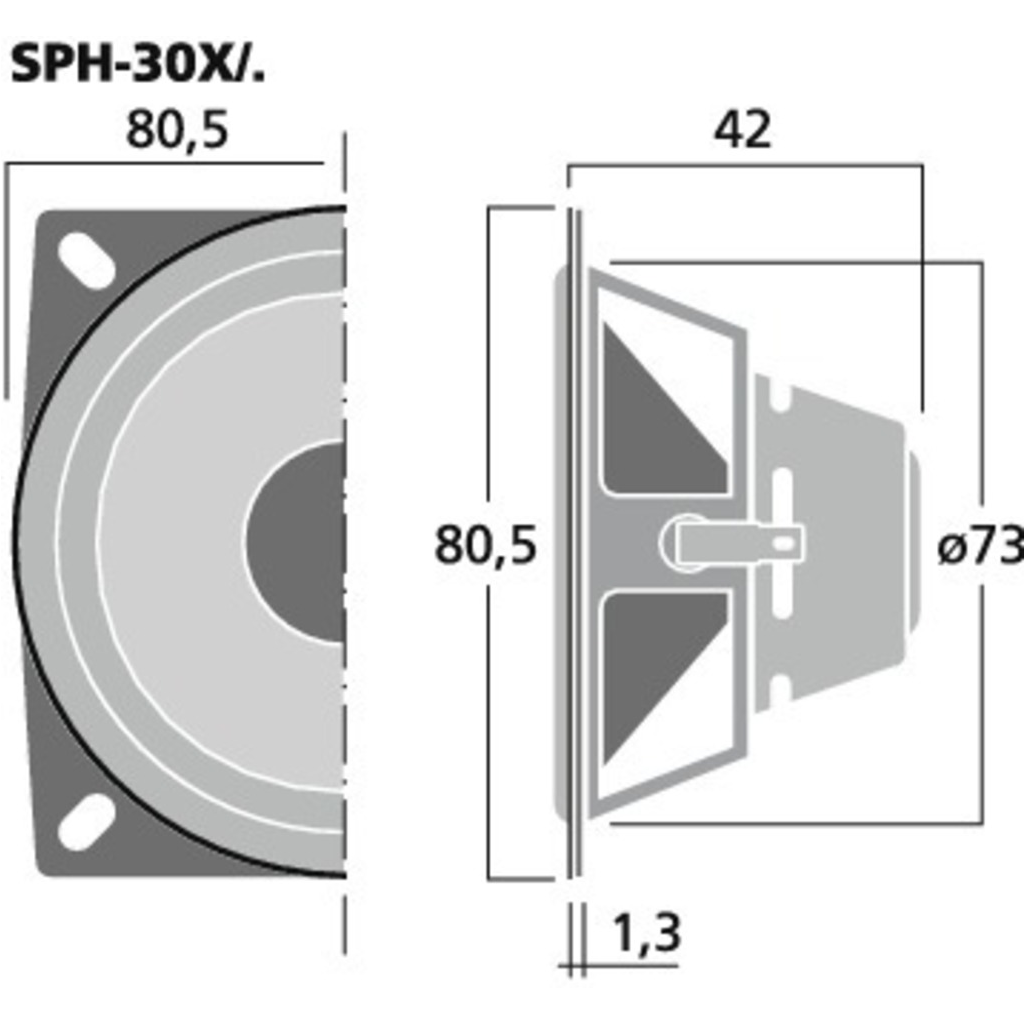

  • mounting diameter d = 73 mm
  • overall diameter d = 80,5x80,5 mm
  • mounting depth (not countersunk) t = 42 mm
