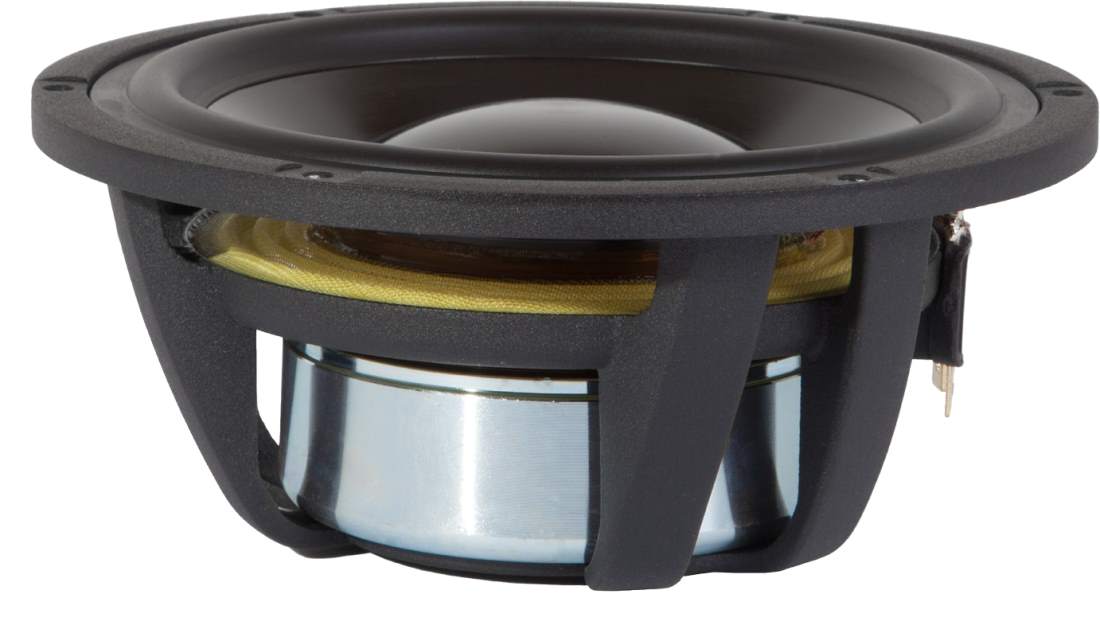

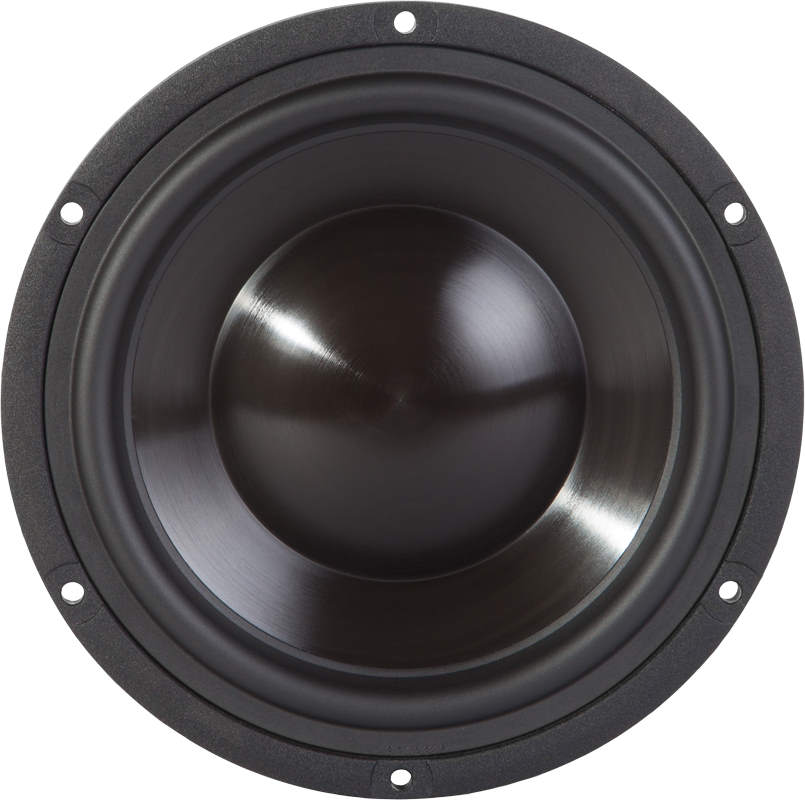

Morel TiCW 638Nd

€333.00 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • 754072
Morel TiCW 638 160mm DPC Cone Woofer   Open Uniflow aluminum diecast chassis for... more
Product information "Morel TiCW 638Nd"

Morel TiCW 638 160mm DPC Cone Woofer



  • Open Uniflow aluminum diecast chassis for reduced reflections
  • Hybrid neodymium/ferrite magnet ferrite system
  • Titanium coil bobbin for low energy storage
  • 3" Hexatech aluminum voice coil
  • High 1,000W instantaneous power handling
  • Coppersleeve Neolin motor



Specifications

  • power handling (continuous/programme) = 150 W
  • frequency range = 45-4000 Hz
  • resonance frequency fs = 45 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 5,4 Ohm
  • force factor BL = 7,5 N/A
  • voice coil inductance L = 0,32 mH
  • effective piston radiating area Sd = 119 cm2
  • effective mechanical mass incl. air load mms = 16,8 g
  • equivalent volume of compliance Vas = 14 l
  • total Q factor Qts = 0,43 (Qms=4,68, Qes=0,47)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 5,25 mm
  • mounting diameter d = 140 mm
  • overall diameter d = 160 mm
  • mounting depth (not countersunk) t = 63 mm
