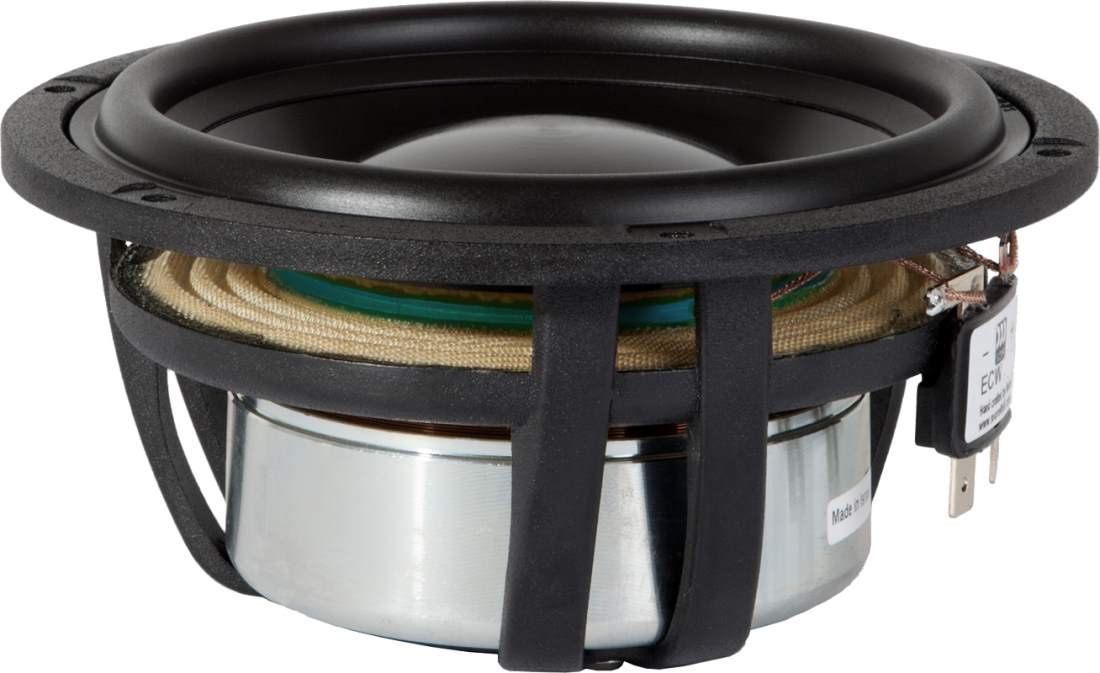

Morel EW 536

Morel EW 536 Elite Series 5` woofers feature large diameter voice coils, open yet strong frames, advanced composite cones, and carefully engineered magnetic circuits. Frequency response is extremely flat and overall definition is superb. Suitable for the most demanding audio reproduction systems. Latest version of Morel's MW-143, HU-531, and HU-521 drivers.

Features

• Uniflow™ Aluminum diecast chassis
• Hybrid™ Neodymium/Ferrite magnet system
• 3″ Large Hexatech™ Aluminum voice coil
• High power handling
• High Xmax
• Low Qts
• Low Fs

Specifications

• power handling (continuous/programme) = 150 W
• frequency range = 32-4000 Hz
• resonance frequency fs = 49 Hz

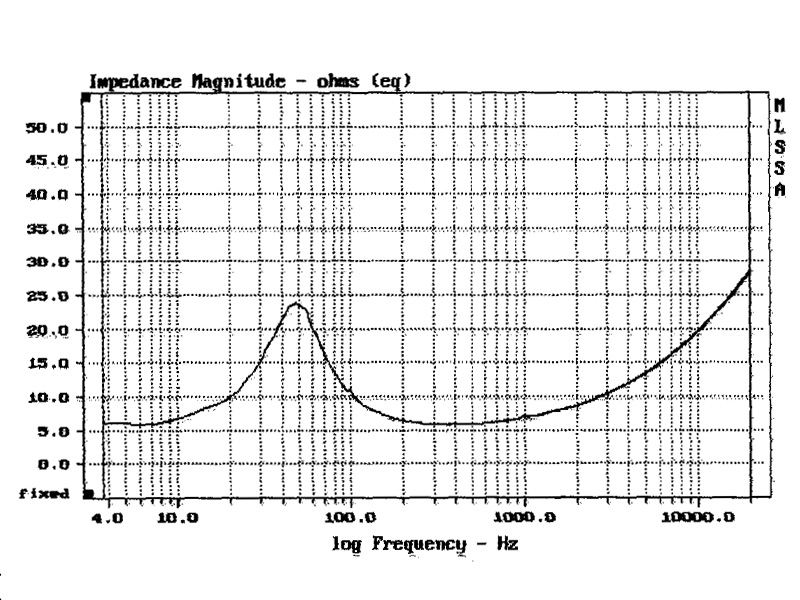

• impedance R = 6 Ohm

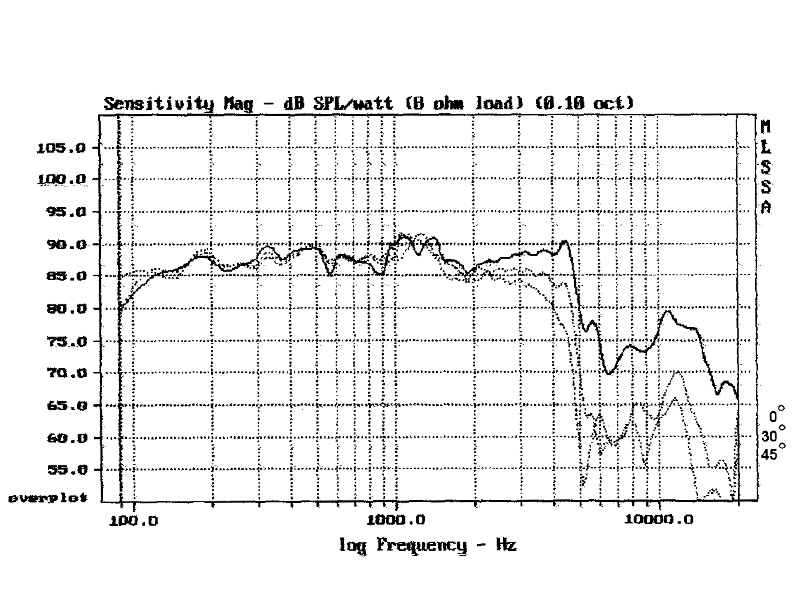

• sound pressure level SPL = 85,5 dB (2,83V; 1m)
• DC resistance Re = 4,2 Ohm
• force factor BL = 7,5 N/A
• voice coil inductance L = 0,26 mH
• effective piston radiating area Sd = 88 cm²
• effective mechanical mass incl. air load mms = 17 g
• equivalent volume of compliance Vas = 6 l
• total Q factor Qts = 0,34 (Qms=1,7, Qes=0,43)
• voice coil diameter = 75 mm
• maximum peak linear excursion vibration x_lin = +/- 5,5 mm

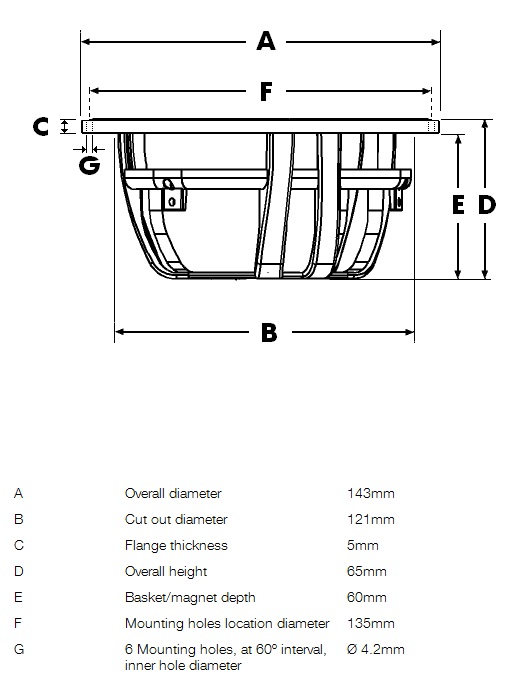

• mounting diameter d = 121 mm
• overall diameter d = 143 mm
• mounting depth (not countersunk) t = 60 mm
