Wavecor WF182BD04

€148.00 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • wf182bd04
Wavecor WF182BD04 7" die cast paper cone mid/woofer 8 Ohm   The 7” transducers... more
Product information "Wavecor WF182BD04"

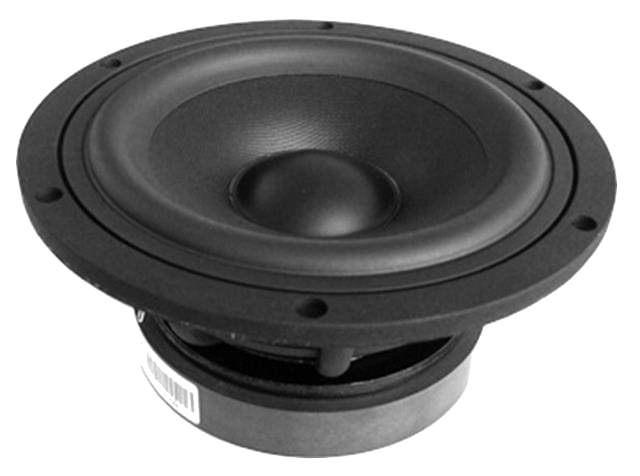

Wavecor WF182BD04 7" die cast paper cone mid/woofer 8 Ohm



The 7” transducers WF182BD03 and WF182BD07 (both 4 ohm) and WF182BD04 and WF182BD08 (both 8 ohm) were designed as high performance bass and midrange units for  monitors and high-end hi-fi speakers. They offer outstanding deep bass performance and dynamic and detailed midrange.


FEATURES

  • Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced 2nd order harmonic distortion
  • Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position
  • Black coated semi-air-dried paper cone
  • Rigid die cast alu chassis with extensive venting for lower air flow speed reducing audible distortion
  • Vented voice coil former for reduced distortion and compression
  • Vented center pole with dual flares for reduced noise level at large cone excursions
  • Heavy-duty black fiber glass voice coil former to reduce mechanical losses resulting in better dynamic performance and low-level details
  • Large motor with 1½” voice coil diameter for better control and power handling
  • Built-in alu field-stabilizing ring for reduced distortion at high levels
  • Low-loss suspension (high Qm) for better reproduction of details and dynamics
  • Black motor parts for better heat transfer to the surrounding air
  • Conex spider for better durability under extreme conditions
  • Gold plated terminals to ensure long-term trouble free connection



SPECIFICATIONS

  • power handling (continuous/programme) = 80 W

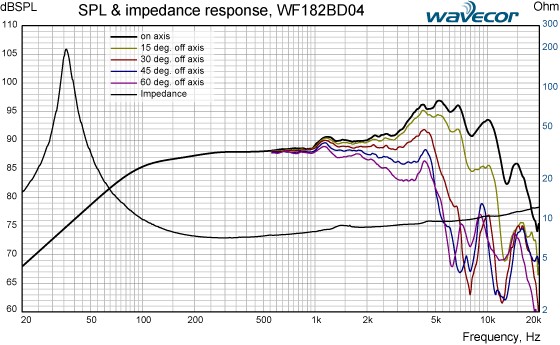

  • frequency range = 30-3000 Hz
  • resonance frequency fs = 33,4 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 8,5 N/A
  • voice coil inductance L = 0,14 mH
  • effective piston radiating area Sd = 131 cm2
  • effective mechanical mass incl. air load mms = 16,1 g
  • equivalent volume of compliance Vas = 32,4 l
  • total Q factor Qts = 0,29 (Qms=8,1, Qes=0,3)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm

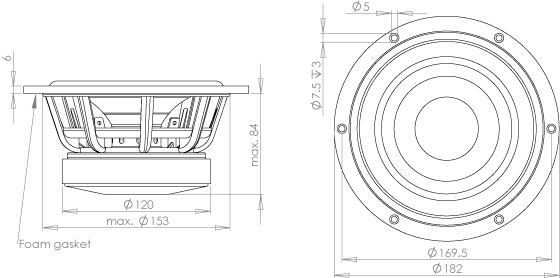

  • mounting diameter d = 153 mm
  • overall diameter d = 182 mm
  • mounting depth (not countersunk) t = 90 mm
  • mass m = 2,3 kg
