SEAS TWS 27/6 (Replacement for Audaphon TWS 25/6) 1 inch tweeter with light silk... more
Product information "SEAS TWS 27/6 (Replacement for Audaphon TWS 25/6)"

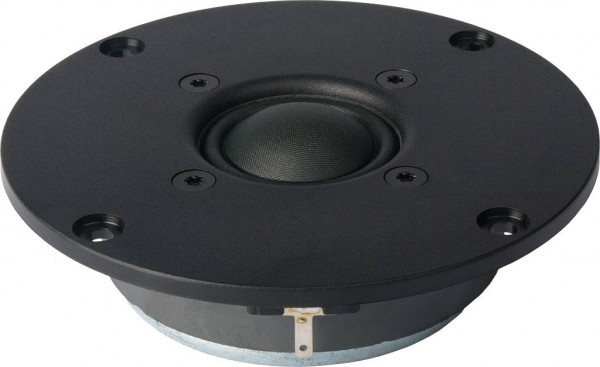

SEAS TWS 27/6 (Replacement for Audaphon TWS 25/6)
1 inch tweeter with light silk diaphragm, high damping textile surround and low distortion.
- power handling (continuous/programme) = 90(ab2,5kHz) W
- frequency range = 600-24000 Hz
- resonance frequency fs = 900 Hz
- impedance R = 6 Ohm
- sound pressure level SPL = 92 dB (2,83V; 1m)
- DC resistance Re = 4,8 Ohm
- force factor BL = 3,8 N/A
- voice coil inductance L = 0,048 mH
- effective piston radiating area Sd = 7,7 cm2
- effective mechanical mass incl. air load mms = 0,28 g
- voice coil diameter = 26 mm
- maximum peak linear excursion vibration xlin = +/- 0,25 mm
- mounting diameter d = 75 mm
- overall diameter d = 104 mm
- mounting depth (not countersunk) t = 24 mm
