Scan-Speak 26W/0-00-00

€114.16 *

Prices incl. VAT plus shipping costs

Delivery time 1-2 Workdays

  • 7262600
Scan-Speak 26W/0-00 10" Passive Radiator   Consider using this passive radiator with... more
Product information "Scan-Speak 26W/0-00-00"

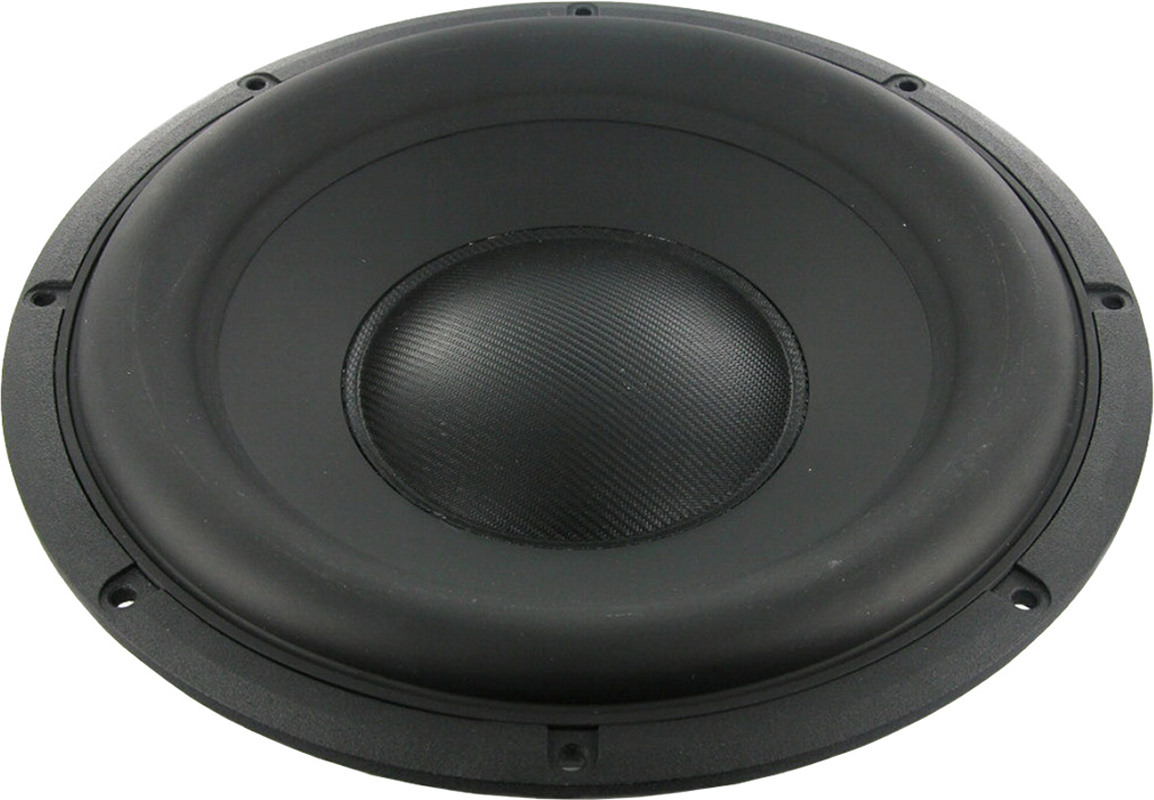

Scan-Speak 26W/0-00 10" Passive Radiator



Consider using this passive radiator with the matching 26W/4558T woofer or with the either the Peerless 830452 or 835016.



Features:

  • Aluminium Cone, Black Anodized
  • Fiberglass/Paper Sandwich Dust Cap, Black Coated
  • Fs 11 Hz
  • 56 mm peak excursion
  • Vented cone / dustcap
  • Nomex spider
  • Low damping rubber surround
  • Adjustable weight



Specifications

  • resonance frequency fs = 11 Hz
  • effective piston radiating area Sd = 352 cm2
  • effective mechanical mass incl. air load mms = 400 g
  • equivalent volume of compliance Vas = 95 l
  • total Q factor Qts = $qts (Qms=13,7, Qes=$qes)
  • maximum peak linear excursion vibration xlin = +/- 28 mm

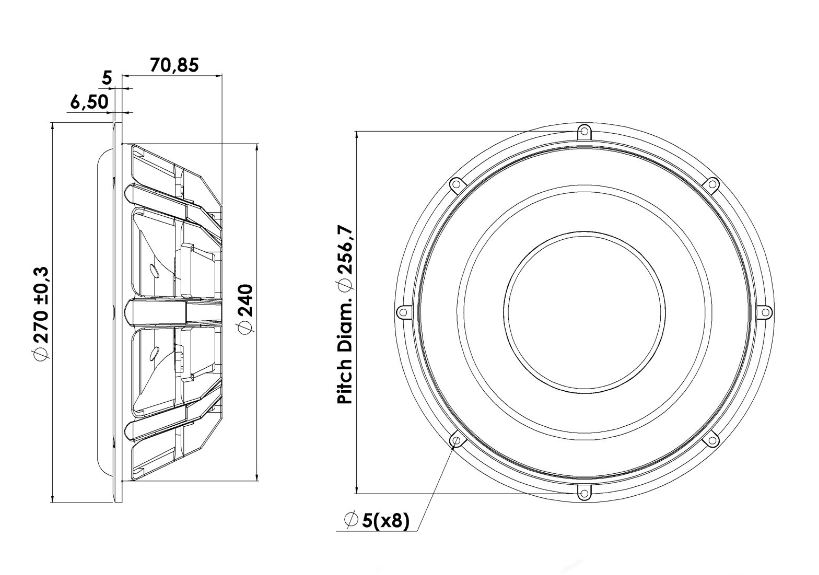

  • mounting diameter d = 240 mm
  • overall diameter d = 270 mm
  • mounting depth (not countersunk) t = 76 mm
