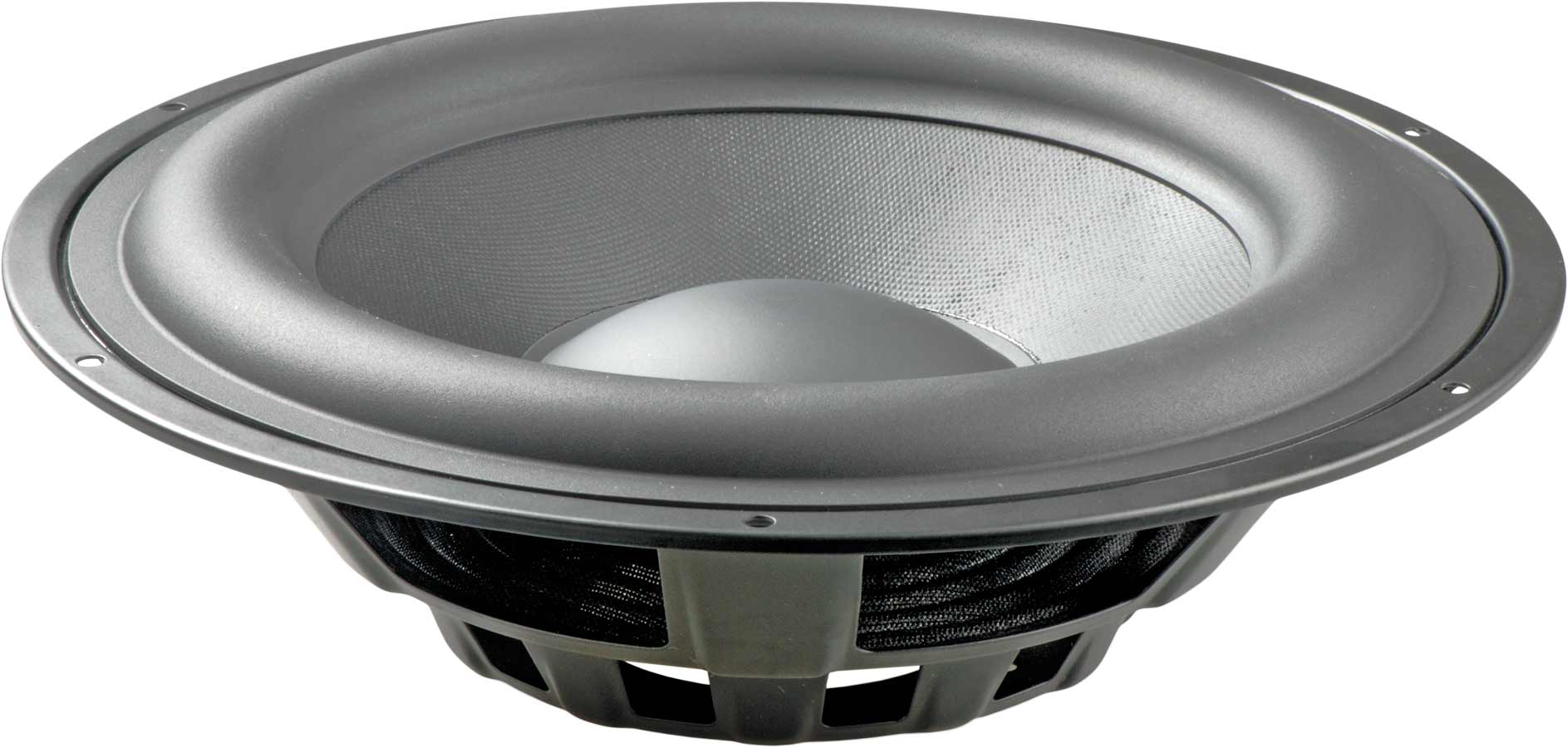

Wavecor PR270WA01 10½" air-dried paper cone passive radiator
The 10.5" passive radiator PR270WA01 was designed for high performance compact subwoofer applications. Optimized for working with the active 10.5" subwoofer SW270WA01 but will function well with any suitable active subwoofer transducers.
FEATURES
Very rigid air dried paper cone to ensure piston motion at high levels
Rigid steel chassis with extensive venting for lower air flow speed reducing audible distortion
Low-loss suspension (high Qm) for better reproduction of details and dynamics
Conex spider for better durability under extreme conditions
Custom tunable by adding one or more of the three extra weights (included)
Specifications
resonance frequency fs = 16,3-26 Hz
effective piston radiating area Sd = 312 cm2
effective mechanical mass incl. air load mms = 112 g
