Visaton F 8 SC 8Ohm

€11.82 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • vi-8028
Visaton F 8 SC  8Ohm   Magnetically shielded 8 cm (3,3") full-range driver... more
Product information "Visaton F 8 SC 8Ohm"

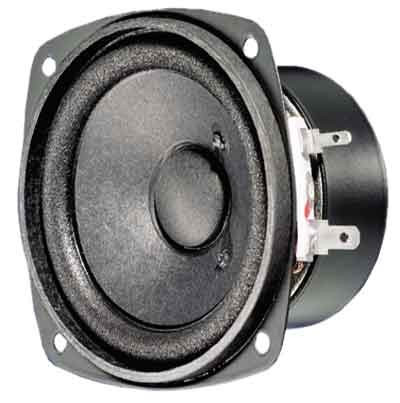

Visaton F 8 SC  8Ohm



Magnetically shielded 8 cm (3,3") full-range driver with balanced frequency response. Particularly suitable for smaller multimedia applications. Very good value for money.

Typical applications:
- Multimedia systems
- Video monitoring screens
- TVs
- Computer terminals

Attributes:
- Moisturised cone
- Metal basket
- Magnetically shielded



Specifications

  • power handling (continuous/programme) = 20/30 W

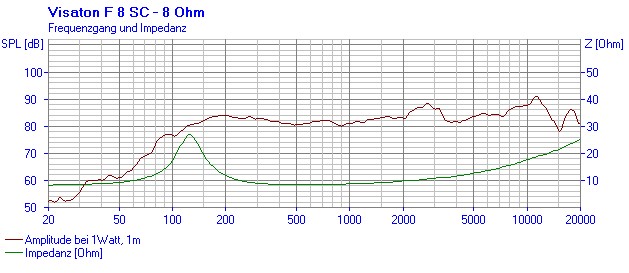

  • frequency range = 80-15000 Hz
  • resonance frequency fs = 103 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 82 dB (2,83V; 1m)
  • DC resistance Re = 3,4 Ohm
  • force factor BL = 2,1 N/A
  • voice coil inductance L = 0,18 mH
  • effective piston radiating area Sd = 30 cm2
  • effective mechanical mass incl. air load mms = 2,2 g
  • equivalent volume of compliance Vas = 1,4 l
  • total Q factor Qts = 1,01 (Qms=3,03, Qes=1,52)
  • voice coil diameter = 20 mm
  • maximum peak linear excursion vibration xlin = +/- 0,8 mm

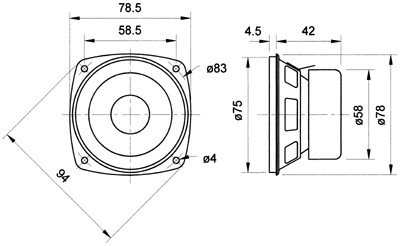

  • mounting diameter d = 78 mm
  • overall diameter d = 94 mm
  • mounting depth (not countersunk) t = 42 mm
