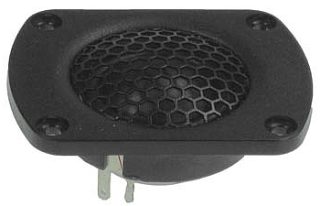

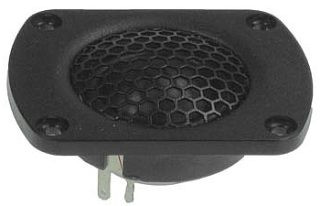

Seas 27TFFNC/CG H1406-04

Seas 27TFFNC/CG H1406-04 compact design neodymium magnet tweeter for high quality speaker designs in small cabinets or automobiles.

Sonolex precoated lightweight fabric diaphragm and suspension allows for very tight production tolerances and high consistency.

Wide roll surround together with a double chamber magnet system results in a low fundamental frequency.

Very low magnetic stray fields make this unit suitable for A/V systems.

The voice coil is immersed in magnetic fluid, allowing high power handling capacity and simplified crossover design.

Specifications

• power handling (continuous/programme) = 80/200 W

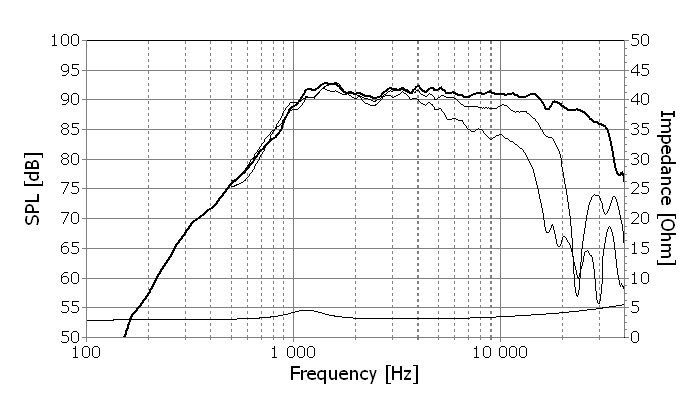

• frequency range = 2500-30000 Hz
• resonance frequency fs = 1170 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 91 dB (2,83V; 1m)
• DC resistance Re = 2,7 Ohm
• force factor BL = 1,9 N/A
• voice coil inductance L = 0,03 mH
• effective piston radiating area Sd = 7,5 cm²
• effective mechanical mass incl. air load mms = 0,26 g
• voice coil diameter = 26 mm
• maximum peak linear excursion vibration x_lin = +/- 0,55 mm

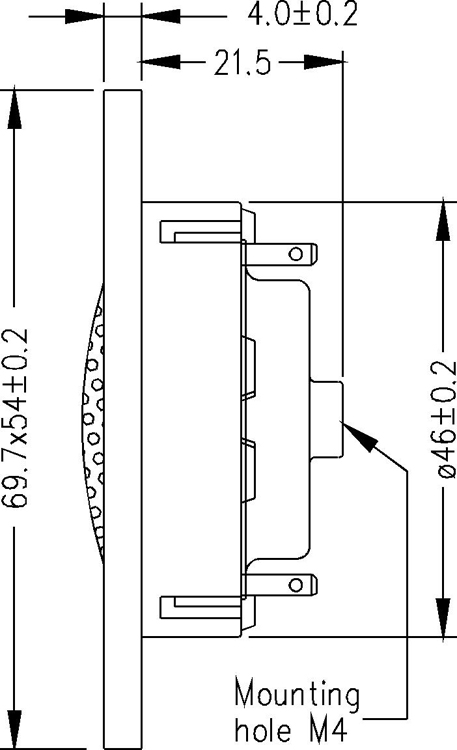

• mounting diameter d = 46 mm
• overall diameter d = 69,7 mm
• mounting depth (not countersunk) t = 21,5 mm
