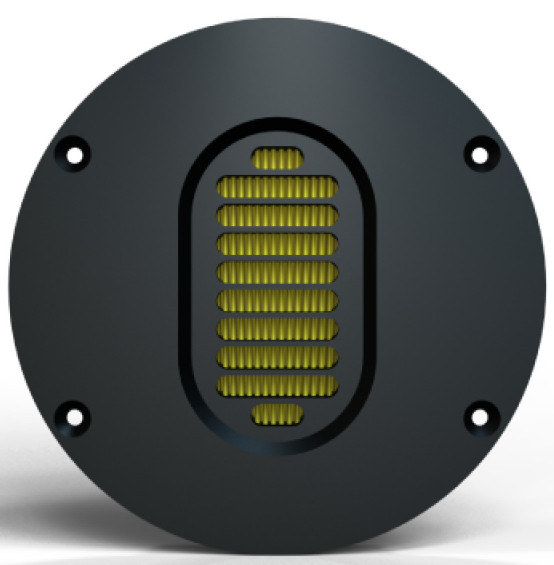

Mundorf AMT23D6.1-C

Mundorf
Preview: Mundorf AMT23D6.1-C Preview: Mundorf AMT23D6.1-C Preview: Mundorf AMT23D6.1-C Preview: Mundorf AMT23D6.1-C Preview: Mundorf AMT23D6.1-C Preview: Mundorf AMT23D6.1-C
Mundorf AMT23D6.1-C
Mundorf AMT23D6.1-C
Mundorf AMT23D6.1-C
Mundorf AMT23D6.1-C
Mundorf AMT23D6.1-C
Mundorf AMT23D6.1-C

€599.00 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • Order number: mu-amt23d6.1c
Description Evaluations 0
Description
Mundorf AMT 23D6.1-C   This dipole is optimized for installation in a baffle. With a... more
Close menu
Product information "Mundorf AMT23D6.1-C"

Mundorf AMT 23D6.1-C



This dipole is optimized for installation in a baffle. With a resonance linearization network a crossover frequency of 2 kHz is possible. The efficiency fits most mid0range drivers.

  • Very low distortion
  • Very flat impedance curve
  • Wide spread directivity
  • Low x-over frequency
  • Swing-out behaviour optimized for dipole use



Specifications

  • power handling (continuous/programme) = 92 W
  • frequency range = 1200-30000 Hz
  • resonance frequency fs = 1500 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 6,9 Ohm
  • effective piston radiating area Sd = 221 cm2

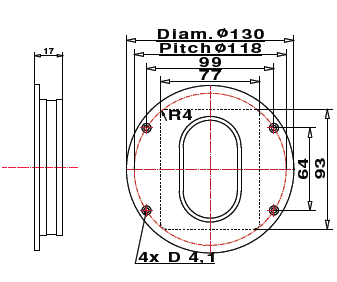

  • overall diameter d = 130 mm
