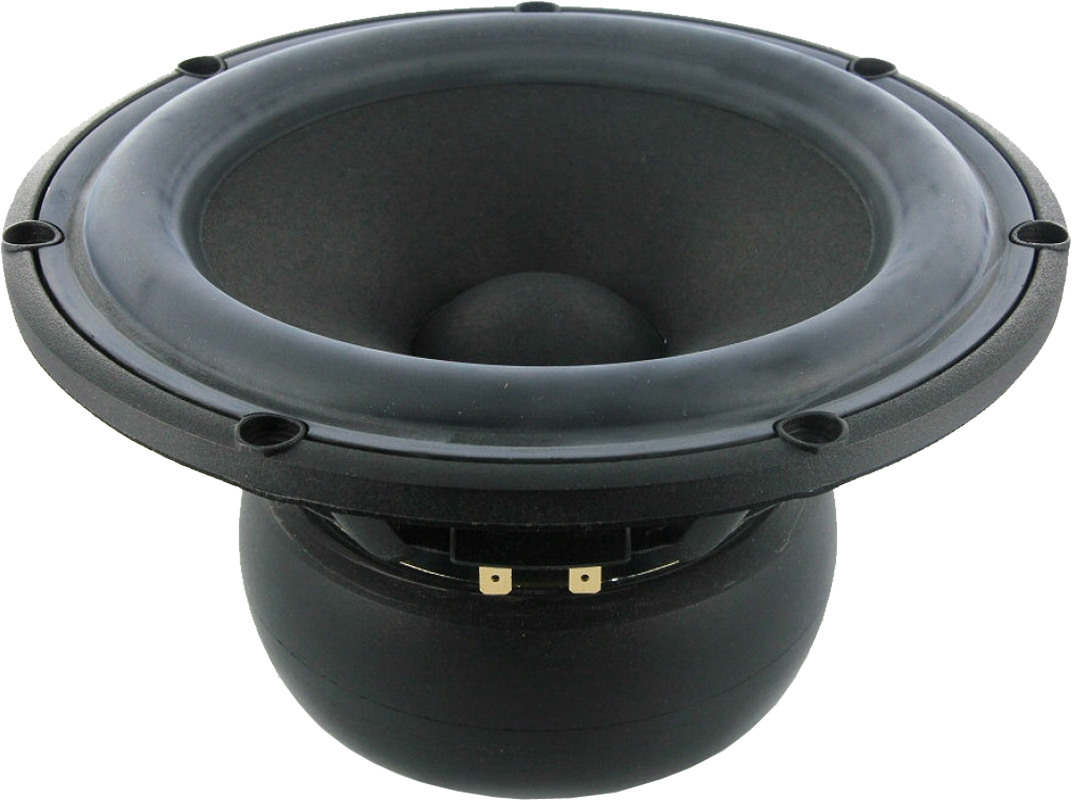

Scan-Speak 22W/8851T00

€311.77 *

Prices incl. VAT plus shipping costs

Delivery time 1-2 Workdays

  • 7388510
The Scan-speak 22W/8851T is a new addition to the Revelator line. This robust 8" woofer was... more
Product information "Scan-Speak 22W/8851T00"

The Scan-speak 22W/8851T is a new addition to the Revelator line. This robust 8" woofer was designed to provide deep and accurate bass in a small enclosure. This woofer features a 2" voice coil on a titanium former, a low loss linear suspension and symmetric drive motor. The deep set hard paper cone is attached to the frame with a minimal reflection rubber surround. The 9mm X-max insures good linear travel.



Specifications

  • power handling (continuous/programme) = 170 W

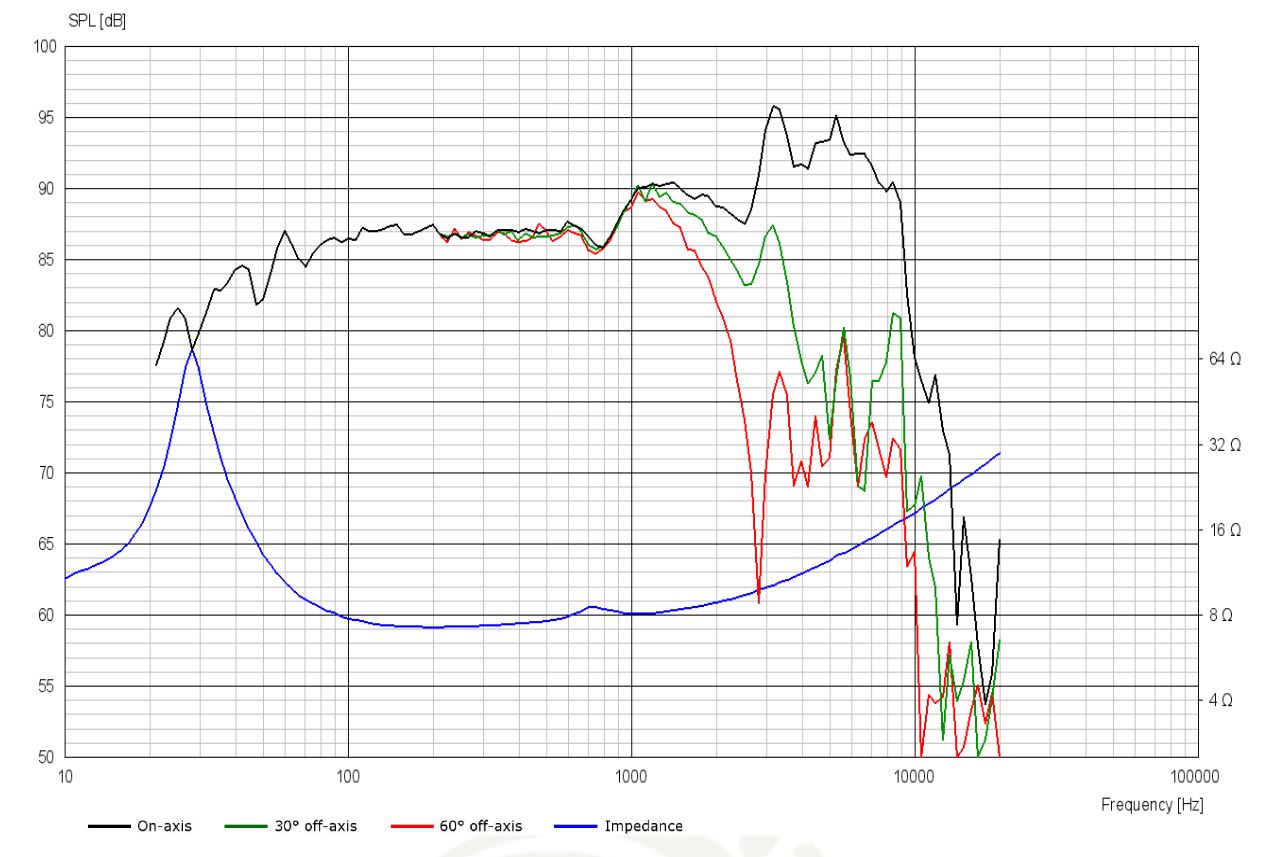

  • frequency range = 20-1500 Hz
  • resonance frequency fs = 21 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 9,9 N/A
  • voice coil inductance L = 0,35 mH
  • effective piston radiating area Sd = 220 cm2
  • effective mechanical mass incl. air load mms = 31 g
  • equivalent volume of compliance Vas = 126 l
  • total Q factor Qts = 0,25 (Qms=5,1, Qes=0,26)
  • voice coil diameter = 50 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm

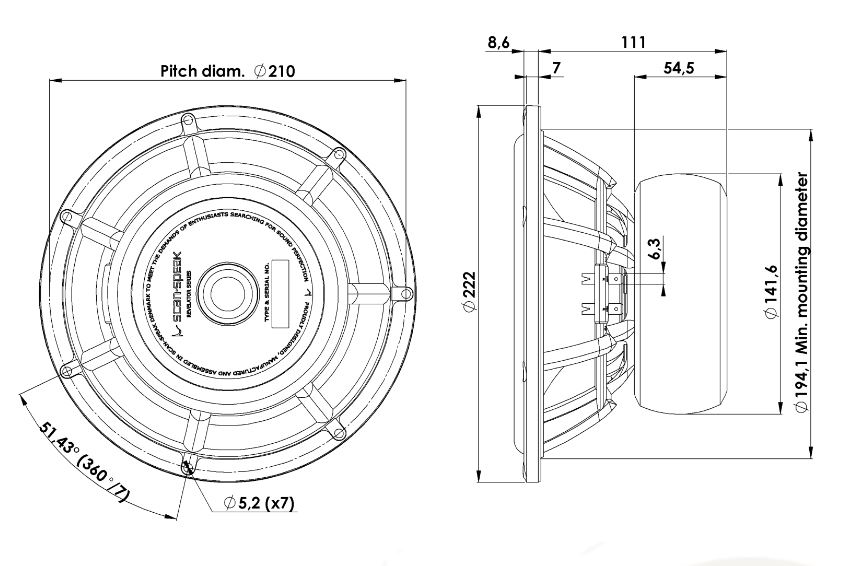

  • mounting diameter d = 194 mm
  • overall diameter d = 222 mm
  • mounting depth (not countersunk) t = 118 mm
