Scan-Speak 18W/4531G00

€197.47 *

Prices incl. VAT plus shipping costs

Delivery time 1-2 Workdays

  • 7345310
Scan-speak 18W/4531G-00  6.5" Revelator mid/woofer. It features a non-resonant cone and... more
Product information "Scan-Speak 18W/4531G00"

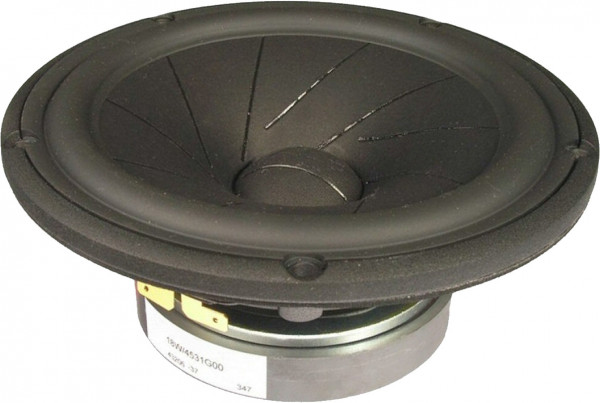

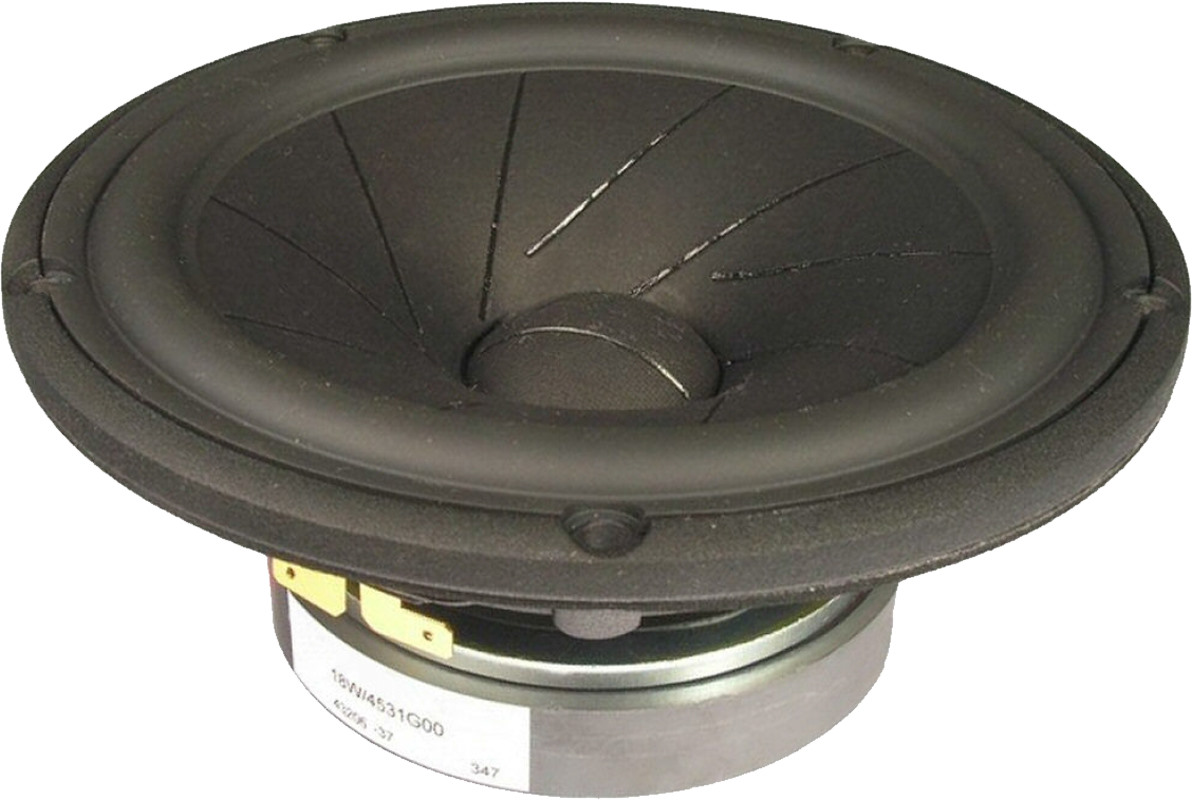

Scan-speak 18W/4531G-00  6.5" Revelator mid/woofer.

It features a non-resonant cone and dust cap structure, dynamic linear suspension, SD-1 magnet system, "Grasshopper" cast chassis with maximized air flow and resonance terminating mounting system. Less resonance in all structures, lower compression and higher linearity, faster termination of excess energy and higher sound pressure capability. The 18W/4531G should have an F3 of about 65Hz sealed and 40Hz vented. Also an excellent choice for high end autosound applications.



Specifications

  • power handling (continuous/programme) = 60 W

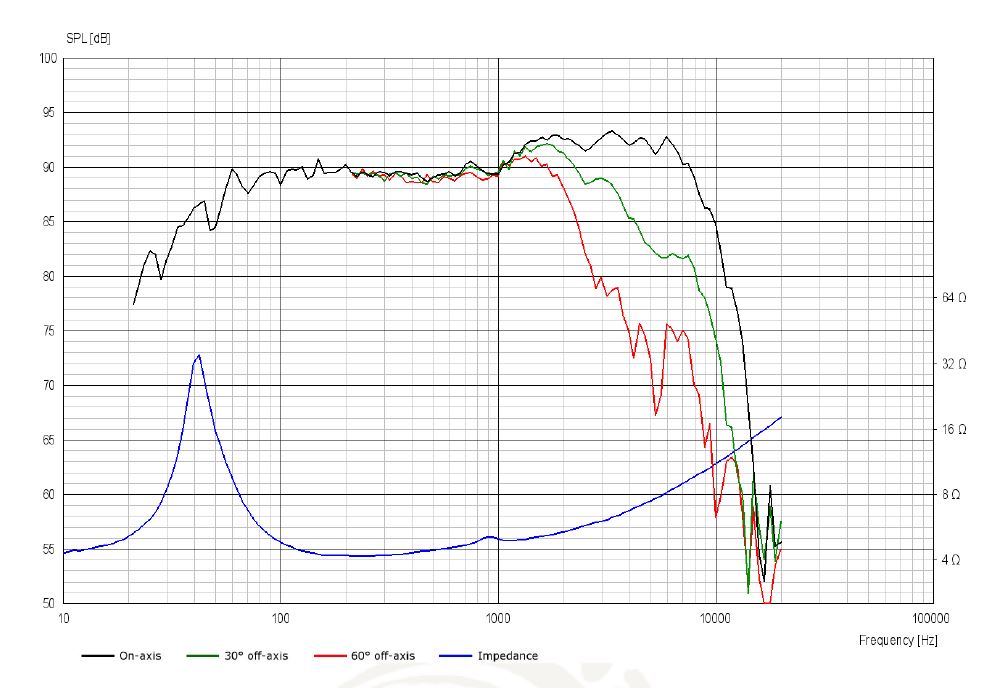

  • frequency range = 30-5000 Hz
  • resonance frequency fs = 33 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 3,4 Ohm
  • force factor BL = 5,7 N/A
  • voice coil inductance L = 0,3 mH
  • effective piston radiating area Sd = 150 cm2
  • effective mechanical mass incl. air load mms = 17,5 g
  • equivalent volume of compliance Vas = 41,9 l
  • total Q factor Qts = 0,35 (Qms=5,2, Qes=0,38)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 6,5 mm

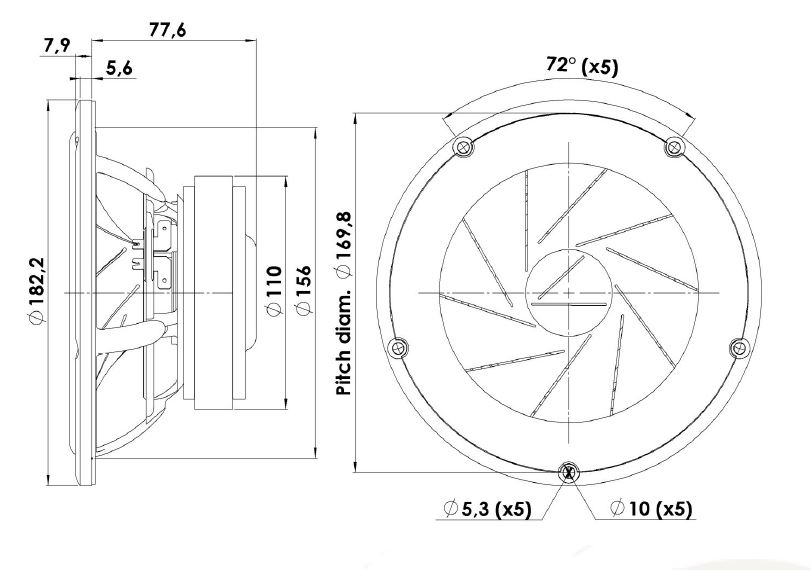

  • mounting diameter d = 156 mm
  • overall diameter d = 182,2 mm
  • mounting depth (not countersunk) t = 83,2 mm
