Visaton AL 170

€115.24 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • vi-1302
Visaton AL 170   17 cm (6.5") High-End low midrange driver with stiff, anodized... more
Product information "Visaton AL 170"

Visaton AL 170



17 cm (6.5") High-End low midrange driver with stiff, anodized aluminium cone, solid aluminium die-cast basket and elastic rubber surround. Extremely low electrical and mechanical losses due to vented pole plate, vented damper and capton voice-coil. Extremely long cone displacement due to long stroke voice coil. Suitable as low-midrange driver for 2-, 3- and 4-way high-end applications up to 2500 Hz.

Specifications

  • power handling (continuous/programme) = 70/100 W

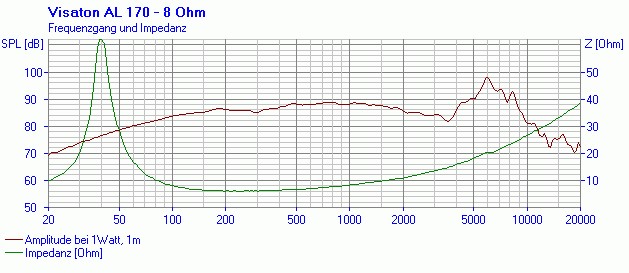

  • frequency range = 45-10000 Hz
  • resonance frequency fs = 38 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 6,93 N/A
  • voice coil inductance L = 0,91 mH
  • effective piston radiating area Sd = 133 cm2
  • effective mechanical mass incl. air load mms = 13 g
  • equivalent volume of compliance Vas = 33 l
  • total Q factor Qts = 0,33 (Qms=4,47, Qes=0,36)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm

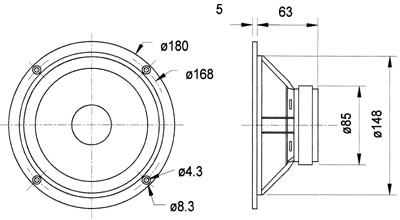

  • mounting diameter d = 148 mm
  • overall diameter d = 180 mm
  • mounting depth (not countersunk) t = 63 mm
