Product information "Tangband W8-1772"

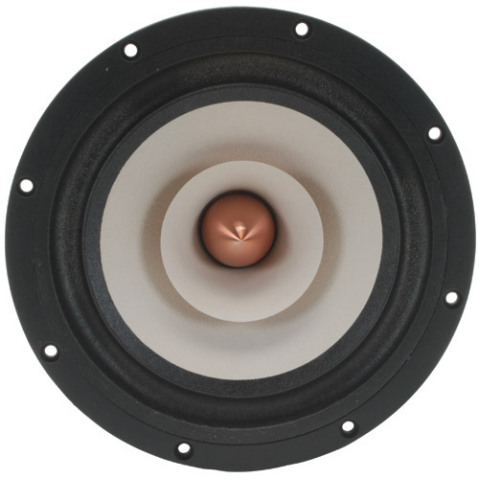

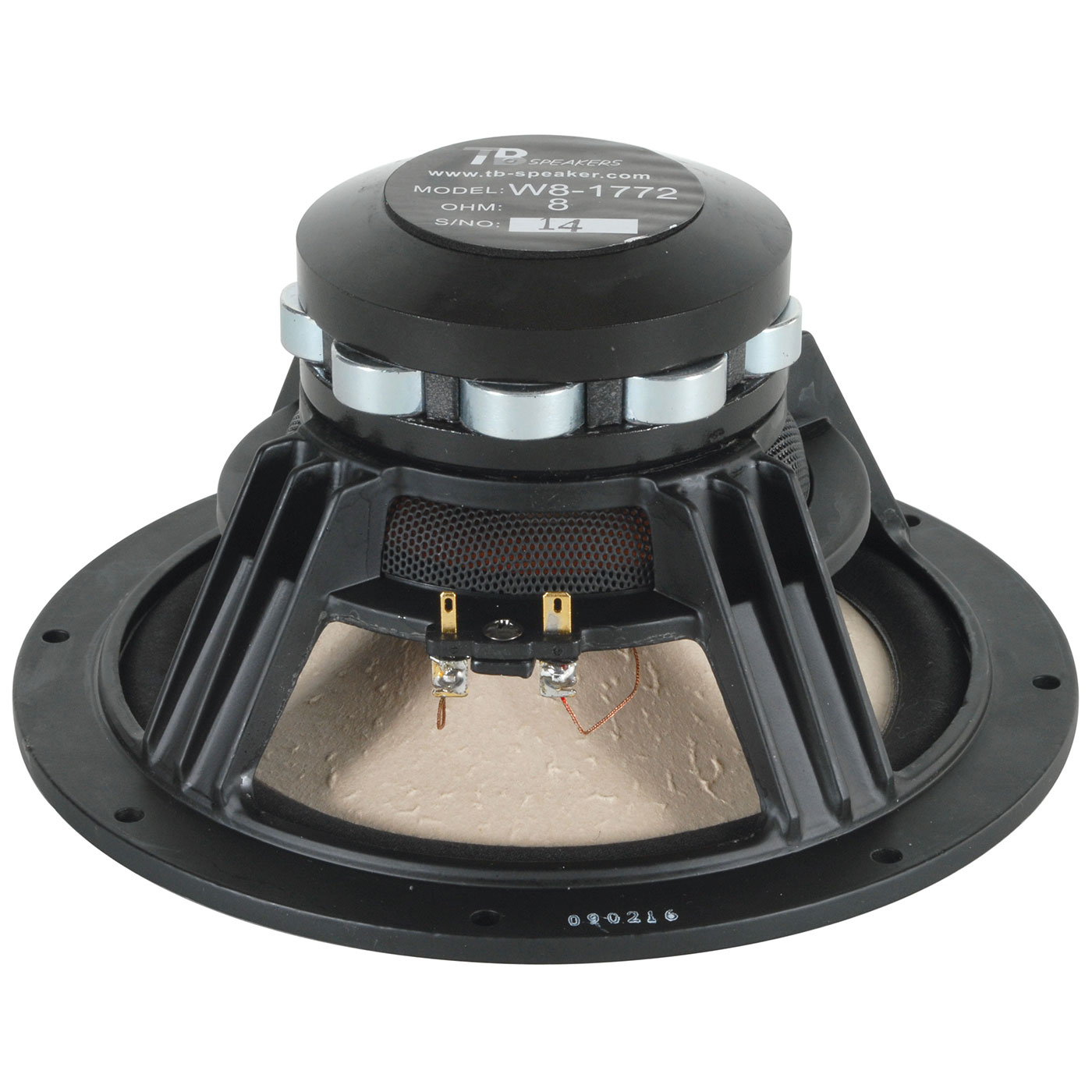

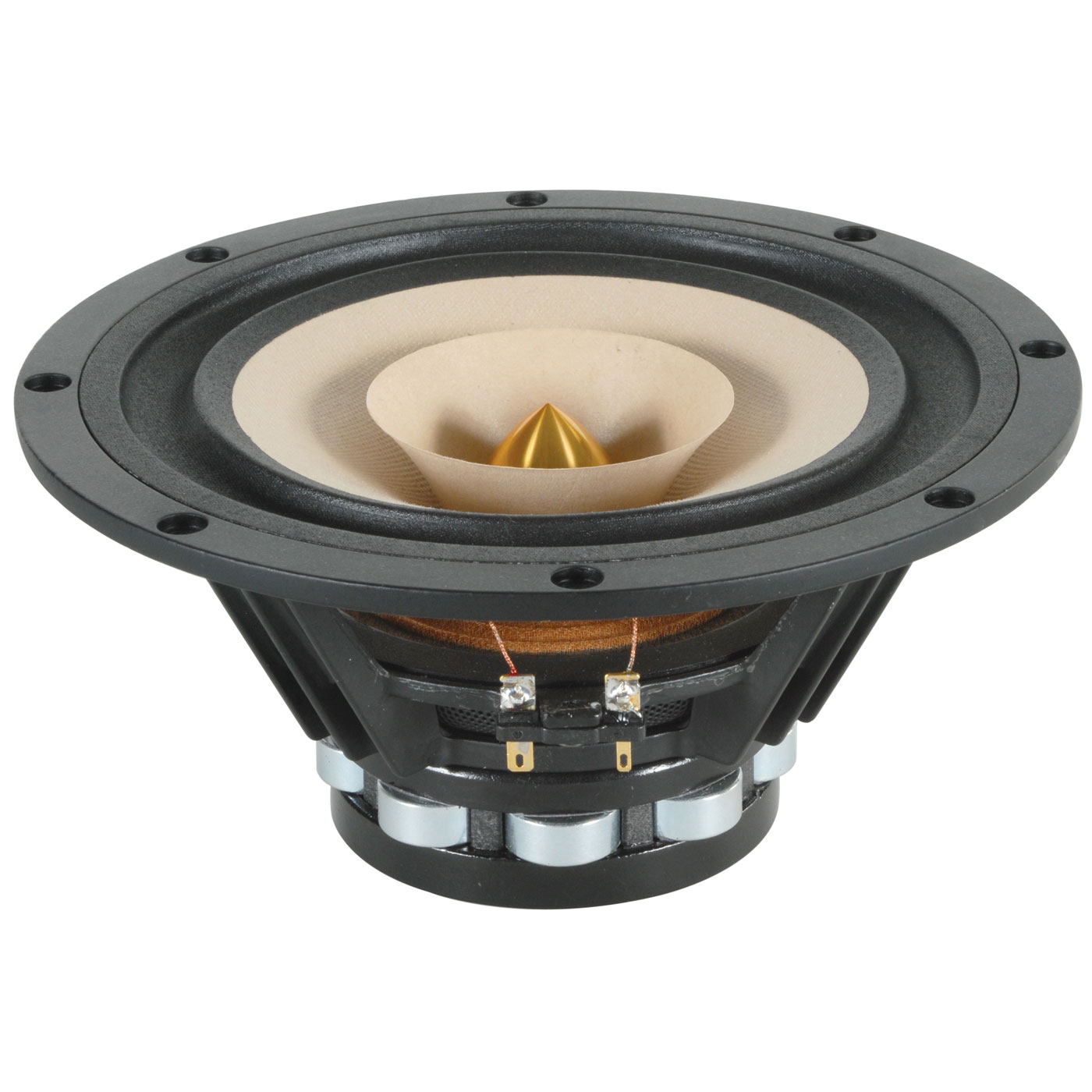

Tang Band's W8-1772 full range driver features a sturdy cast frame, multiple-element neodymium magnet system, paper cone, and cloth half-roll surround. A precisely machined integral plug prevents phase cancellations and improves high frequency extension and dispersion. The underhung 1-1/2" voice coil reduces second and third harmonic distortion while still delivering high efficiency (95 dB 1W/1m ) and 3 mm of Xmax. Designed for point source/full range applications.
DIAPHRAGM MTL | Paper |
SURROUND MTL | Fabric |
NOMINAL IMPEDANCE | 8 Ohm |
DCR IMPEDANCE | 6.8 Ohm |
SENSITIVITY 1W/1m | 95 dB |

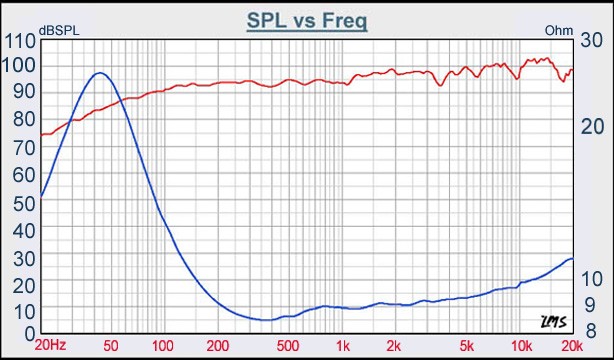

FREQUENCY RESPONSE | 42-20K Hz |
FREE AIR RESONANCE | 42 Hz |
VOICE COIL DIAMETER | 38.5 mm |
AIR GAP HEIGHT | 10 mm |
RATED POWER INPUT | 30 W |
MAXIMUM POWER INPUT | 60 W |
FORCE FACTOR, BL | 7.12 TM |
MAGNET WEIGHT ( oz) | Neodymium |
MOVING MASS | 10.11 g |
FERRO FLUID ENHANCED | No |
SUSPENSION COMPL. | 1374 uMN-1 |
EFFEC.PISTON AREA | 0.022 M2 |
Levc | 0.009 mH |
Zo | 26 ohm |
X-max | 3 mm |
Vas | 94.45 Litr. |
Qts | 0.27 |
Qms | 1.02 |
Qes | 0.36 |
