Eton 5-212/C8/25 Hex

€183.54 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • 1381326
5“ Bass-Midrange driver for multiple usage, 3-layer Hexacone Sandwich cone,fast and detailed... more
Product information "Eton 5-212/C8/25 Hex"

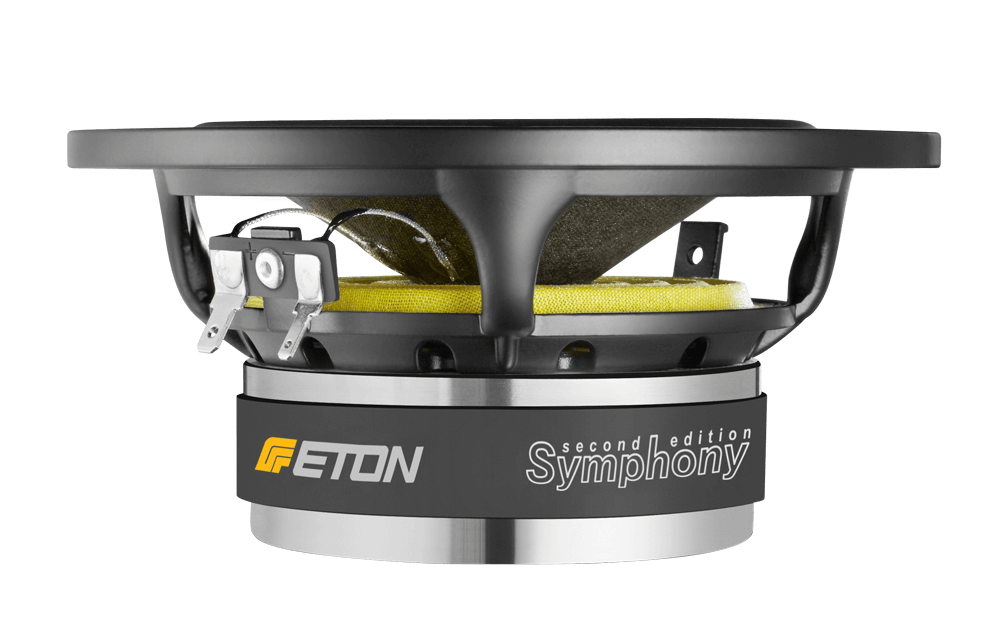

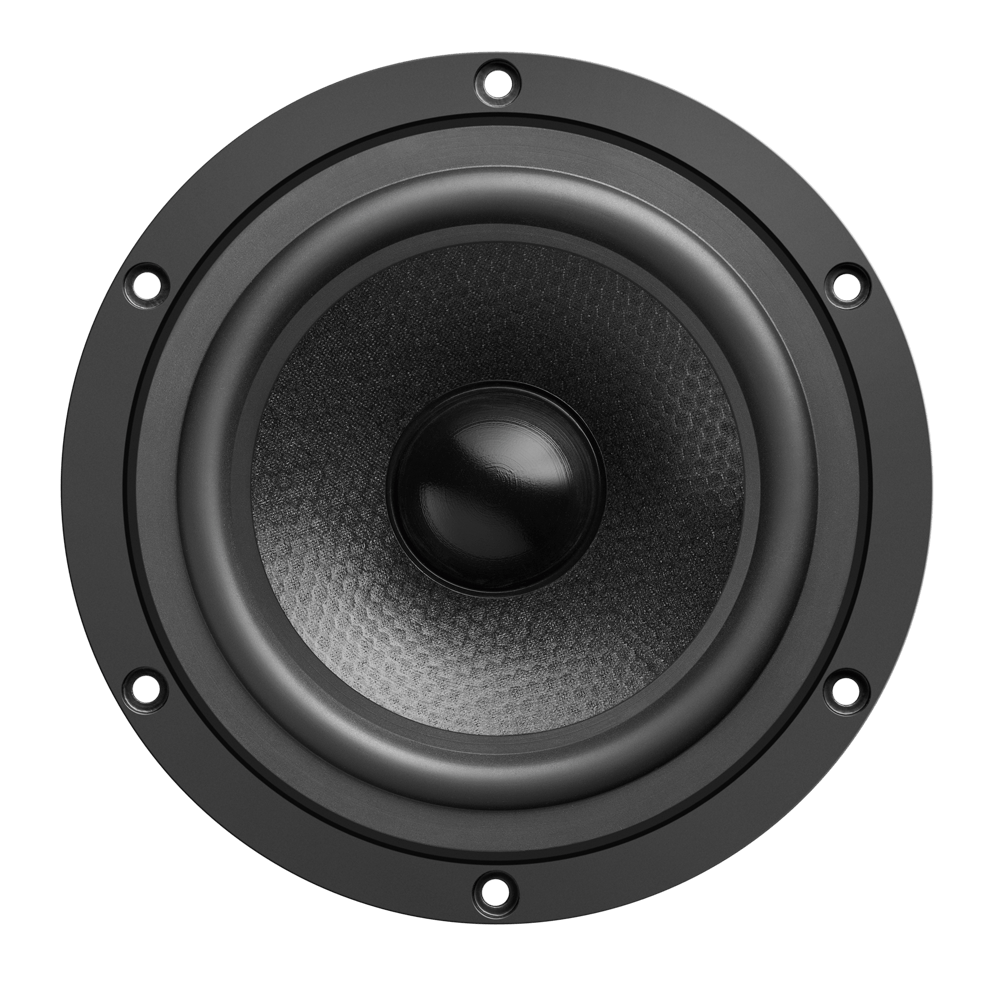

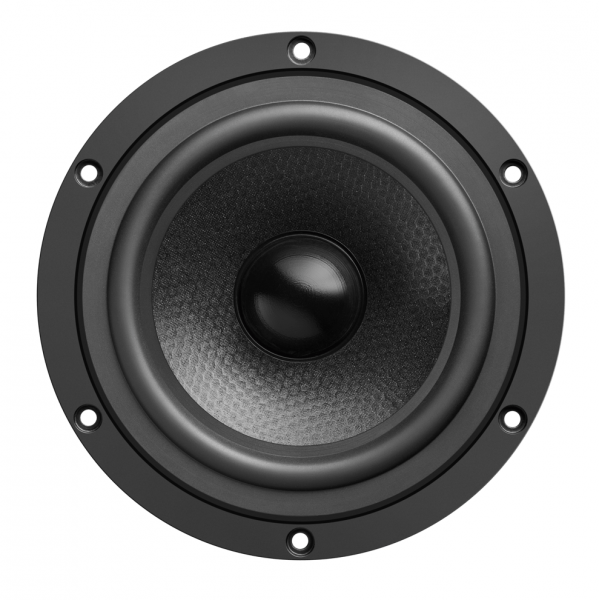

5“ Bass-Midrange driver for multiple usage, 3-layer Hexacone Sandwich cone,fast and detailed repro-duction, authentic staging,homogeneous uncolored sound performance.



Specifications

  • power handling (continuous/programme) = 50 W

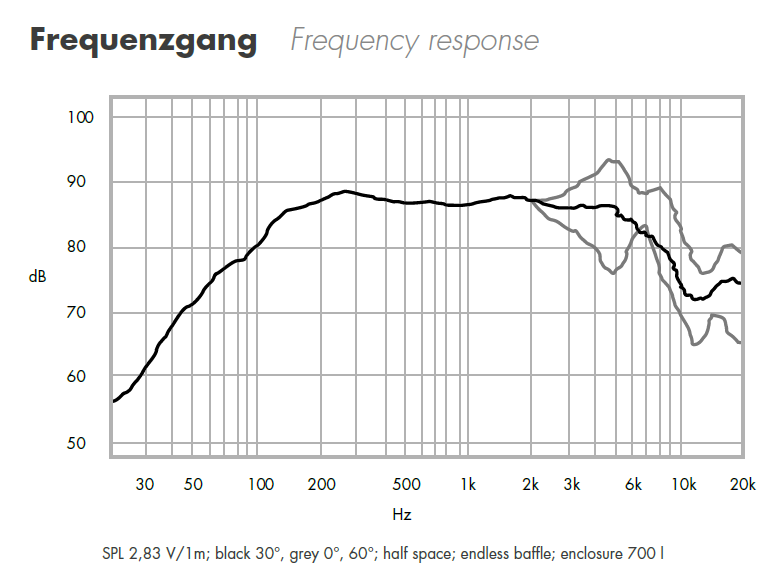

  • frequency range = 50-4000 Hz
  • resonance frequency fs = 52 Hz

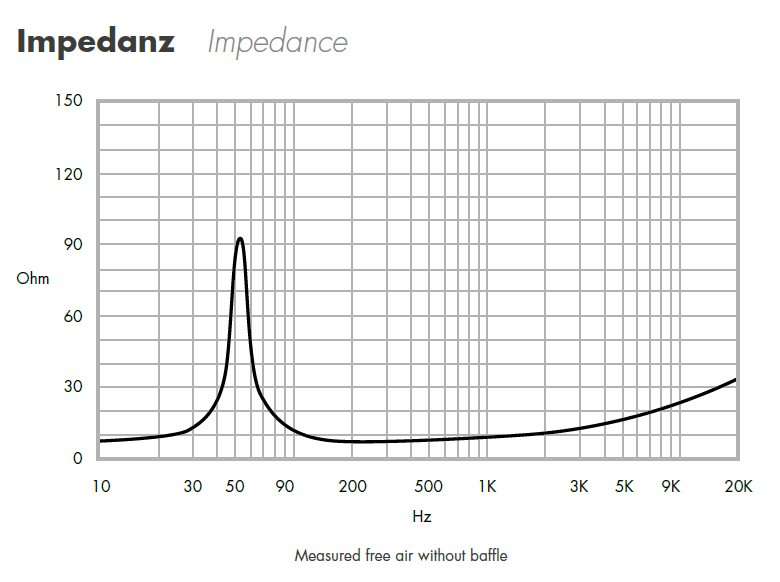

  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 5,4 Ohm
  • force factor BL = 5,8 N/A
  • voice coil inductance L = 0,46 mH
  • effective piston radiating area Sd = 80 cm2
  • effective mechanical mass incl. air load mms = 9,6 g
  • equivalent volume of compliance Vas = 8,5 l
  • total Q factor Qts = 0,43 (Qms=6,83, Qes=0,46)
  • voice coil diameter = 25 mm

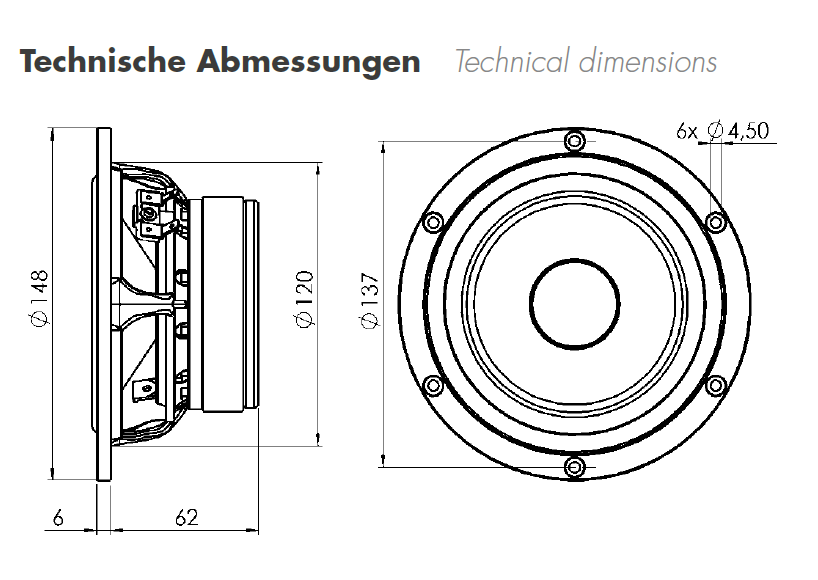

  • mounting diameter d = 120 mm
  • overall diameter d = 148 mm
  • mounting depth (not countersunk) t = 62 mm
