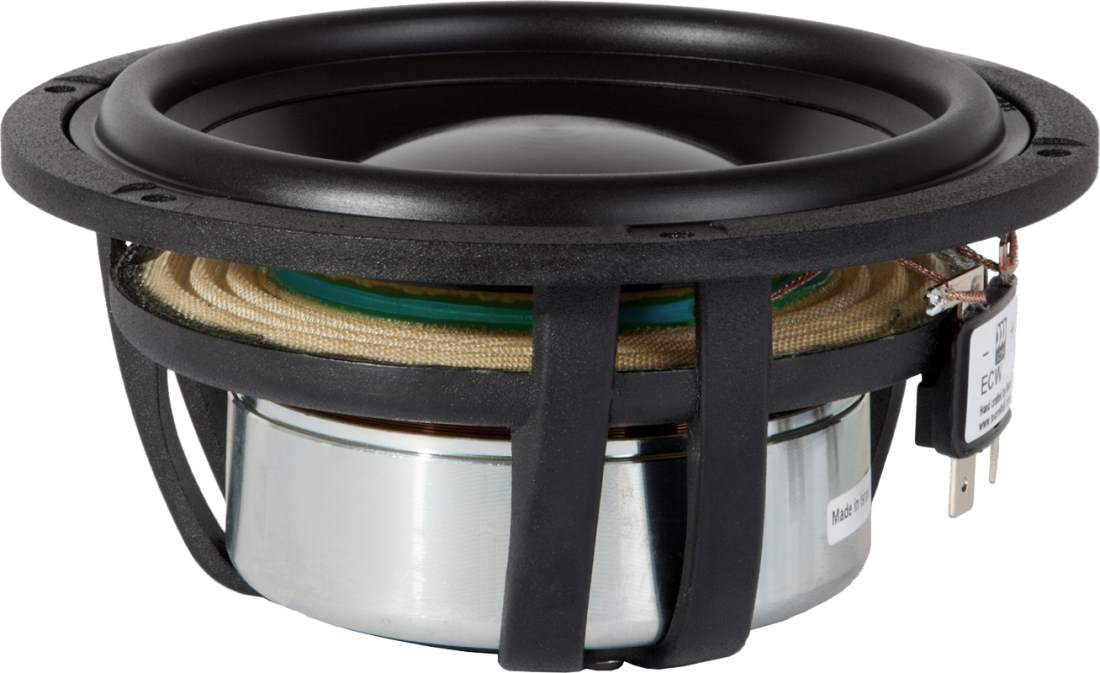

Morel ECW 536

€204.75 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • 1381515
Morel Elite Coppersleeve Series woofers feature large diameter voice coils, open yet strong... more
Product information "Morel ECW 536"

Morel Elite Coppersleeve Series woofers feature large diameter voice coils, open yet strong frames, advanced composite cones, and carefully engineered magnetic circuits. A copper sleeve over the pole piece reduces inductance and extends high frequency response. Suitable for the most demanding audio reproduction systems.



  • DPC (Damped Polymer Composite) cone material
  • Large diameter Hexatech™aluminum voice coil
  • Copper insulated pole piece reduces inductance
  • Hybrid™neodymium/ferrite magnet
  • Uniflow™chassis removes air restrictions



Specifications

  • power handling (continuous/programme) = 150 W
  • frequency range = 50-4000 Hz
  • resonance frequency fs = 45 Hz

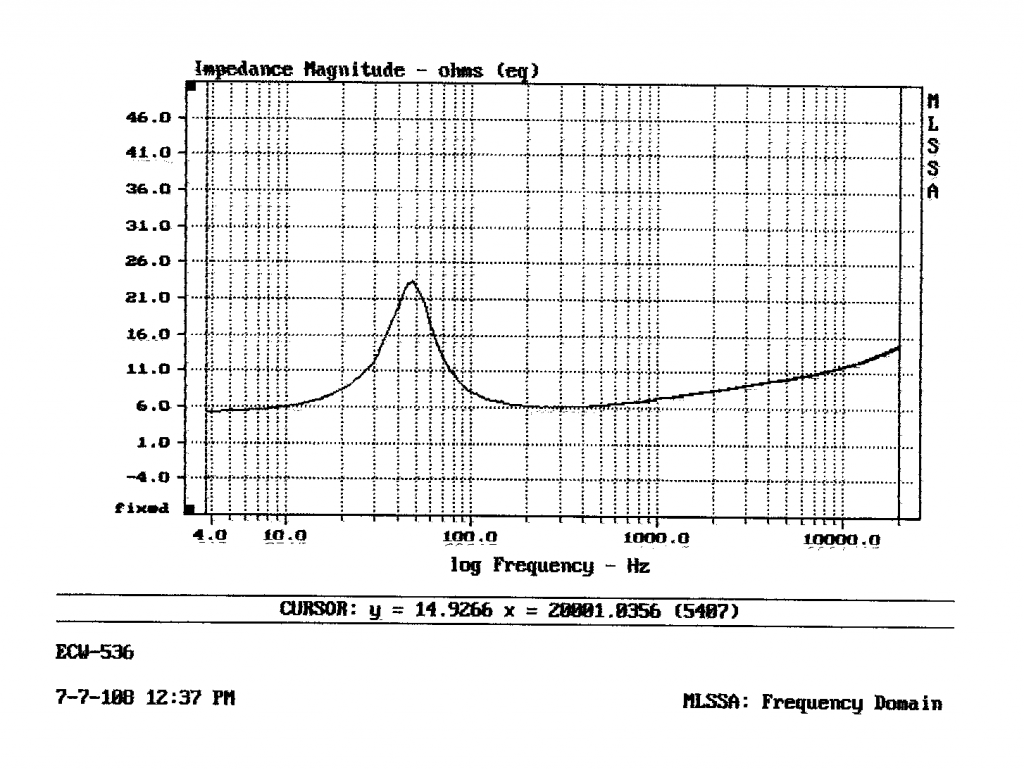

  • impedance R = 6 Ohm

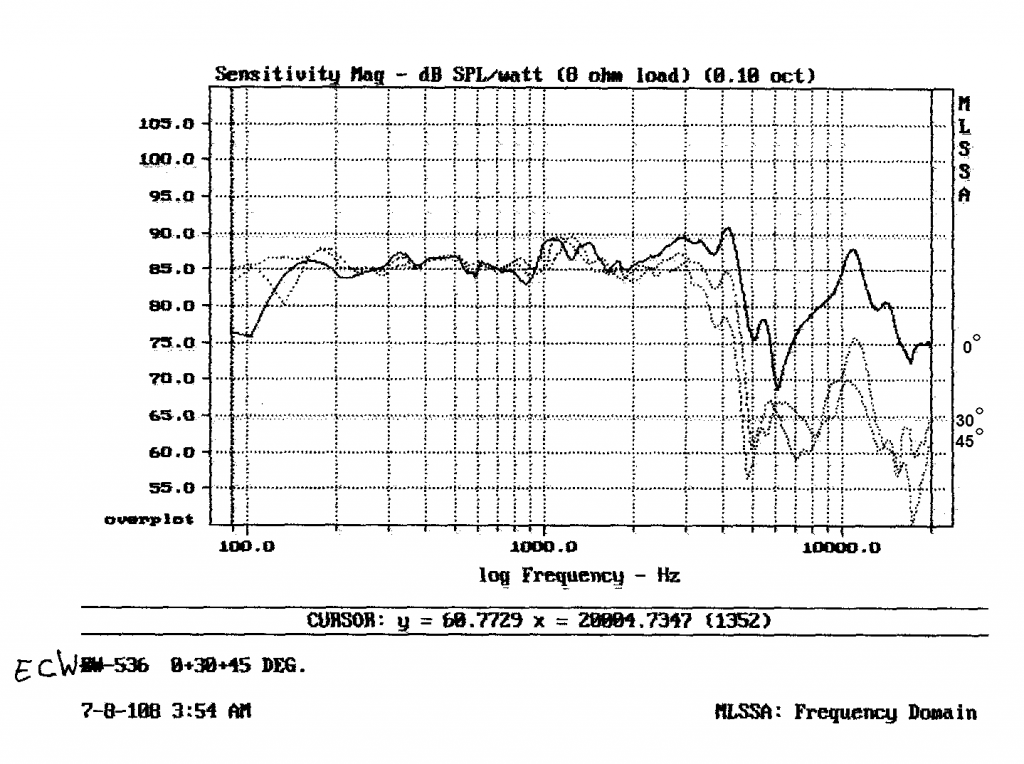

  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 4,5 Ohm
  • force factor BL = 6,83 N/A
  • voice coil inductance L = 0,28 mH
  • effective piston radiating area Sd = 88 cm2
  • effective mechanical mass incl. air load mms = 14,8 g
  • equivalent volume of compliance Vas = 11 l
  • total Q factor Qts = 0,31 (Qms=1,55, Qes=0,39)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm

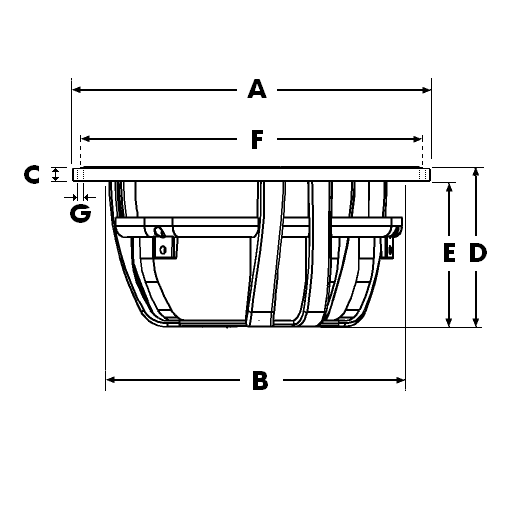

  • mounting diameter d = 121 mm
  • overall diameter d = 143 mm
  • mounting depth (not countersunk) t = 60 mm
