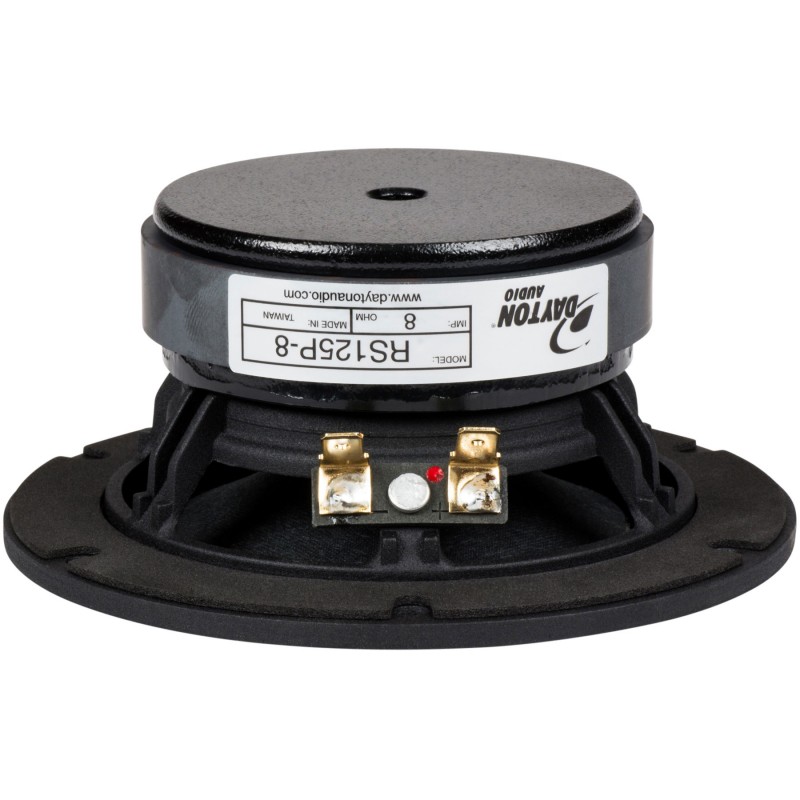

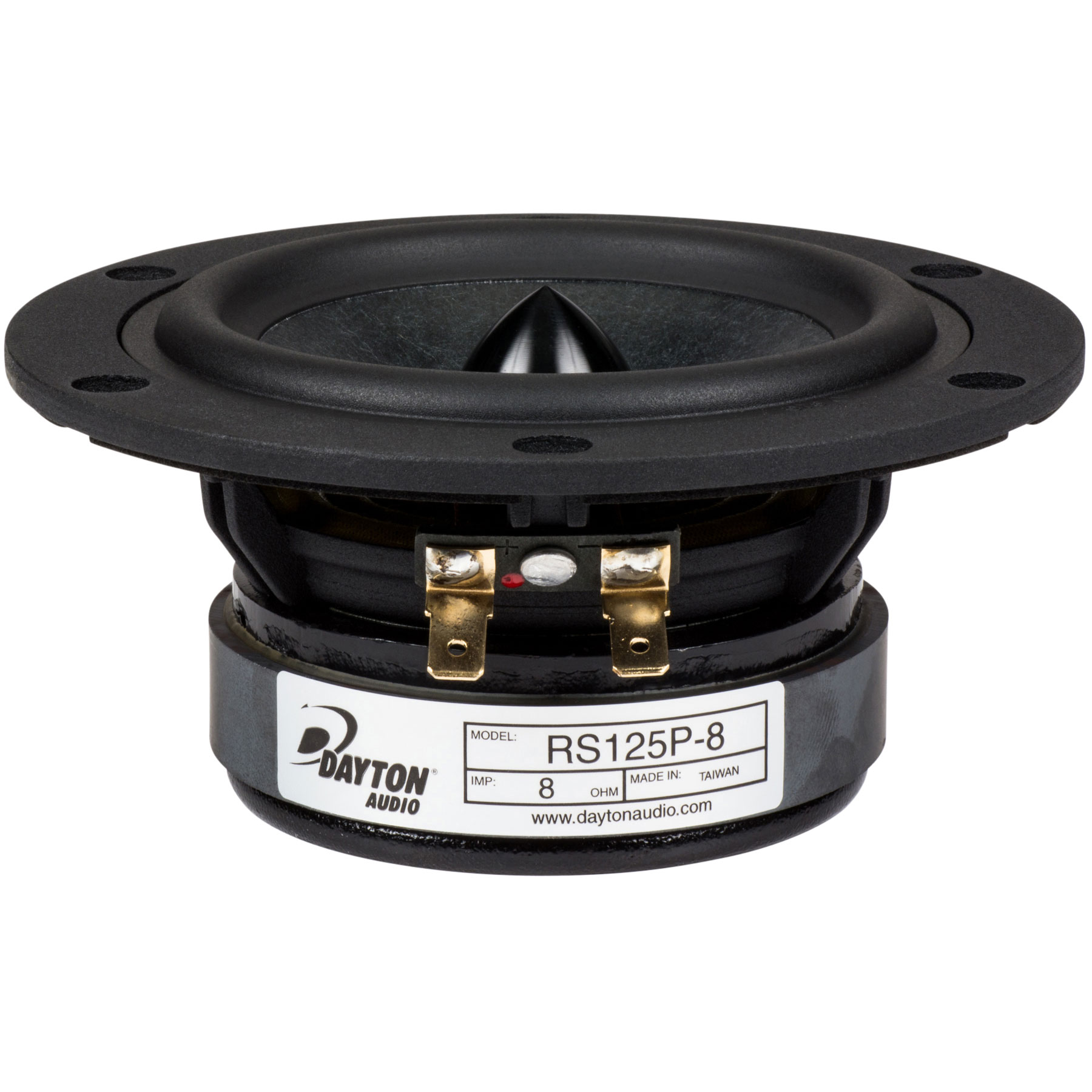

Dayton Audio RS125P-8

€65.32 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • da-rs125p-8
The performance of the original groundbreaking Reference Series from Dayton Audio, now available... more
Product information "Dayton Audio RS125P-8"
The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.


Product Highlights

• Three-part paper composite diaphragm featuring paper, Kevlar®, and glass fibers
• Similar cosmetics and design features as original Reference Series with low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug
• Perfect for use as a woofer, midwoofer, or dedicated midrange driver
• 4 mm of Xmax and 85.8 dB sensitivity


Specifications

Impedance
8 ohms

Re
6.2 ohms

Le
0.62 mH @ 1 kHz

Fs
70 Hz

Qms
2.56

Qes
0.53

Qts
0.44

Mms
5.1g

Cms
1.02 mm/N

Sd
52.8 cm²

Vd
21.1 cm³

BL
5.08 Tm

Vas
3.98 liters

Xmax
4 mm

VC Diameter
25 mm

SPL
87.1 dB @ 2.83V/1m

RMS Power Handling
30 watts

Usable Frequency Range (Hz)
70 - 10,000 Hz
