Dayton Audio ND90-8

€30.48 *

Prices incl. VAT plus shipping costs

Delivery time 10 Workdays

  • da-290-210
Looking for a small driver that punches above its weight class? This radical high performance... more
Product information "Dayton Audio ND90-8"
Looking for a small driver that punches above its weight class? This radical high performance full-range transducer exudes an aura of superiority.
An efficient, low-distortion Neo-Balanced motor is combined with a rigid yet lightweight aluminum diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source speaker applications, or combined in multiples and line arrays.



Product Highlights

• Direct replacement for Aura NS3
• Rubber-edged anodized aluminum alloy cone
• Large excursion capability4 mm Xmax, 20 mm peak
• Self-shielded Neo-Balanced motor structure
• Full-range 80 Hz to 15 kHz performance
• 3/4" 4-layer underhung voice coil with polyimide former
• 20 watts RMS power handling



ND90-8 Specifications

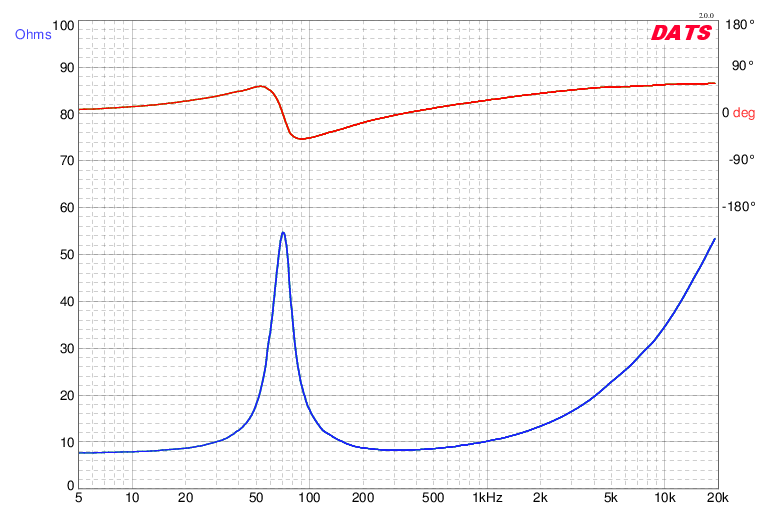

Impedance 8 ohms

Re 7.5 ohms

Le 1.08 mH @ 1 kHz

Fs 70.7 Hz

Qms 4.71

Qes 0.75

Qts 0.65

Mms 4.2g

Cms 1.22 mm/N

Sd 31.2 cm²

Vd 12.5 cm³

BL 4.3 Tm

Vas 1.77 liters

Xmax 4.0 mm

VC Diameter 19 mm

SPL 81.4 dB @ 2.83V/1m

RMS Power Handling 20 watts

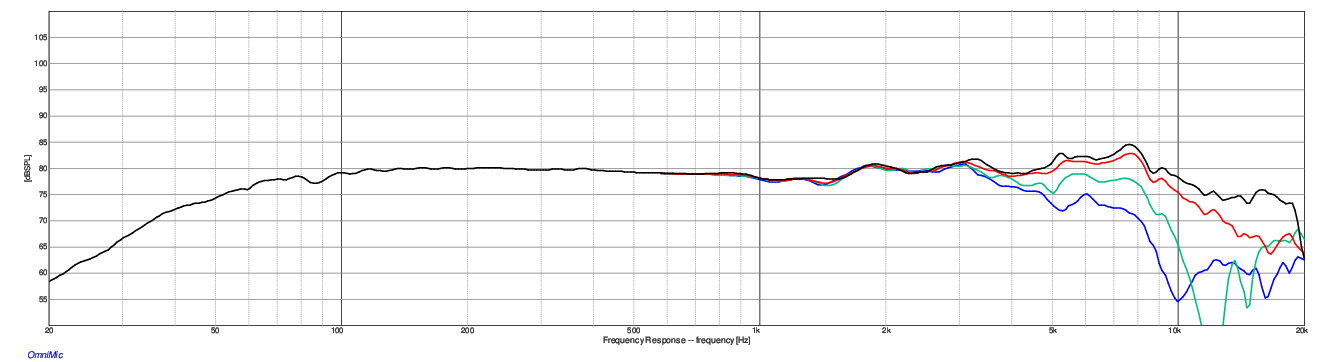

Usable Frequency Range (Hz) 80 - 15,000 Hz
